Grille: Service and Repair

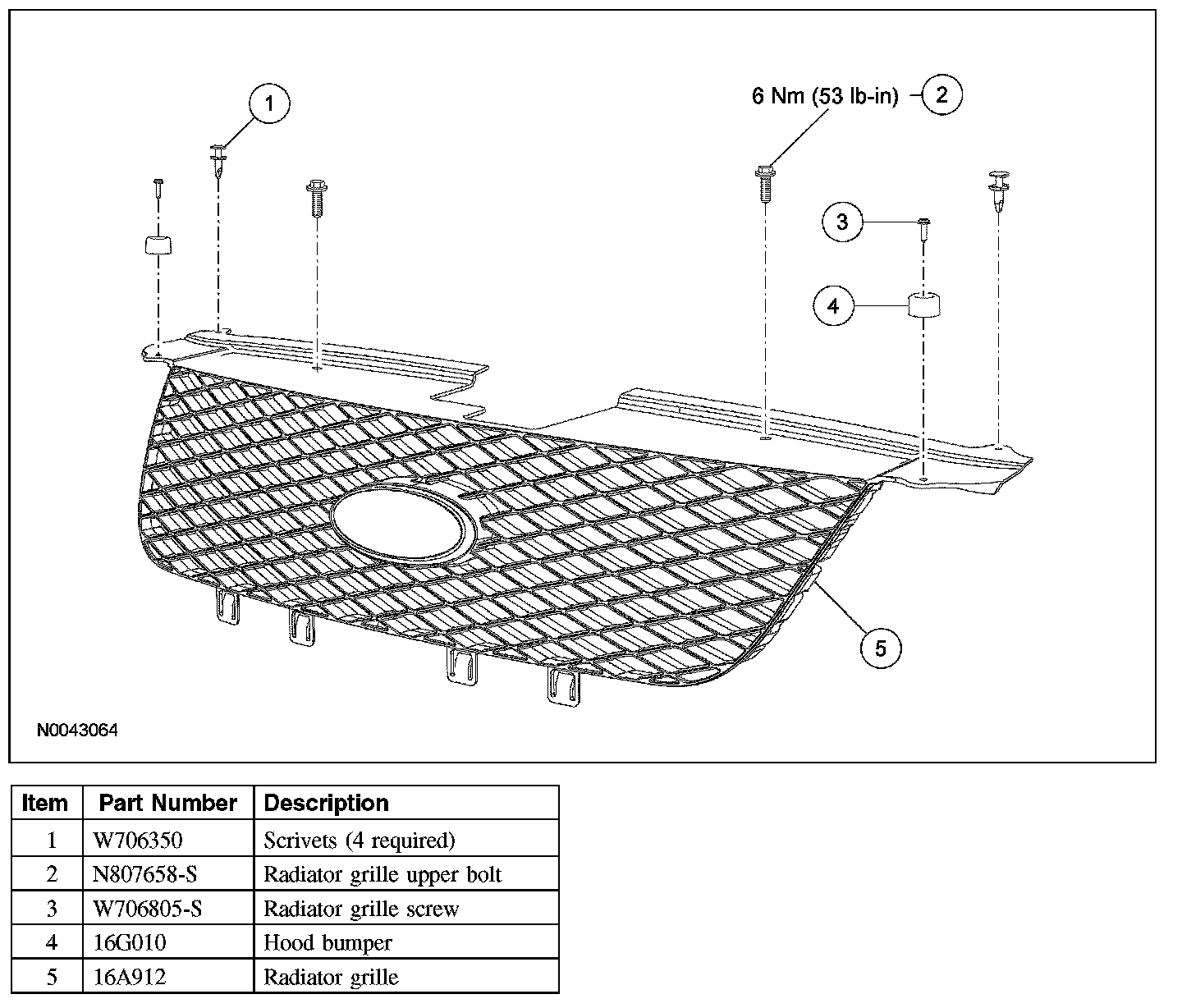

RADIATOR GRILLE-FREESTYLE







Removal and Installation
1. Open the hood.
2. Remove the 4 scrivets
3. Remove the 2 radiator grille upper bolts.
- To install, tighten to 6 Nm (53 lb-in).

4. Remove the 2 radiator grille screws.
5. Remove the 2 hood bumpers.
6. Remove the radiator grille.
- Release the 4 retaining tabs from the bumper cover.
- Pull upward on the radiator grille to remove it from the bumper cover.

7. To install, reverse the removal procedure.
