Drive Belt

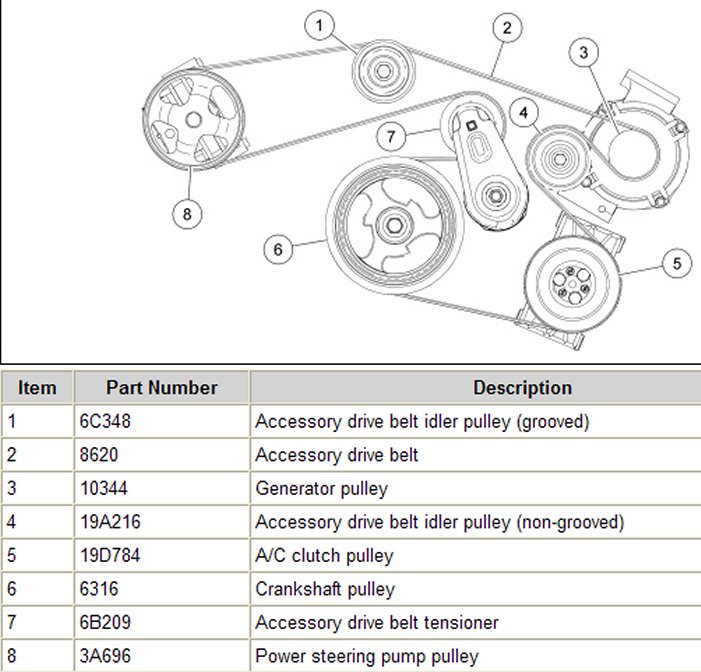

Front End Accessory (FEAD)

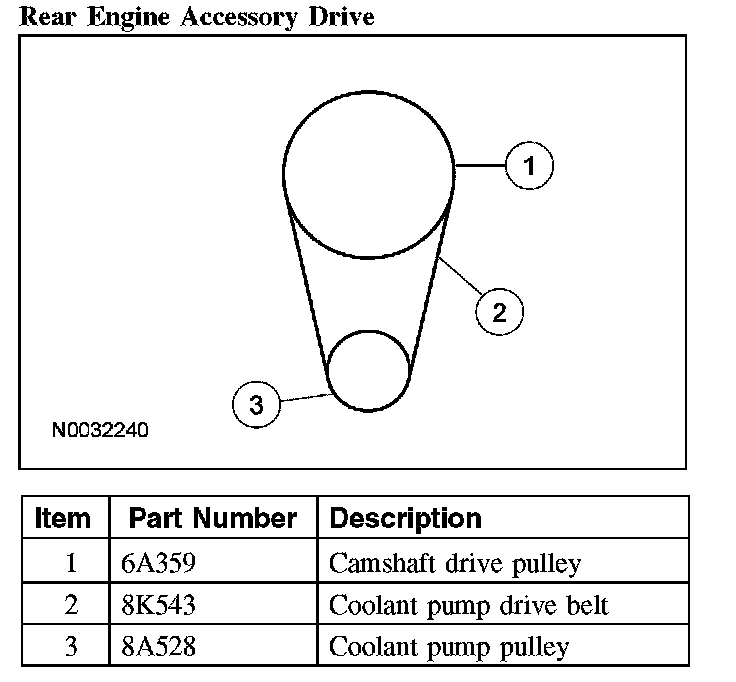

Rear Engine Accessory Drive:






Rear Engine Accessory Drive
