Rear Crankshaft Main Bearing Seal

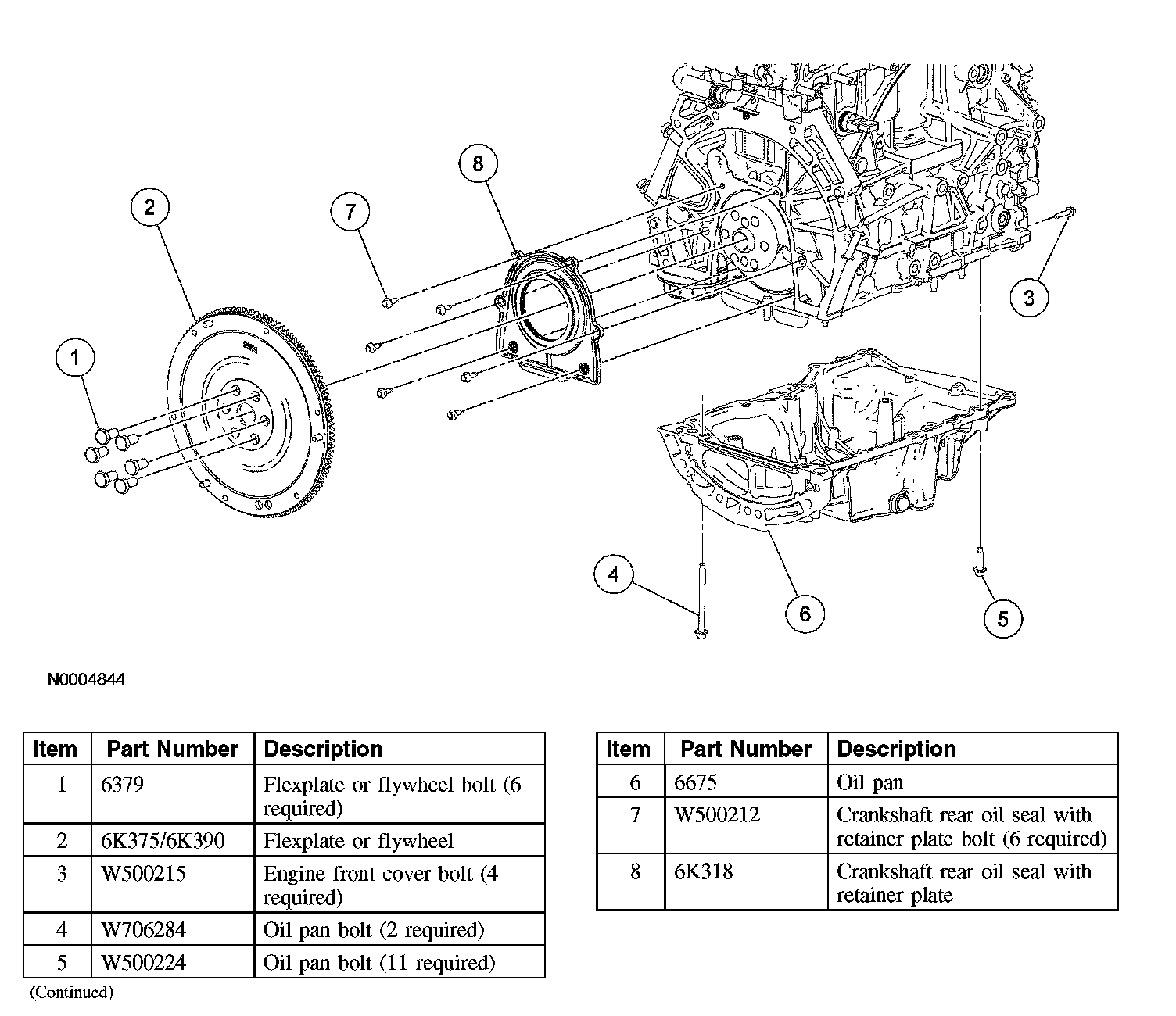

Lower End Components - Exploded View, Flexplate, Flywheel and Crankshaft Rear Seal
