Mechanical Specifications
>>
Engine
>>
Cylinder Head Assembly
>>
Valve Cover
Valve Cover
Valve Cover
Install the valve cover, new gasket and retainers.
^

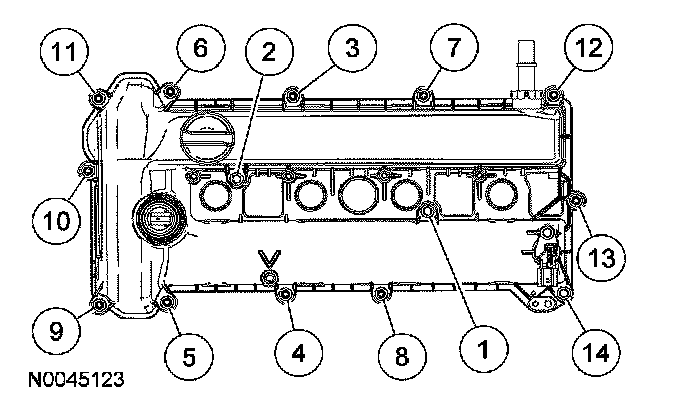

Tighten in the sequence shown to
10 Nm (89 inch lbs.).
