FNR5 - Automatic Transaxle/Transmission
>>
Test H: Transaxle Fluid Pressure Switch
Test H: Transaxle Fluid Pressure Switch

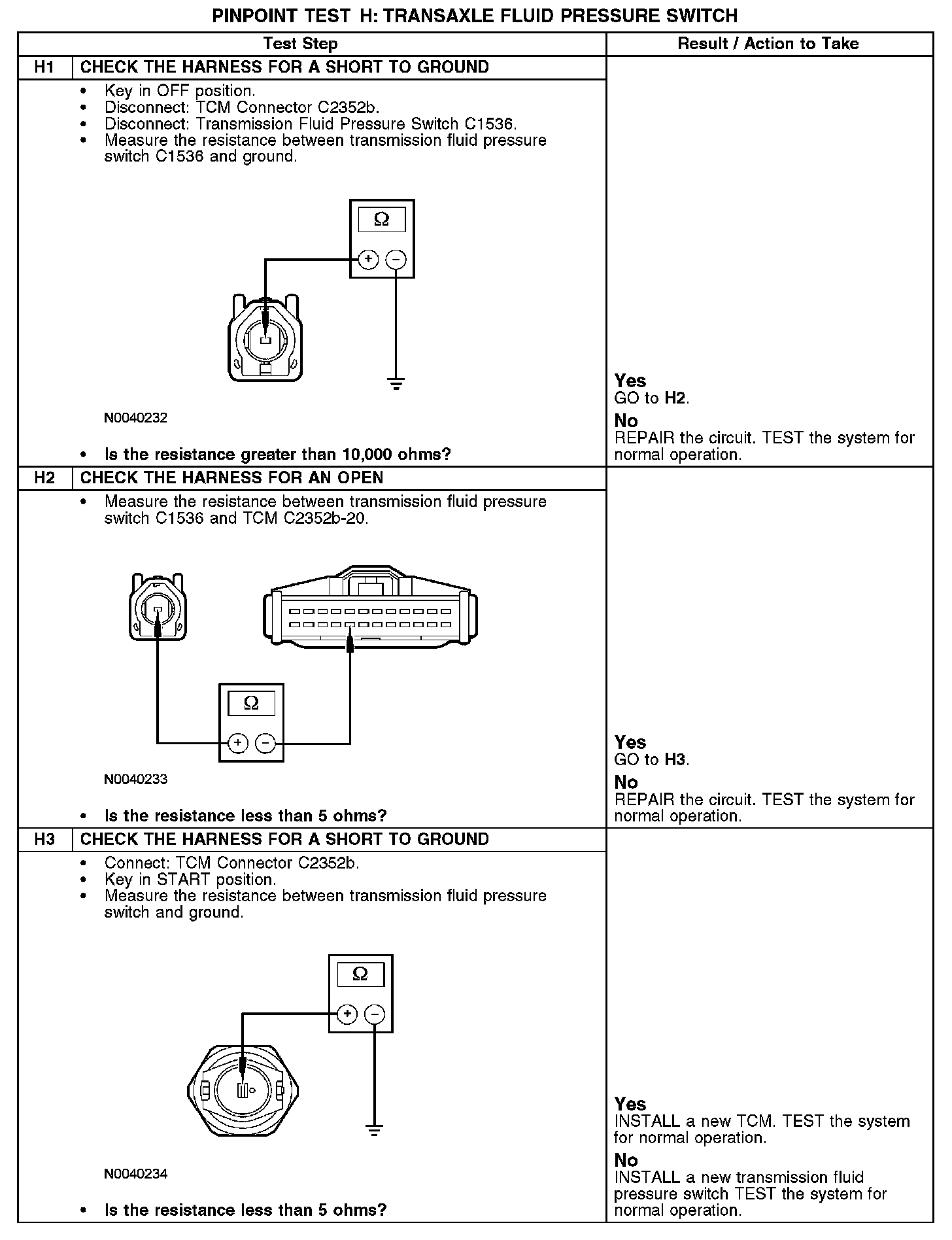

TEST H: TRANSAXLE FLUID PRESSURE SWITCH
H1-H3:
