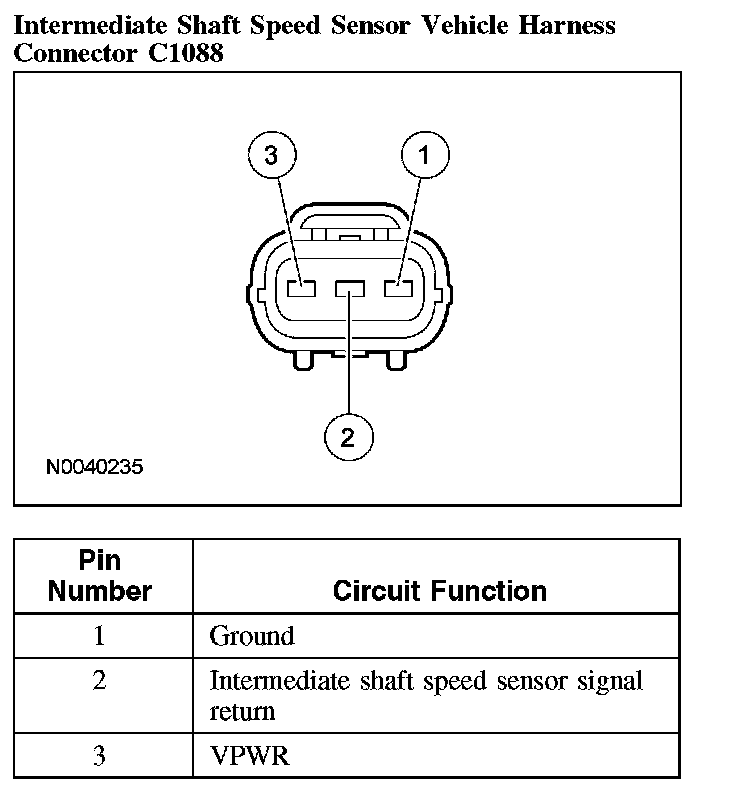

Intermediate Shaft Speed Sensor Vehicle Harness Connector C1088

Intermediate Shaft Speed Sensor Vehicle Harness Connector C1088:
