Transaxle Main Valve Body Internal Harness Connectors C1534
Transaxle Main Valve Body Internal Harness Connectors C1534

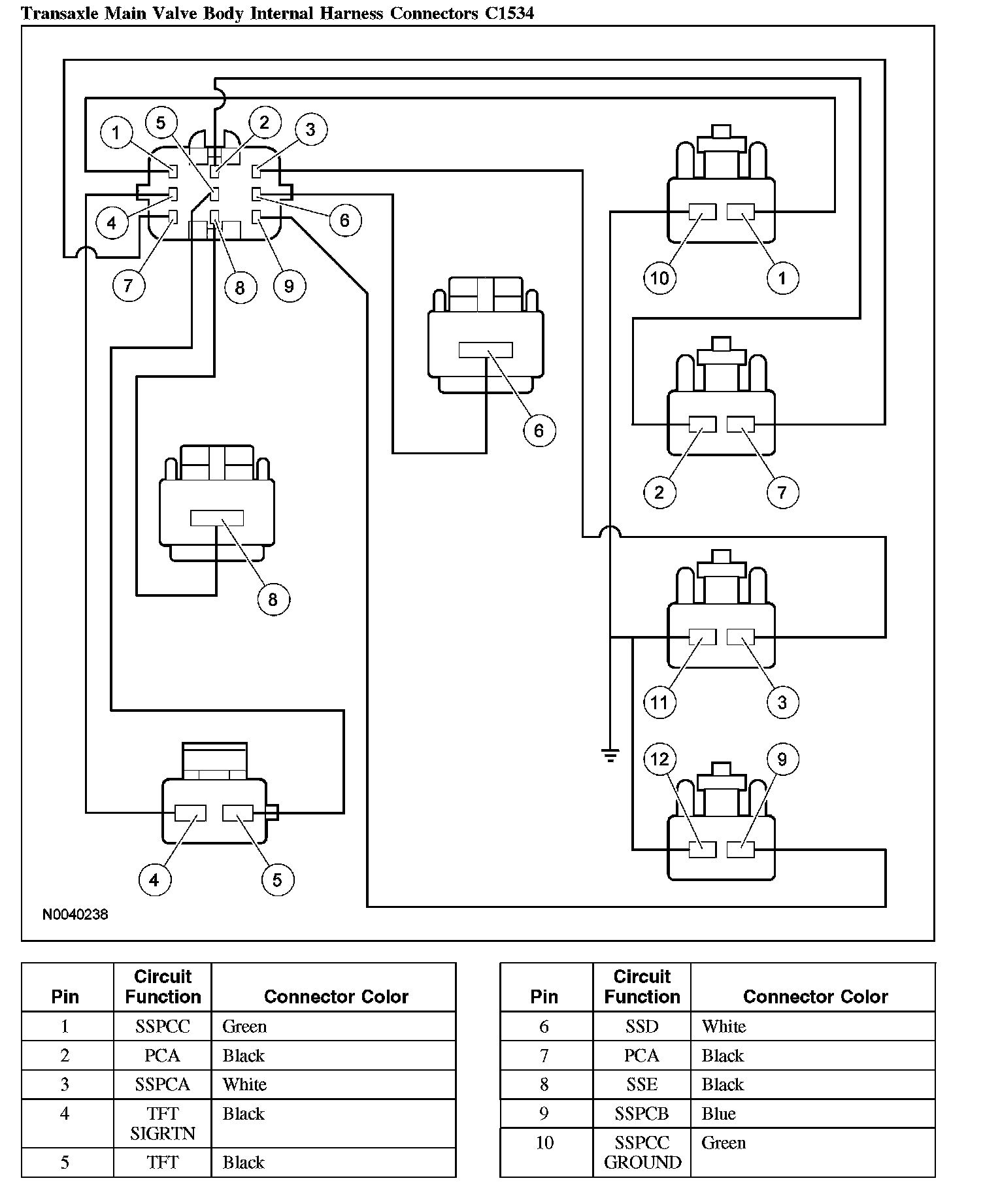

Transaxle Main Valve Body Internal Harness Connectors C1534 (Part 1):
Transaxle Main Valve Body Internal Harness Connectors C1534 (Part 2):
