Front Door: Adjustments

DOOR ADJUSTMENT - FRONT

NOTE: Make sure the rear door is within specifications before making any adjustments to the front door.

1. Remove the front fender.

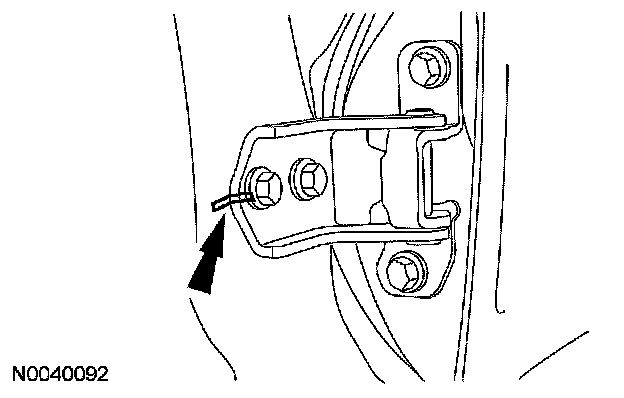

2. Mark the position of the front door hinges to use as reference points.

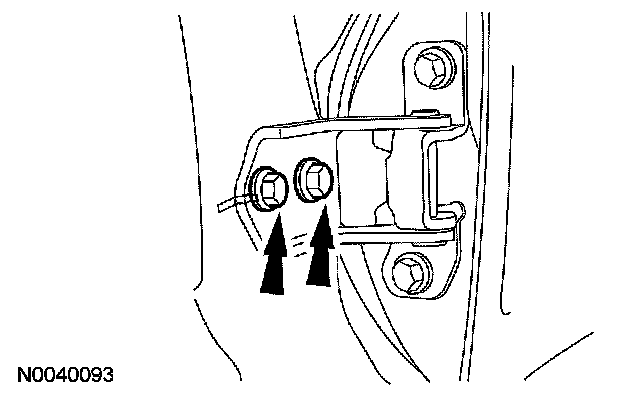

3. Loosen the 2 front door lower hinge-to-body bolts just enough to permit movement.

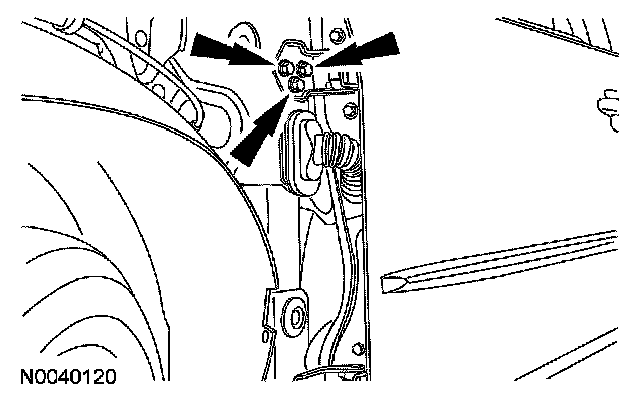

4. Loosen the 2 front door upper hinge-to-body bolts and nut just enough to permit movement.
5. Adjust the front door to specifications.

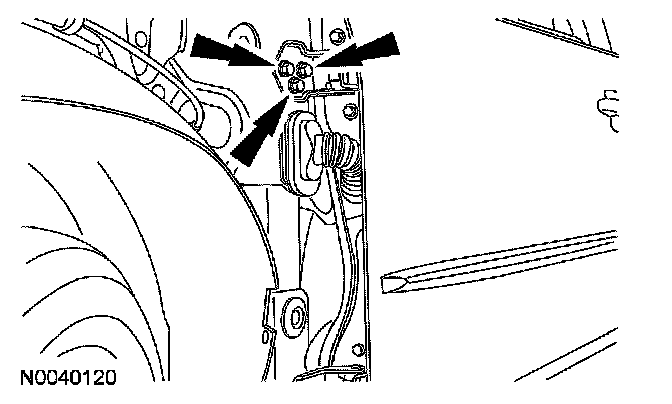

6. Tighten the 2 front door upper hinge-to-body bolts and nut.
- Tighten to 25 Nm (18 lb-ft).







7. Tighten the 2 front door lower hinge-to-body bolts.
- Tighten to 25 Nm (18 lb-ft).

8. Install the fender.
