Roof Opening Panel Alignment

ROOF OPENING PANEL ALIGNMENT

1. Open the roof opening panel to the VENT position.

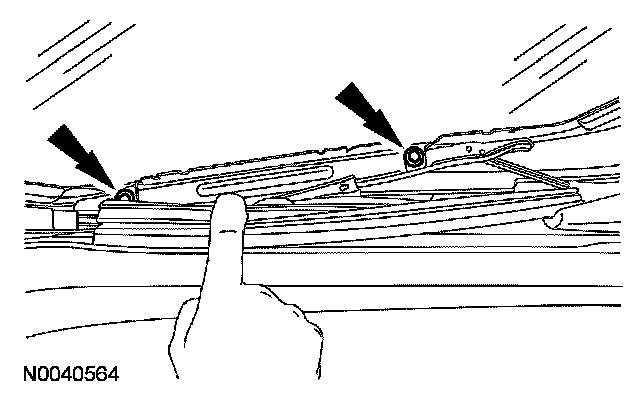

2. Loosen the 4 roof opening panel glass screws.

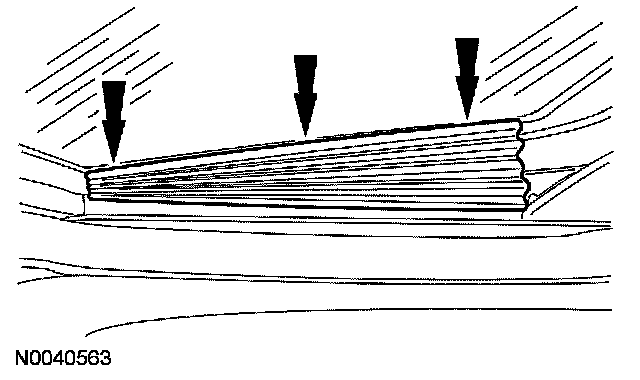

- To access the glass screws, unclip the top portion of the concertina blind and position aside as shown.

3. Close the roof opening panel glass.

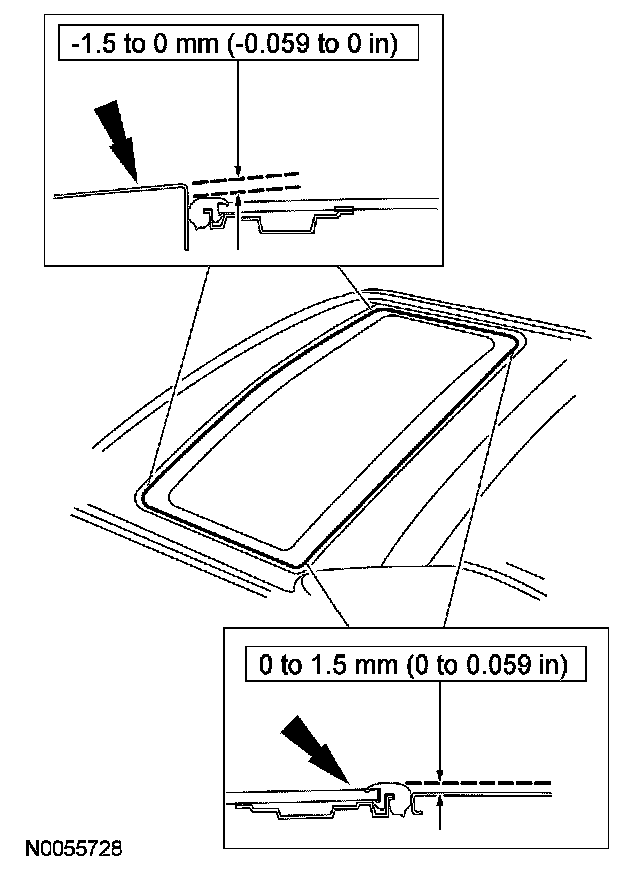

4. NOTE: The correct position of the roof opening panel glass to the roof panel should be -1.50 mm to 0 mm (-0.059 to 0 in) at the front edge and 0 mm to 1.5 mm (0 to 0.059 in) at the rear edge of the roof panel.

Make sure the roof opening panel is centered in the roof opening.

Adjust the roof opening panel glass.

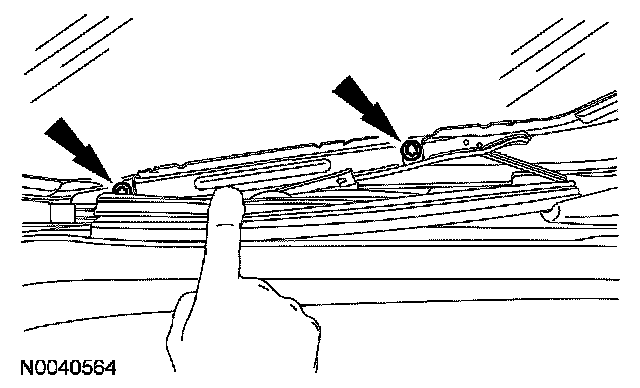

5. Tighten the 4 roof opening panel glass screws to 6 Nm (53 lb-in).
6. Open the roof opening panel to the VENT position.







7. Reattach the concertina blind making sure that it is fully seated on the 3 clips in roof panel glass.
