Oil Pump: Service and Repair

Oil Pump

Removal

CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the timing drive components.
3. Remove the oil pump screen and pickup tube.

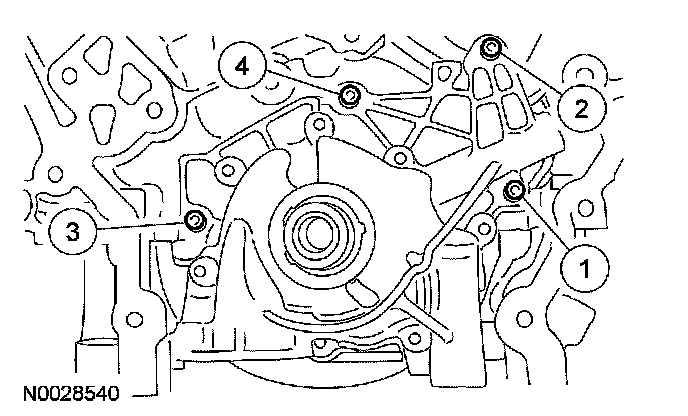

4. Remove the 4 bolts in the sequence shown.





Installation
1. Position the oil pump and install the 4 bolts.

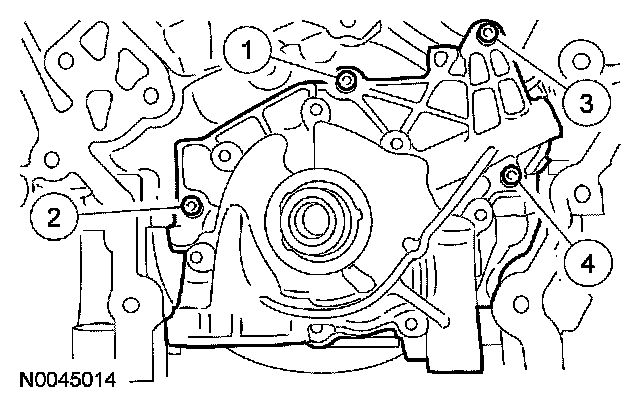

^ Tighten in the sequence shown to 10 Nm (89 inch lbs.).





2. Install the oil pump screen and pickup tube.
3. Install the timing drive components.
