Fog/Driving Lamp: Service and Repair

FOG LAMP

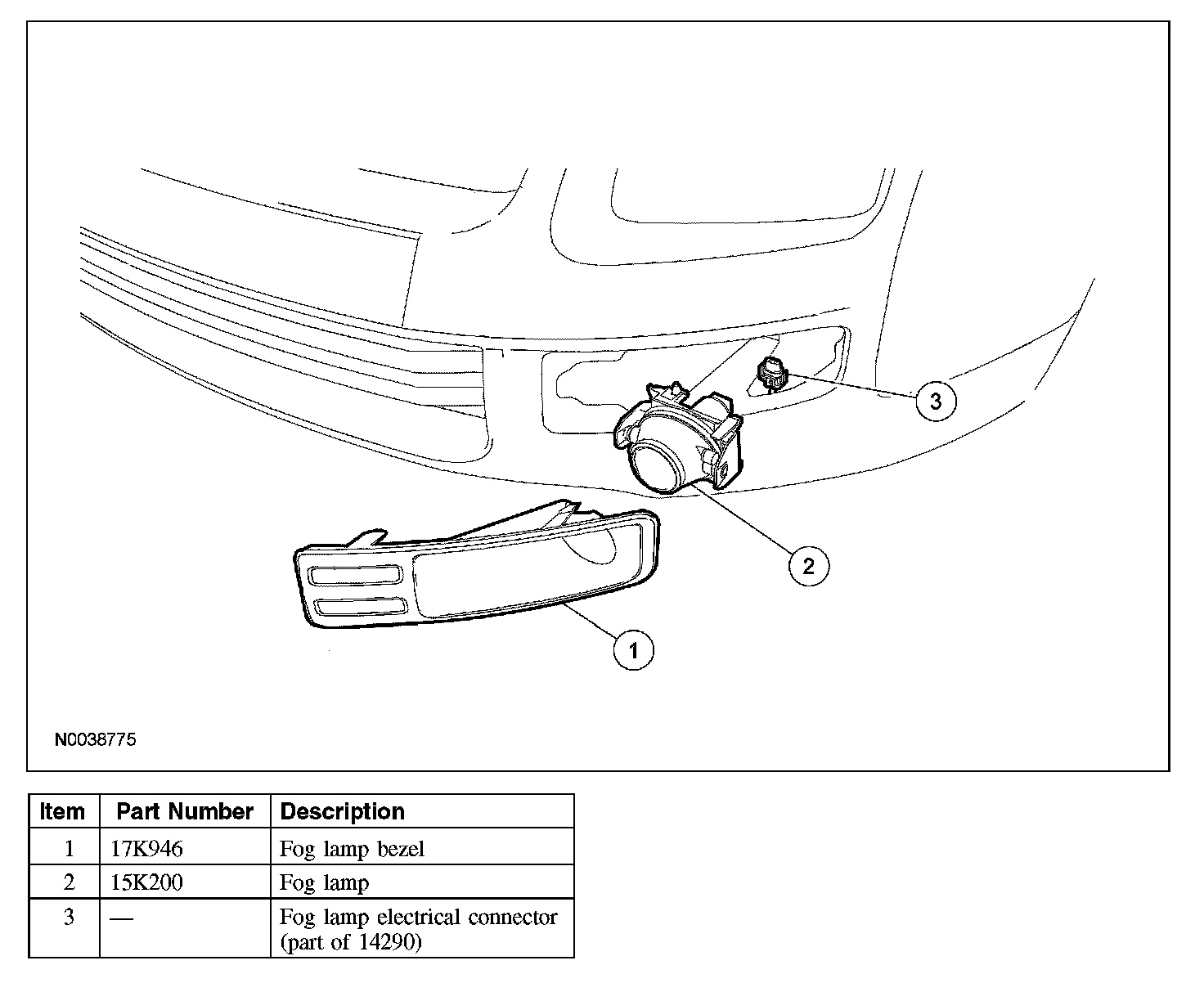

Removal and Installation

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the 4 screws and position the fender splash shield aside.
3. Release the tabs and remove the fog lamp bezel.
4. Release the locking tabs and remove the fog lamp.
- Disconnect the electrical connector.

5. To install, reverse the removal procedure.
