Test C: The Transmission Control (TC) Switch Is Inoperative
Test C: The Transmission Control (TC) Switch Is Inoperative
PINPOINT TEST C: THE TRANSMISSION CONTROL (TC) SWITCH IS INOPERATIVE
C1-C2:

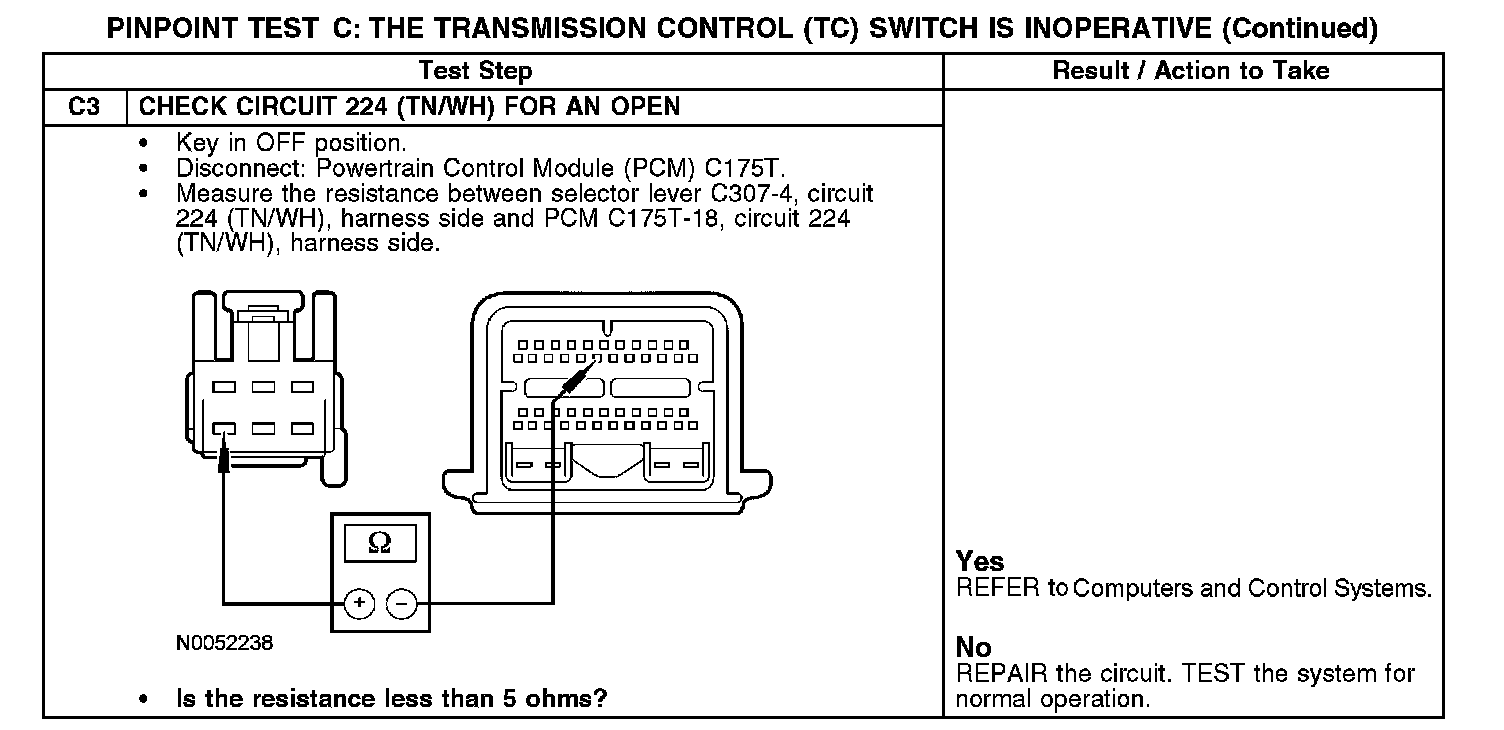

C3:
