Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear
>>
Rear Drive Axle and Differential
Rear Drive Axle and Differential
Rear Drive Axle and Differential

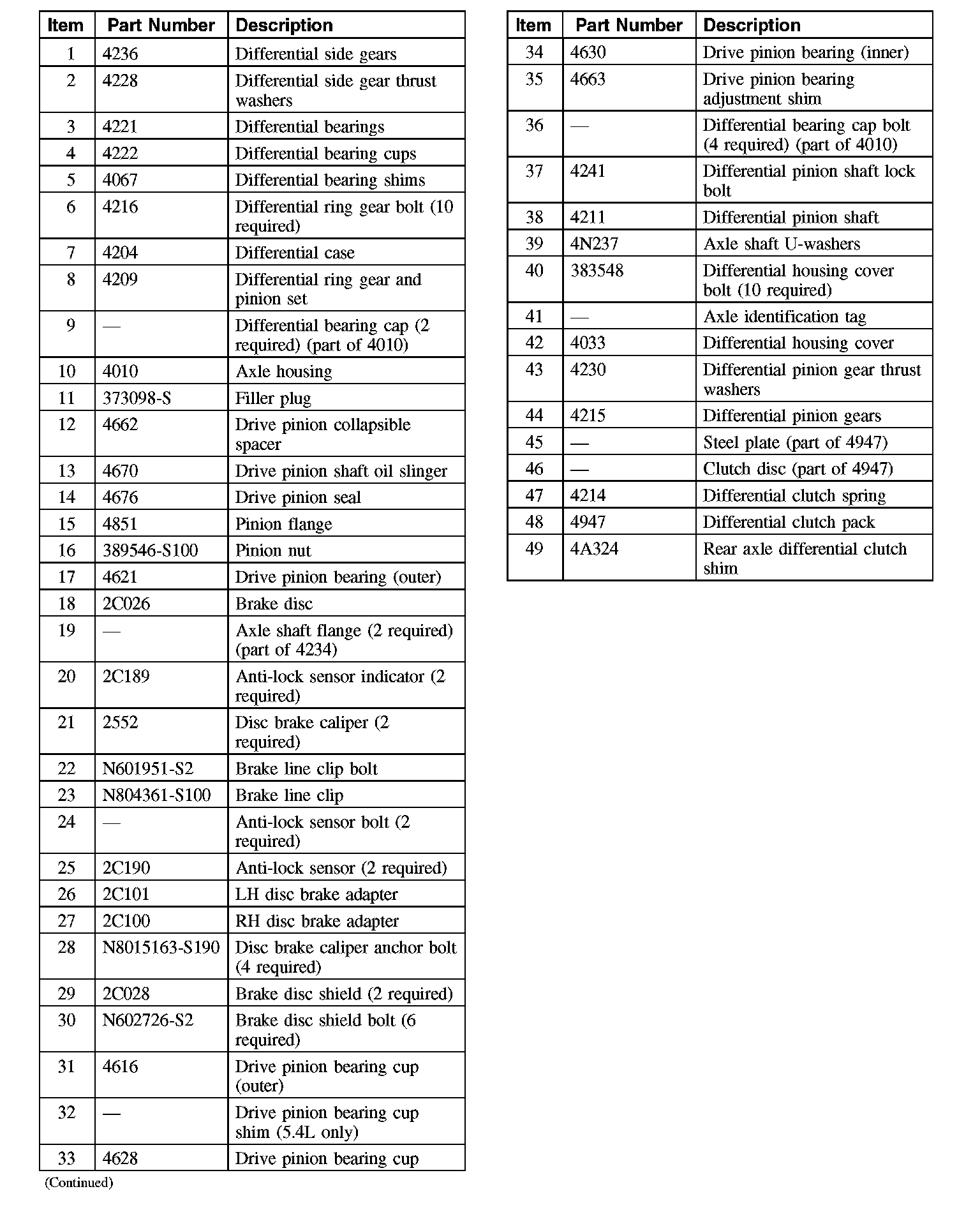

Rear Drive Axle and Differential (Part 1):
Rear Drive Axle and Differential (Part 2):
