Installation

Transmission

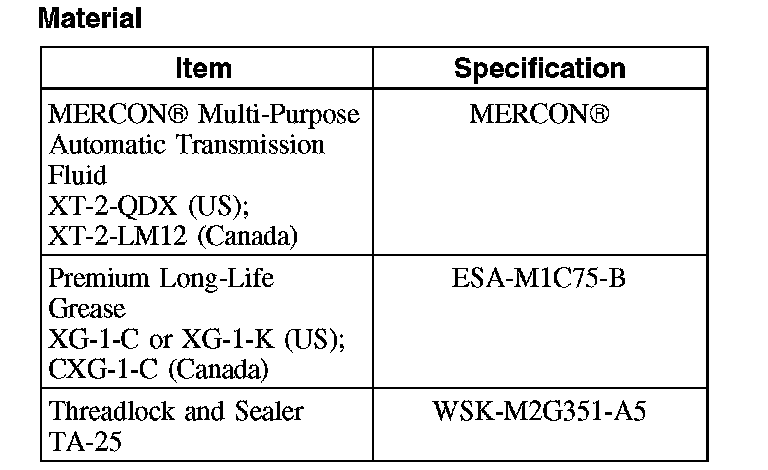

Material:

Installation

1. NOTE: Insert the clutch hydraulic line into the clutch slave cylinder and install the clip before tightening the transmission-to-engine bolts.

NOTE: Before installing the transmission, the input shaft must be cleaned and lubricated with grease.

To install, reverse the removal procedure.
^ Check, and as necessary, fill the transmission with transmission fluid. The total fill capacity is 3.0 liters (6.3 pints).
^ Fill the brake and clutch reservoir. Bleed the clutch hydraulic system.
2. Apply Threadlock and sealer to the fill plug threads and install the fill plug.
^ Tighten to 25 Nm (18 ft. lbs).
