Drive Belt: Service and Repair

Accessory Drive Belt - 2.3L

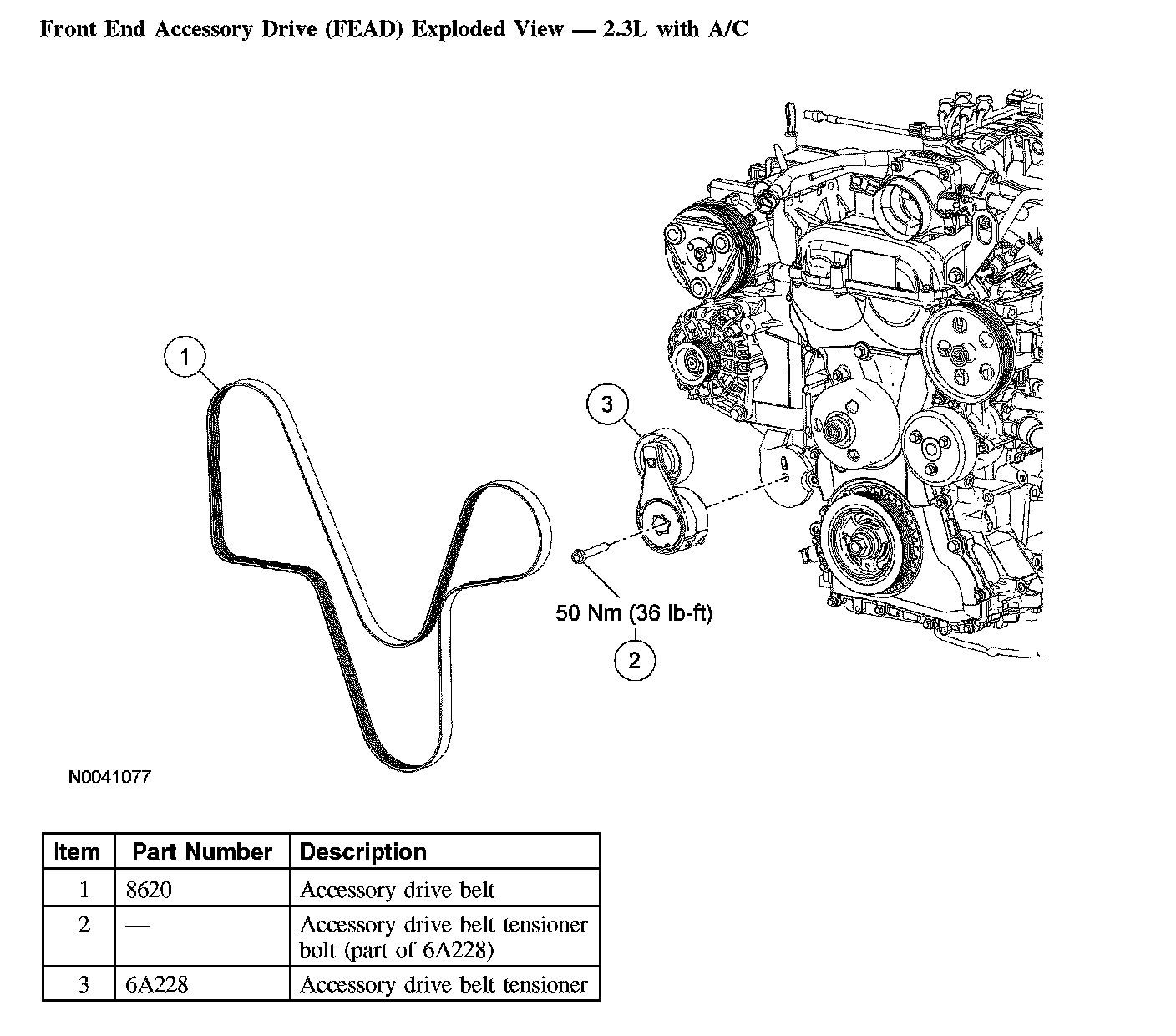

Front End Accessory Drive (FEAD) Exploded View - 2.3L with A/C:

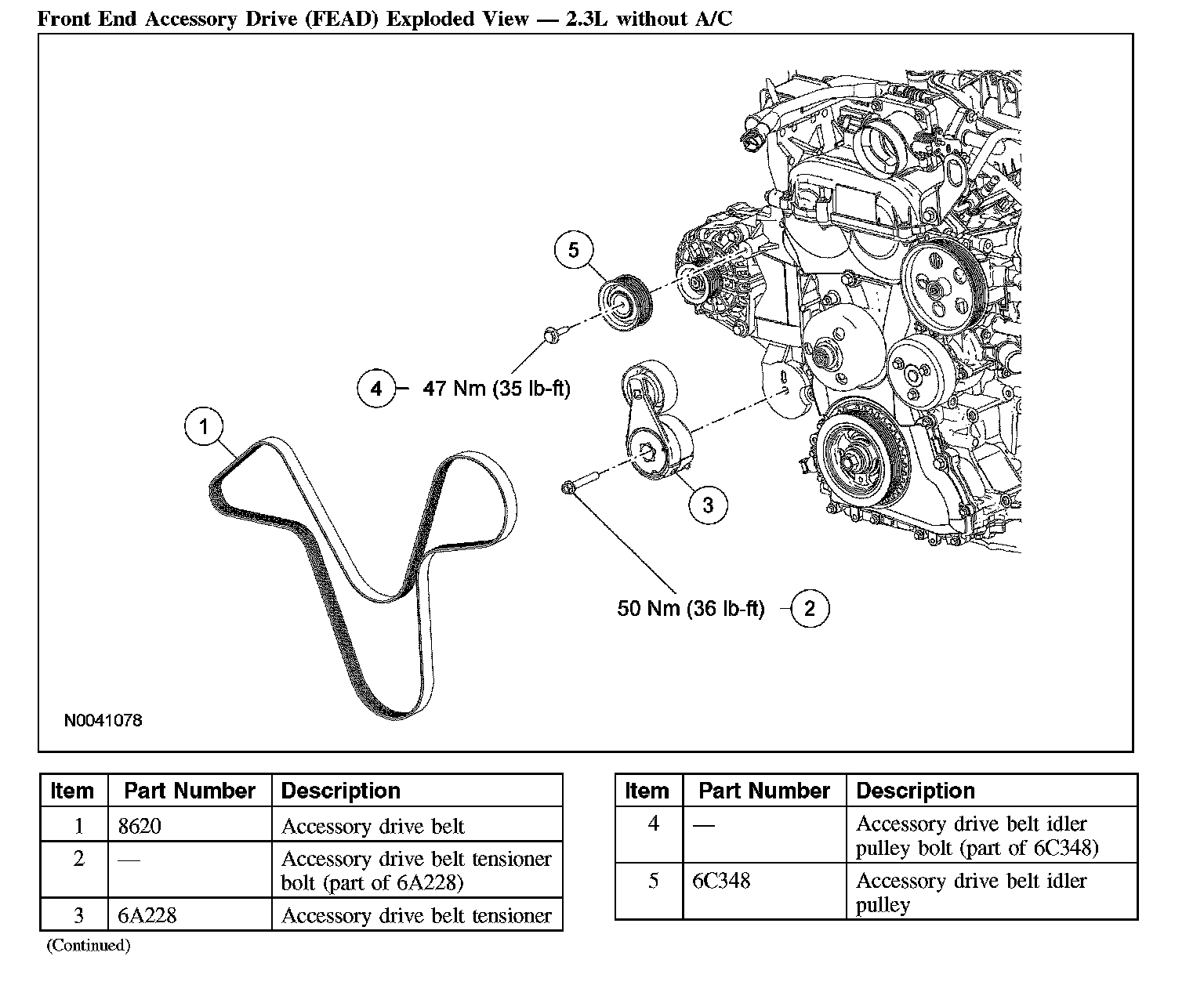

Front End Accessory Drive (FEAD) Exploded View - 2.3L without A/C:

Removal and Installation
1. Rotate the accessory belt tensioner counterclockwise and remove the drive belt.

2. NOTE: Refer to Description and Operation for correct drive belt routing.

To install, reverse the removal procedure.
