EGR Tube: Service and Repair

EXHAUST GAS RECIRCULATION (EGR) VALVE OUTLET TUBE

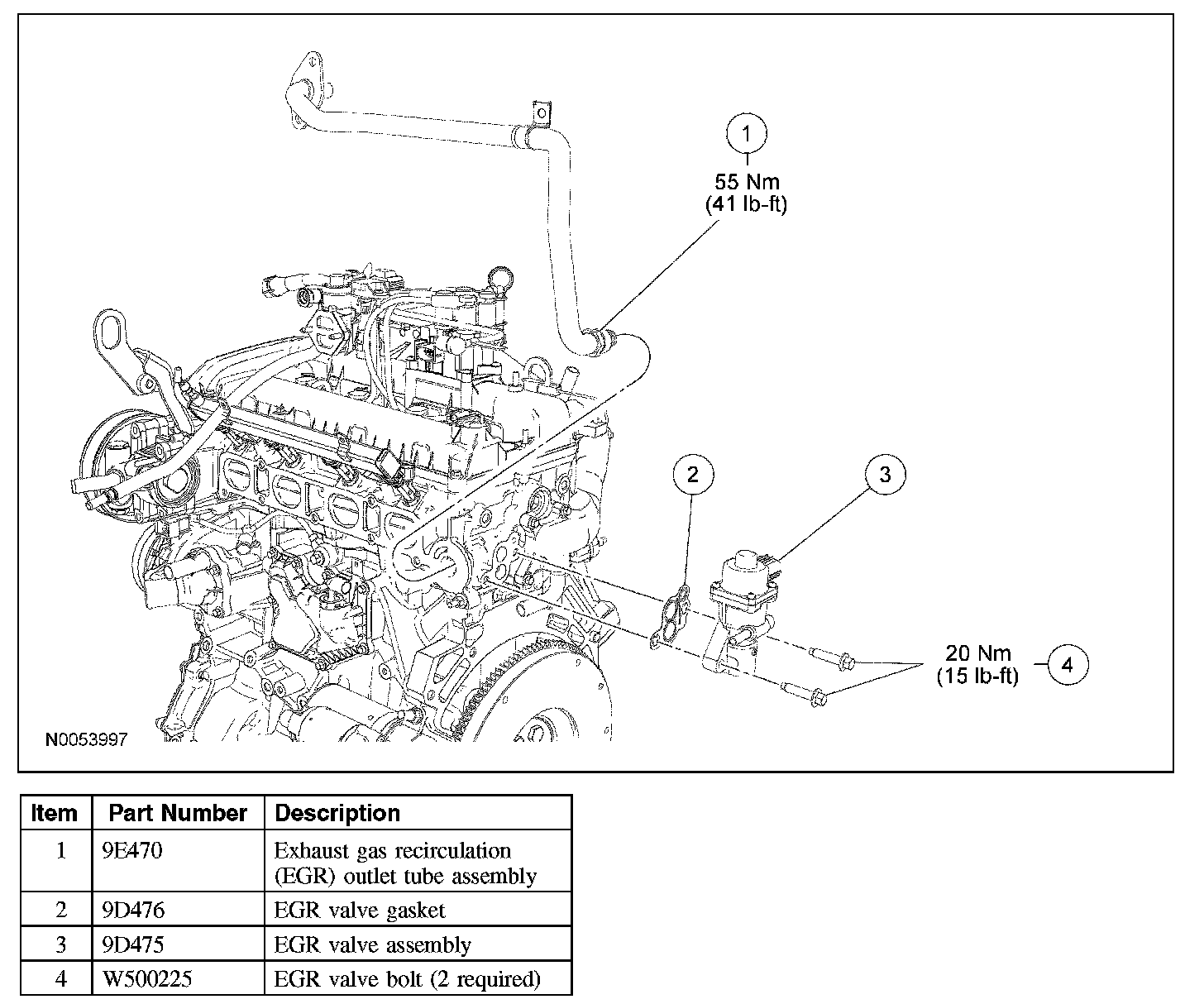

Exploded View

Removal and Installation
1. Remove the intake manifold.
2. Remove the exhaust gas recirculation (EGR) tube.
- To install, tighten to 55 Nm (41 lb-ft).

3. To install, reverse the removal procedure.
