Battery Cable: Service and Repair

BATTERY CABLES

LH Battery Cable Connections:

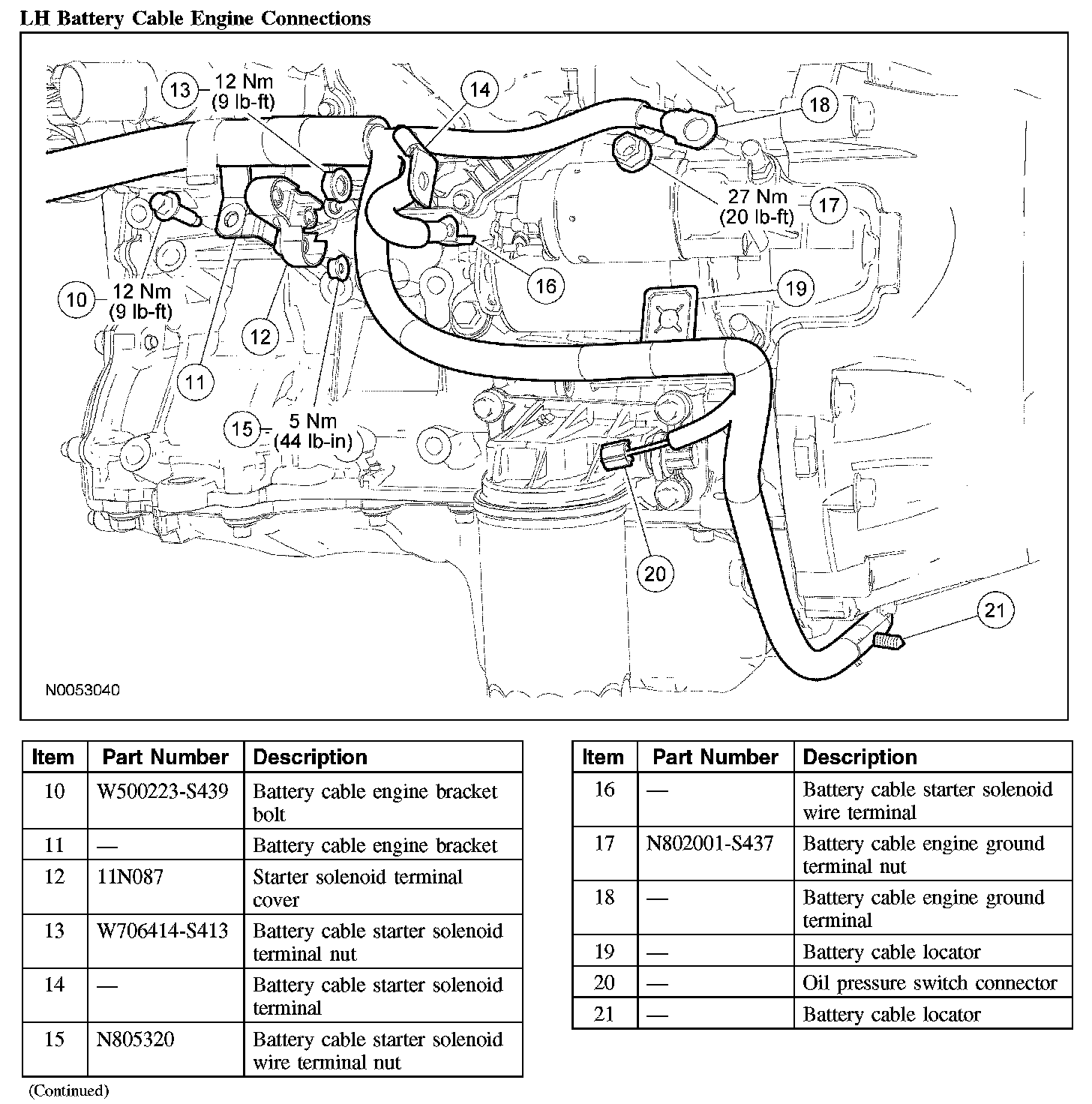

LH Battery Cable Engine Connections:

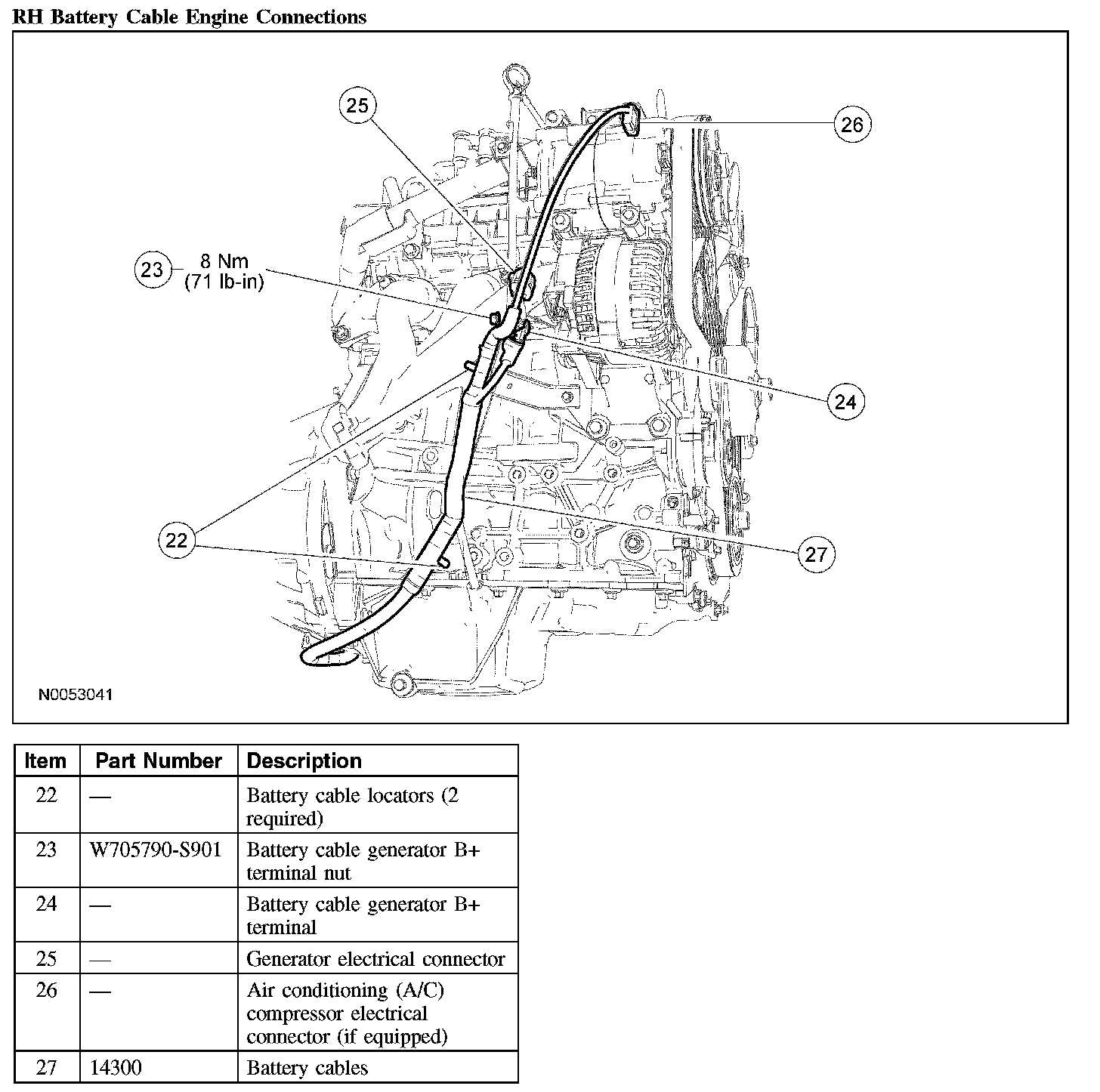

RH Battery Cable Engine Connections:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery.
3. Remove the bolt and position the battery cable body ground terminal aside.
- To install, tighten to 12 Nm (9 lb-ft).

4. Disconnect the battery cable connector located near the radiator support.
5. If equipped, disconnect the A/C cut-off switch connector.
6. Remove the 3 battery cable locators from the battery tray and fender.
7. Remove the BJB cover, remove the 2 nuts and position the BJB terminal aside.
- To install, tighten to 12 Nm (9 lb-ft).

8. Disconnect the battery cable connector located on the fenderwell.
9. Remove the bolt and position the battery cable fenderwell bracket aside.
- To install, tighten to 17 Nm (13 lb-ft).

10. Remove the bolt and position the battery cable engine bracket aside.
- To install, tighten to 12 Nm (9 lb-ft).

11. Remove the starter solenoid terminal cover.
12. Remove the nut and position the battery cable starter solenoid terminal aside.
- To install, tighten to 12 Nm (9 lb-ft).

13. Remove the nut and position the battery cable starter solenoid wire terminal aside.
- To install, tighten to 5 Nm (44 lb-in).

14. Remove the nut and position the battery cable engine ground terminal aside.
- To install, tighten to 27 Nm (20 lb-ft).

15. Remove the battery cable locator from the starter stud bolt.
16. Disconnect the oil pressure switch connector.
17. Remove the battery cable locator from the bell housing bracket.
18. Remove the 2 battery cable locators from the engine oil level dipstick tube bracket.
19. Position the generator B+ protective cover aside, remove the nut and position the battery cable generator B+ terminal aside.
- To install, tighten to 8 Nm (71 lb-in).

20. Disconnect the generator electrical connector.
21. If equipped, disconnect the A/C compressor electrical connector.
22. Remove the battery cable.
23. To install, reverse the removal procedure.
