REGISTER - CENTER

Removal

NOTE: The following procedure is for removal and installation of the center register LH or RH vanes/barrel assembly only. The center register housing is supplied only with the instrument cluster finish panel as an assembly.







1. NOTE: Use a shop cloth or equivalent to prevent damage to the instrument cluster finish panel when removing the vanes/barrel assembly.

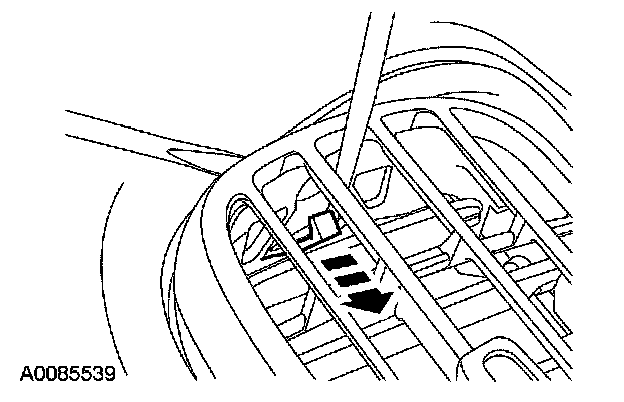

Gently pry inward to disengage the retaining tab and pry the vanes/barrel assembly out using a small screwdriver or equivalent.

Installation
1. Carefully push the vanes/barrel assembly into the center register housing until it clips into place.
2. Operate the vanes/barrel assembly in all directions to verify correct installation.
