Register - Driver Side

REGISTER - DRIVER SIDE

Removal and Installation
1. Remove the instrument cluster finish panel. Dashboard / Instrument Panel

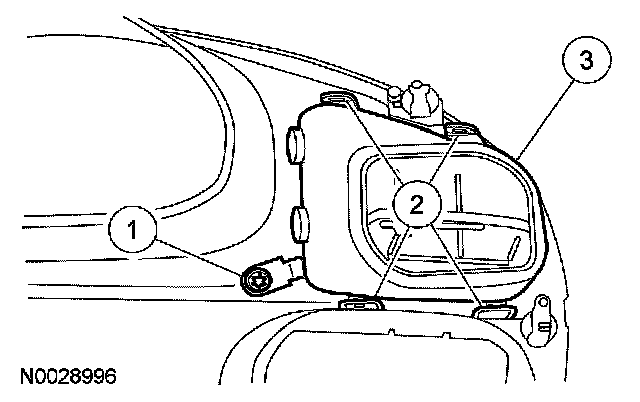

2. Remove the driver side register.
1 Remove the screw.
2 Disengage the tabs.
3 Remove the driver side register.

3. To install, reverse the removal procedure.
