Exterior Mirror Glass

EXTERIOR MIRROR GLASS

Exploded View







Removal and Installation

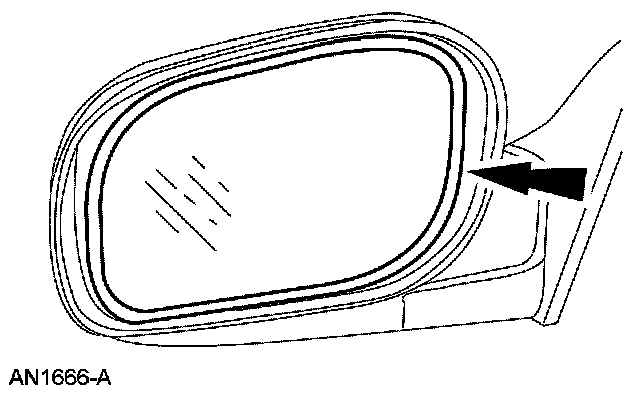

1. Push in the upper edge of the exterior mirror glass to the maximum travel.







2. WARNING: Place a shop towel between the hands and the exterior mirror glass for protection in case of glass breakage during mirror service. Failure to follow this instruction may result in serious personal injury.

Gently pull outward until the exterior mirror glass is released.
- If equipped, disconnect the mirror glass electrical connector.







3. To install, reverse the removal procedure.
