Plenum Chamber

PLENUM CHAMBER

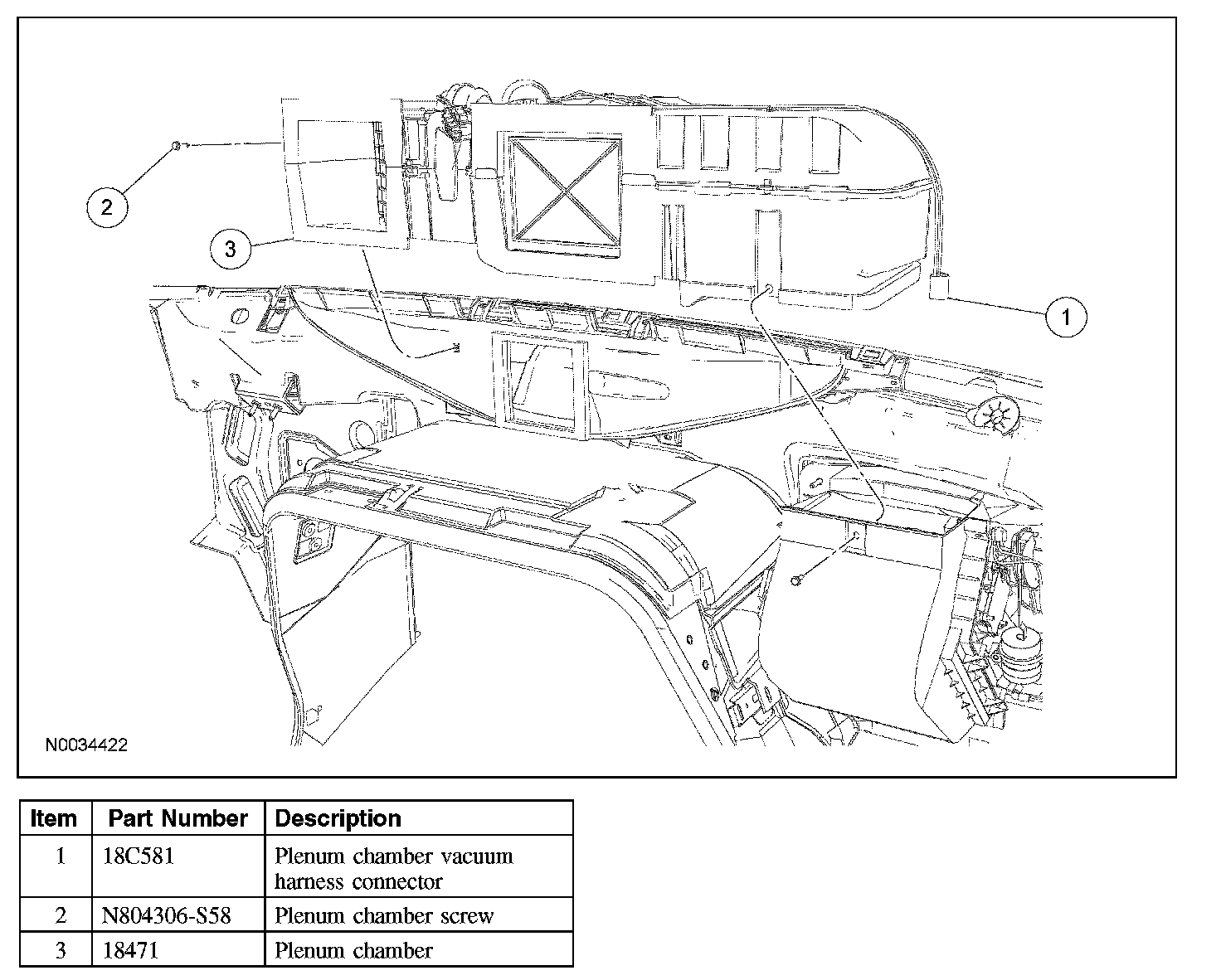

Removal and Installation
1. Remove the instrument panel.
2. Disconnect the plenum chamber vacuum harness connector.

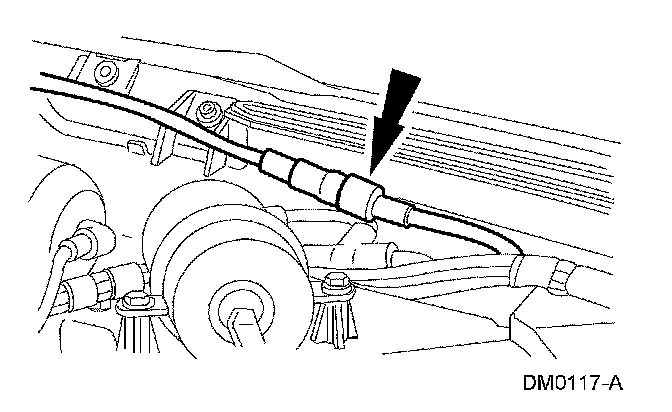

3. Disconnect the vacuum hose.







4. Remove the 2 plenum chamber screws.
5. Remove the plenum chamber.
6. To install, reverse the removal procedure.
