Emission Control Systems: Diagrams

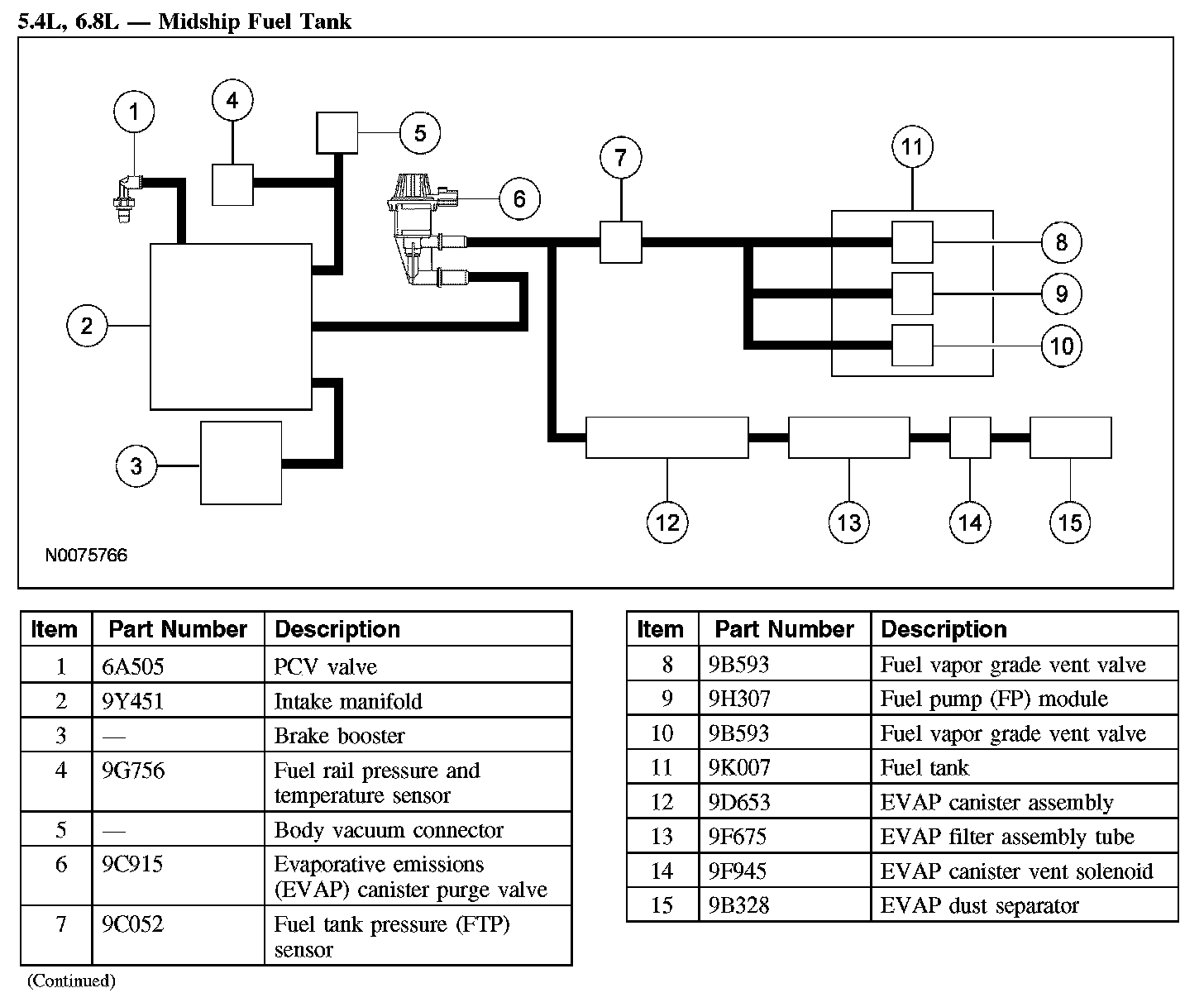

5.4L, 6.8L - Midship Fuel Tank:

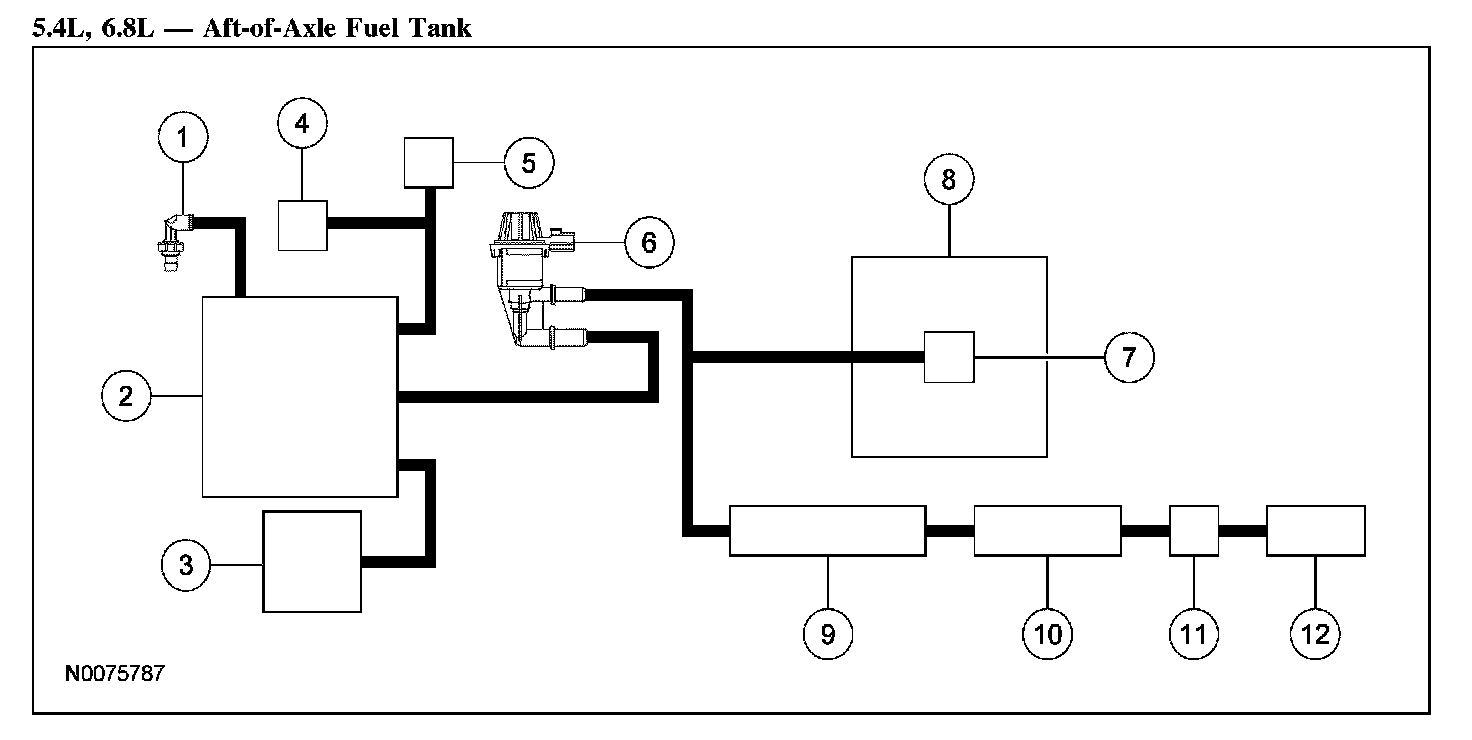

5.4L, 6.8L - Aft-of-Axle Fuel Tank (Part 1):

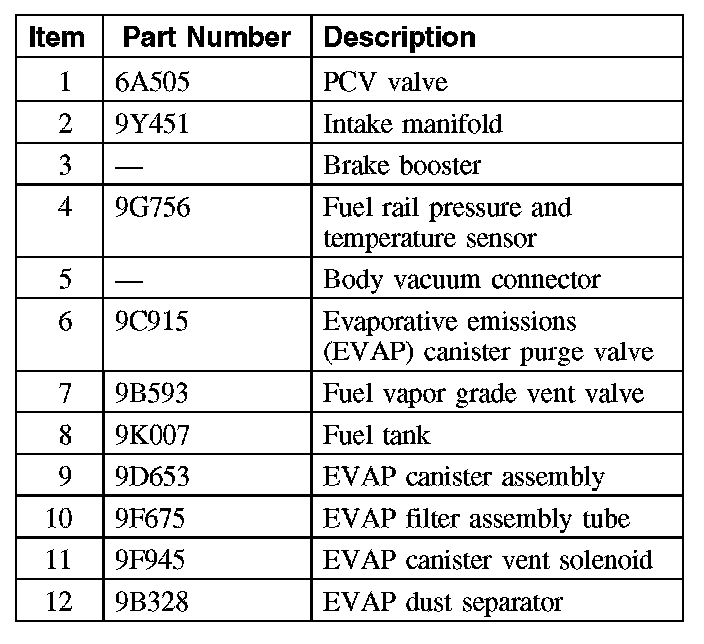

5.4L, 6.8L - Aft-of-Axle Fuel Tank (Part 2):
