Test D: Turbine Shaft Speed (TSS), Intermediate Shaft Speed and Output Shaft Speed (OSS) Sensors

PINPOINT TEST D: TURBINE SHAFT SPEED (TSS), INTERMEDIATE SHAFT SPEED AND OUTPUT SHAFT SPEED (OSS) SENSORS

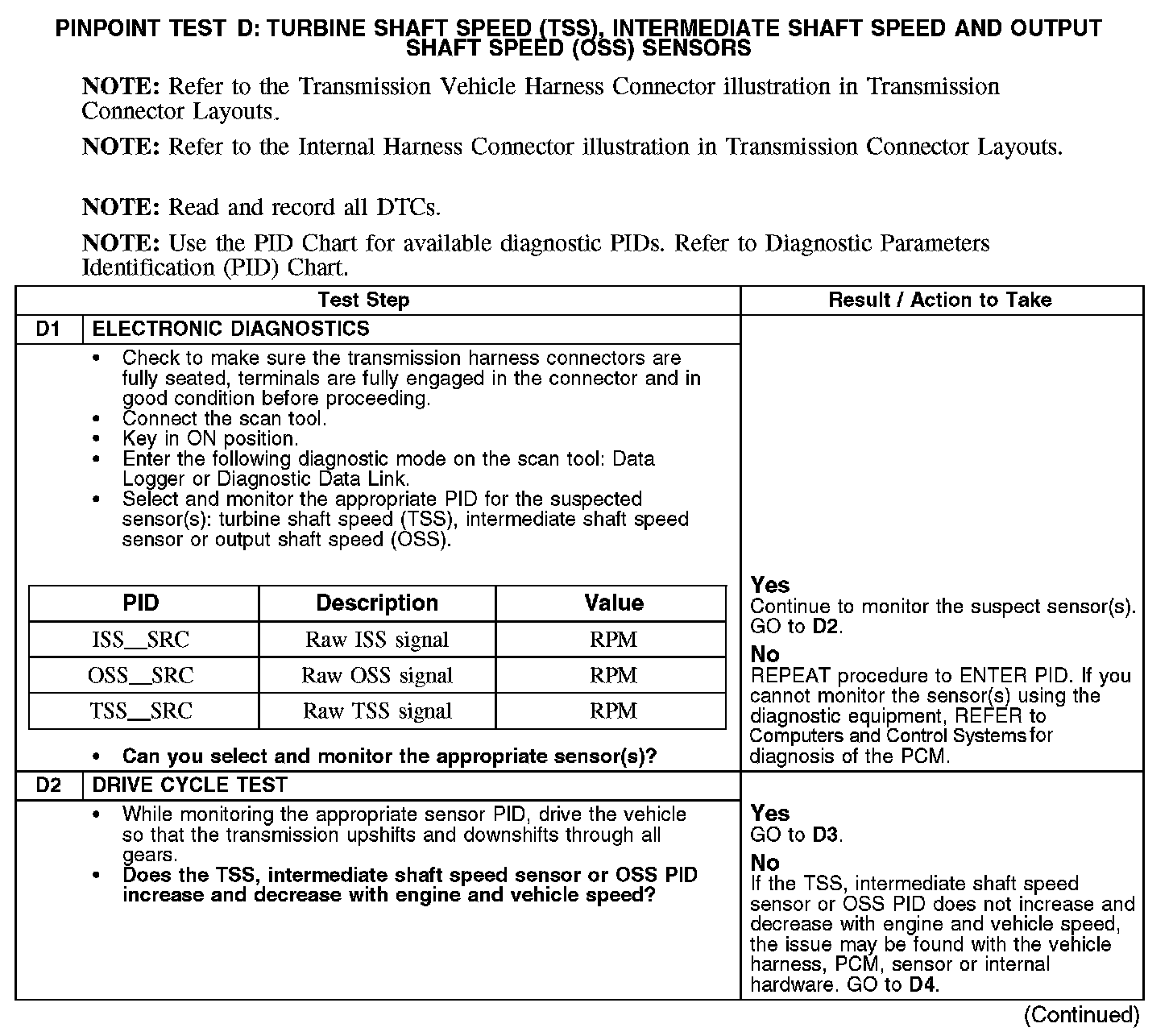

D1-D2:

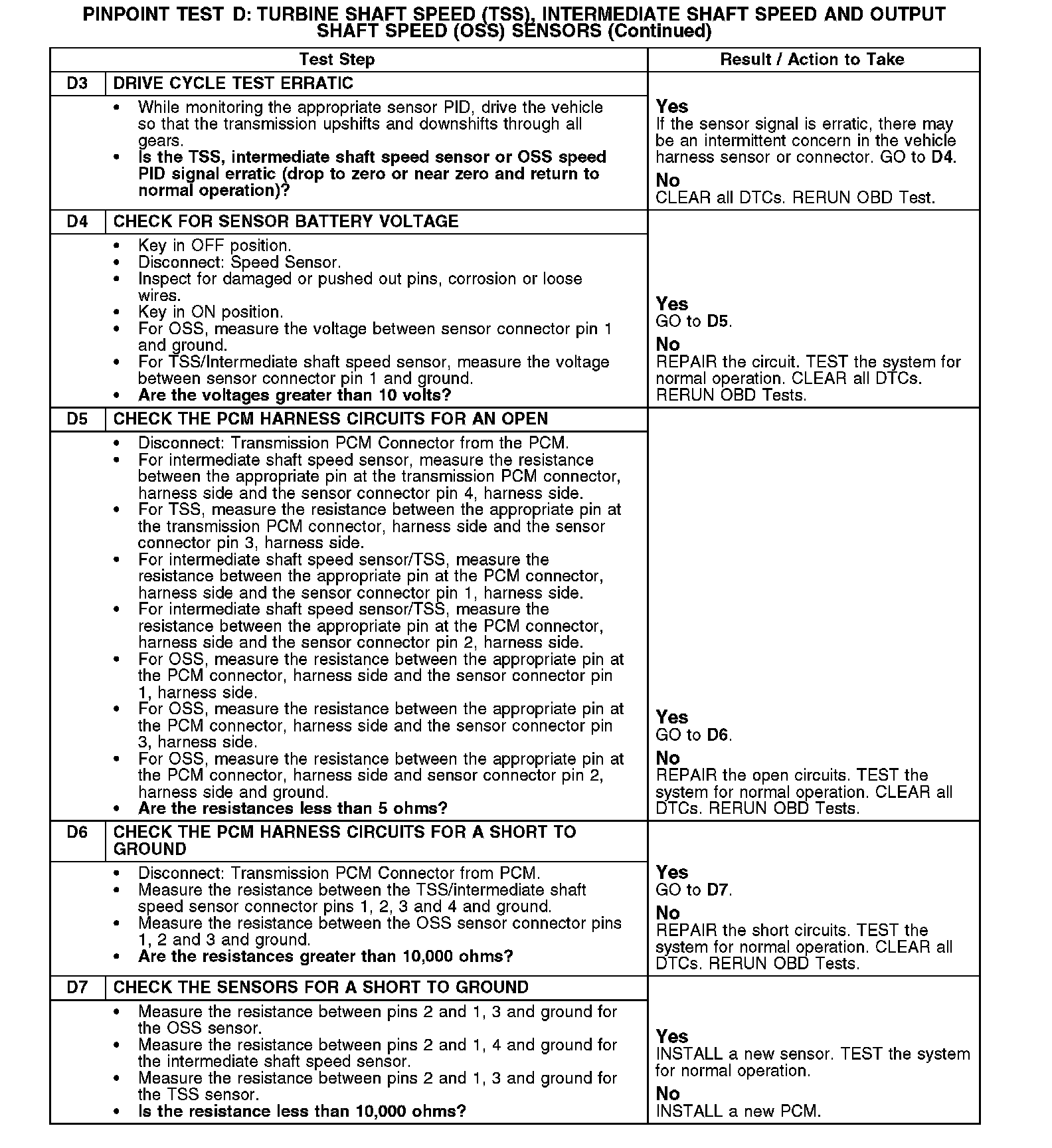

D3-D7:
