Clutch Solenoid Application Chart (G)

Torqshift - Automatic Transaxle/Transmission

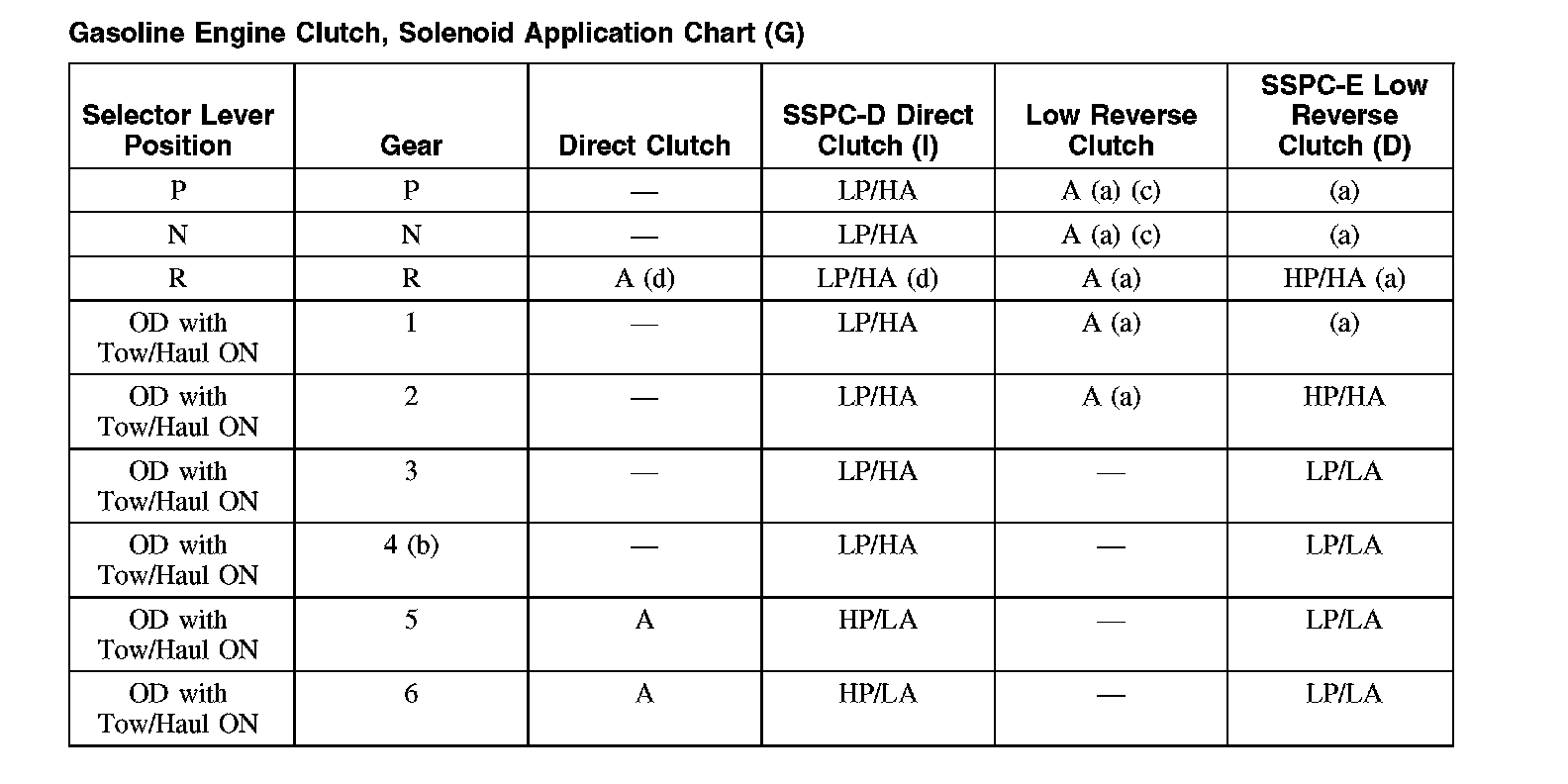

Gasoline Engine Clutch, Solenoid Application Chart (G)
