Parking Brake Control: Service and Repair

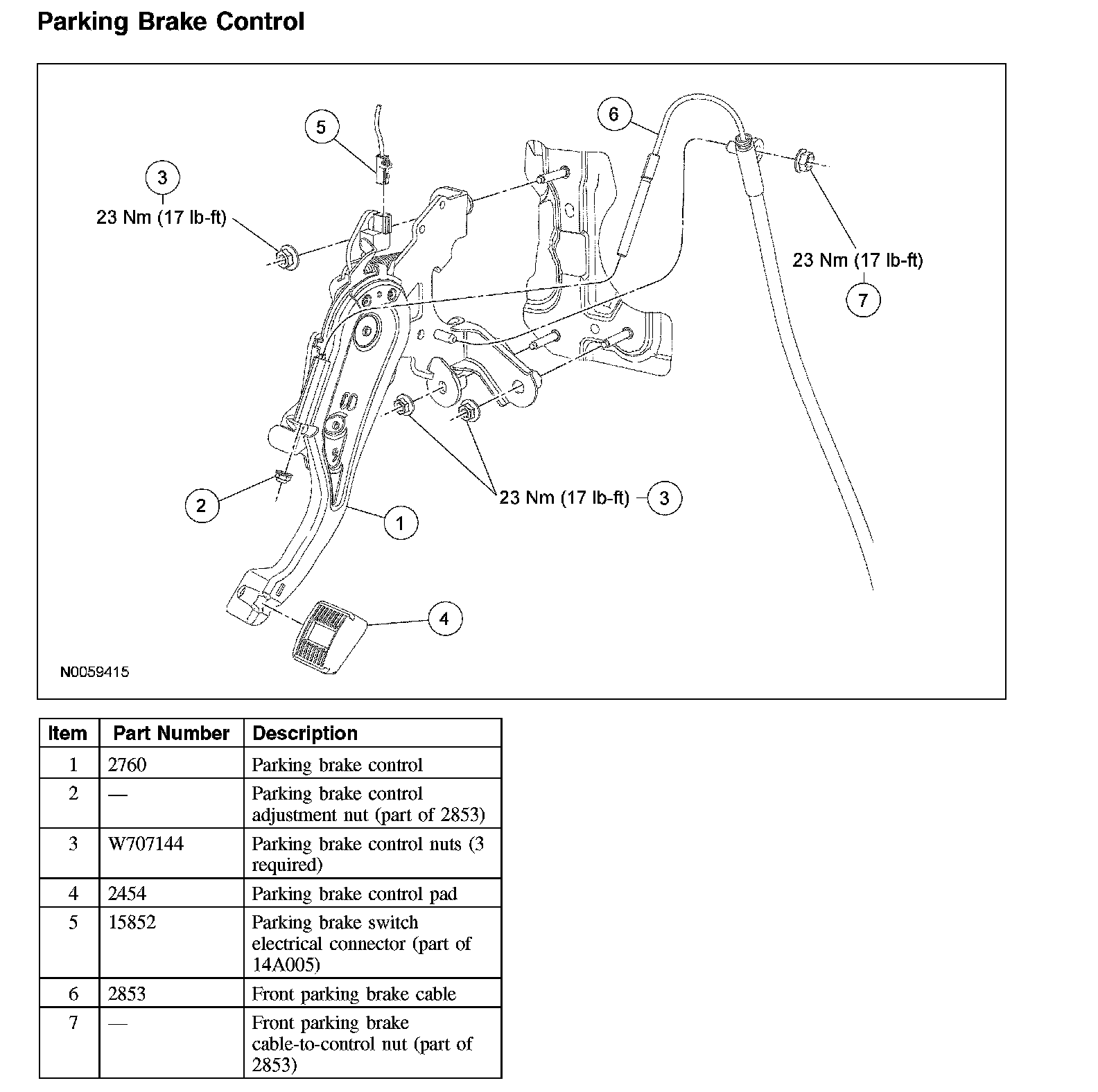

Parking Brake ControlParking Brake Control:
Removal and Installation
1. Disconnect the parking brake switch electrical connector.
2. Remove the parking brake control adjustment nut.
3. Remove the front parking brake cable-to-control nut and position the front cable aside.
^ To install, tighten to 23 Nm (17 lb-ft).
4. Remove the 3 parking brake control nuts and the parking brake control.
^ To install, tighten to 23 Nm (17 lb-ft).
5. To install, reverse the removal procedure.
^ Adjust the parking brake cable.
