Power Steering Pump Belt

Power Steering Pump Belt

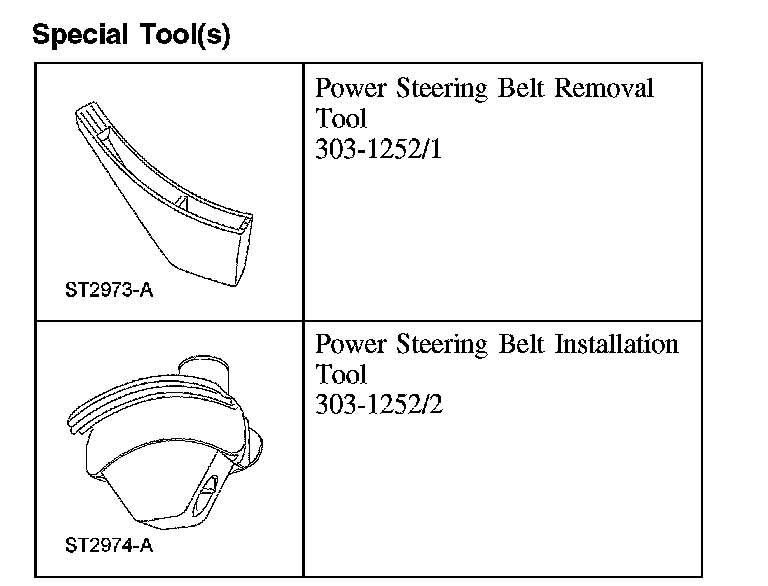

Special Tool(s):

Removal

CAUTION: Under no circumstances should the accessory drive belt, tensioner or pulleys be lubricated as potential damage to the belt material and tensioner damping mechanism will occur. Do not apply any fluids or belt dressing to the accessory drive belt or pulleys.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Working from the top of the vehicle, using a suitable belt tensioner release tool, rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt from the generator pulley.
3. Remove the RH inner fender splash shield.
4. Position the accessory drive belt off the crankshaft pulley.

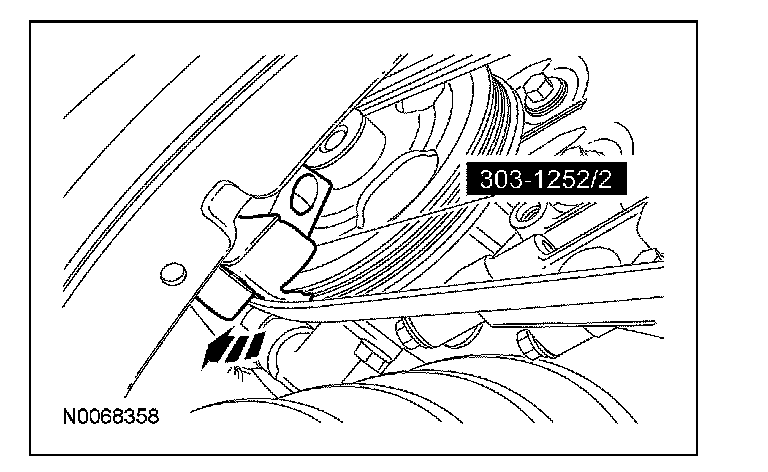

5. Install the special tool between the power steering pump belt and pulley, turning the crankshaft bolt clockwise to remove the power steering belt.





Installation
1. Install the power steering belt on the crankshaft pulley.

2. CAUTION: After installation, make sure the belt is correctly seated on the crankshaft and power steering pulleys.

Position the power steering belt around the special tool and the power steering pulley. Make sure that the belt is engaged with the power steering pulley and rotate the crankshaft clockwise to install the power steering belt.





3. Position the accessory drive belt on the crankshaft pulley.

4. NOTE: After installation, make sure the accessory drive belt is correctly seated on all pulleys.

Working from the top of the vehicle, using a suitable belt tensioner release tool, rotate the accessory drive belt tensioner clockwise and install the accessory drive belt.
5. Install the RH inner fender splash shield.
