Wiper Pivot Arm - Front

WIPER PIVOT ARM - FRONT

Exploded View


Front Wiper System:






Rear Wiper System:






Washer System:






Removal and Installation

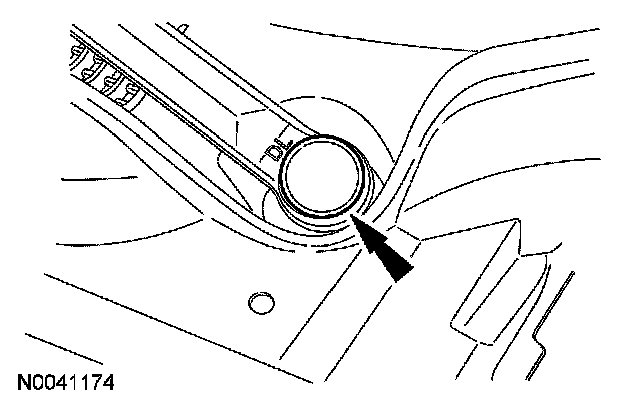

1. Remove the front wiper pivot arm caps.

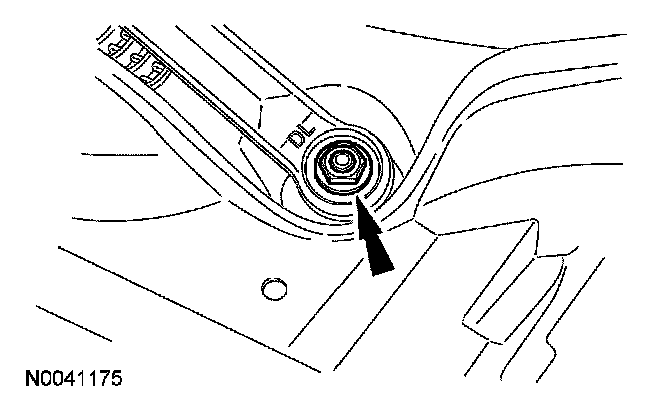

2. Remove the front wiper pivot arm retaining nuts and the front wiper pivot arms.
- To install, tighten to 30 Nm (22 lb-ft).







3. To install, reverse the removal procedure.
- To adjust the windshield wiper pivot arms, refer to Wiper Blade and Pivot Arm Adjustment - Windshield. Wiper Blade and Pivot Arm Adjustment - Windshield
