Power Mirror Motor: Service and Repair

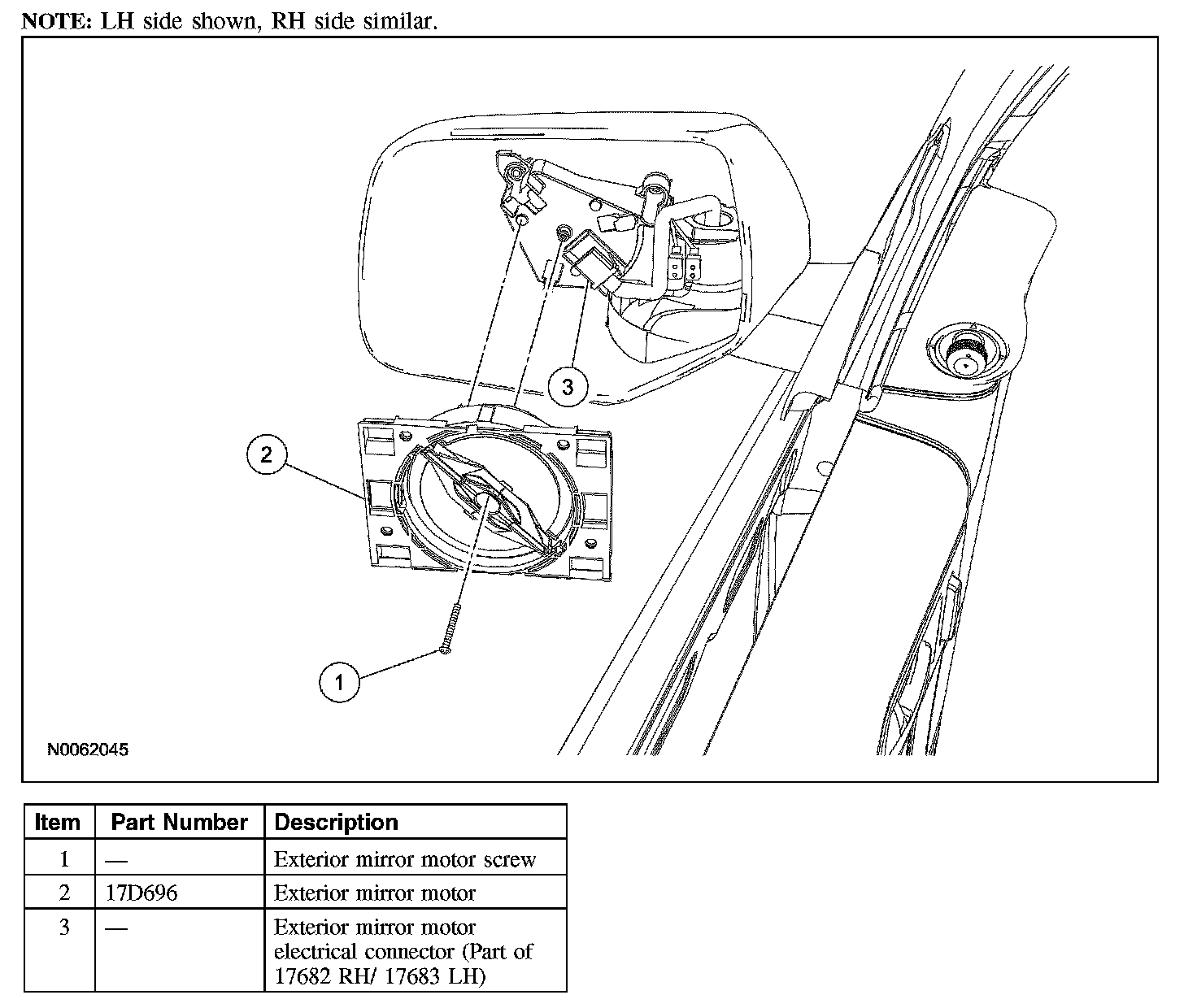

EXTERIOR MIRROR MOTOR







Removal and Installation
1. Remove the exterior mirror glass.
2. Remove the exterior mirror motor screw.
3. With a flat-blade tool, release the 3 exterior mirror motor tabs.







4. Remove the exterior mirror motor.
- Disconnect the electrical connector.

5. To install, reverse the removal procedure.
