Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2008
>>
Escape 4WD L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>

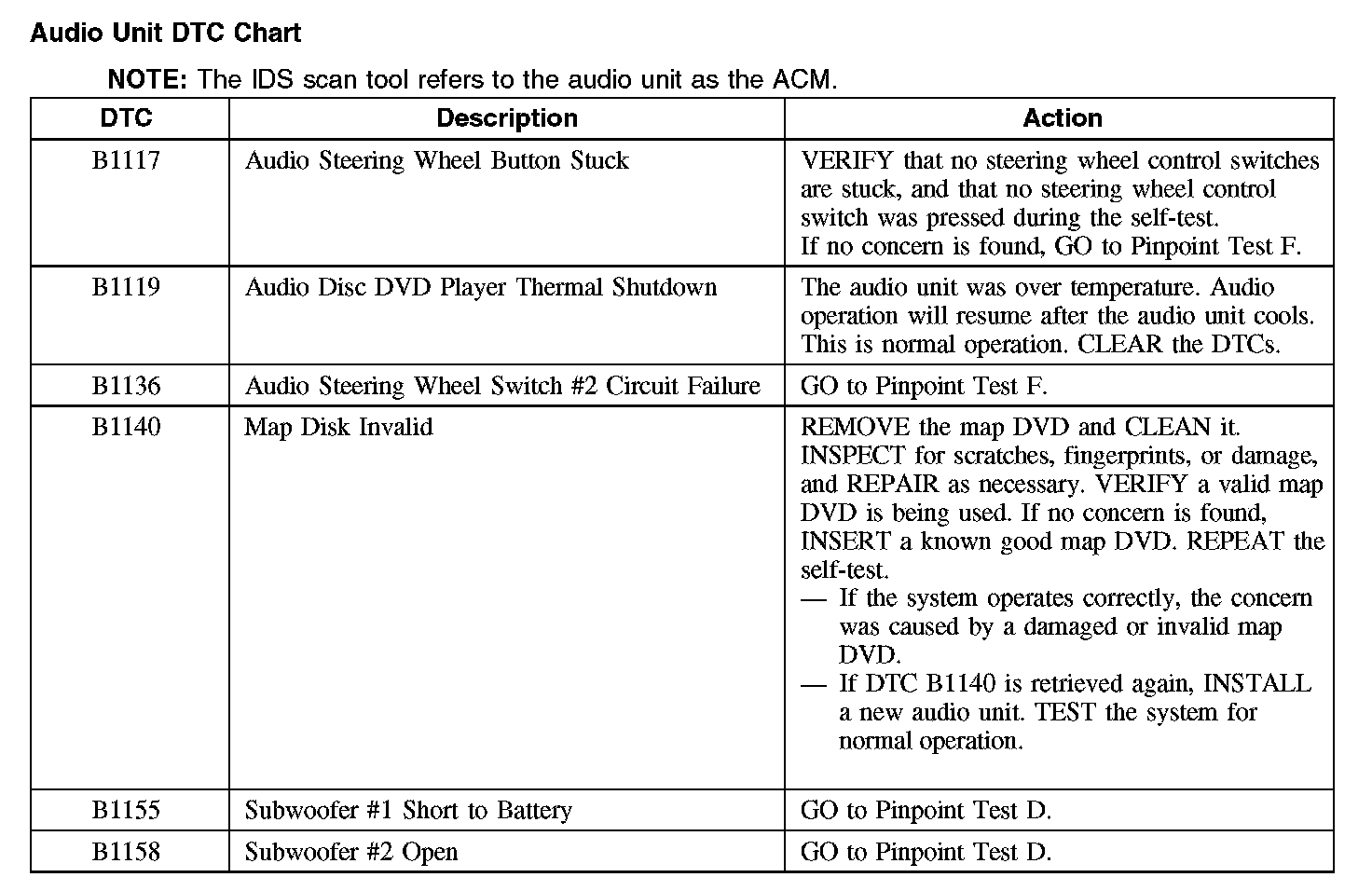

Audio Unit DTC Chart
Audio Unit DTC Chart
B1117-B1158:
B1318-B2924:
B2965 / C1992 / P0812 / U0140-U0255:
U0256-U2473:
