Test C: The Roof Opening Panel Rattles

PINPOINT TEST C: THE ROOF OPENING PANEL RATTLES

Normal Operation
When the roof opening panel glass is completely closed, it is flush with the roof panel. All components should be secured correctly.

This pinpoint test is intended to diagnose the following:
- Roof opening panel glass adjustment
- Roof opening panel lifter assemblies
- Roof opening panel tracks
- Roof opening panel drain channels and guides
- Roof opening panel shield
- Roof opening panel air deflector
- Roof opening panel assembly

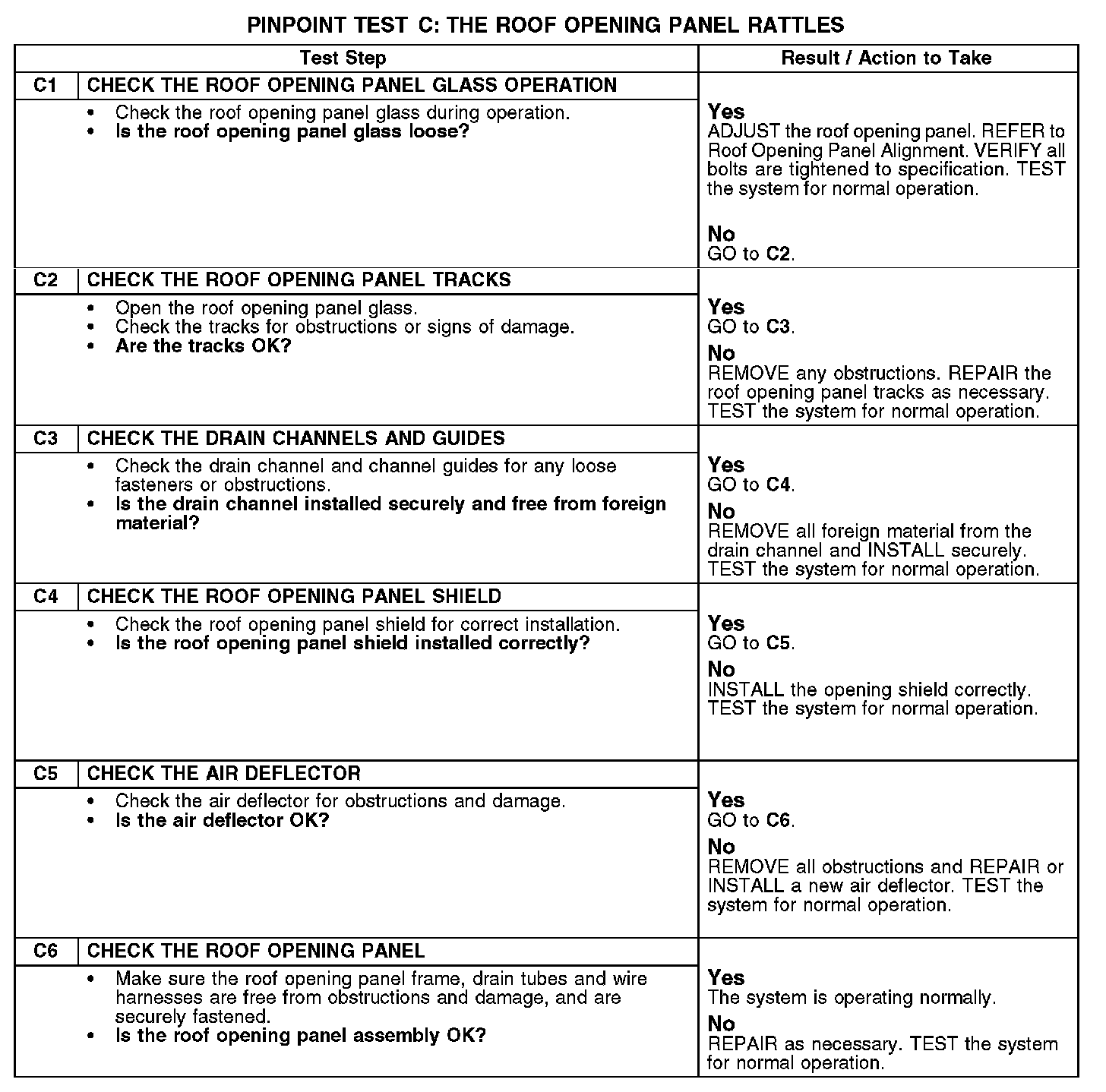

C1-C6:
