Oil Pressure Sender: Service and Repair

Engine Oil Pressure (EOP) Switch

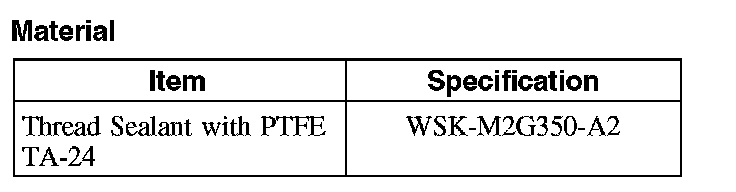

Material:

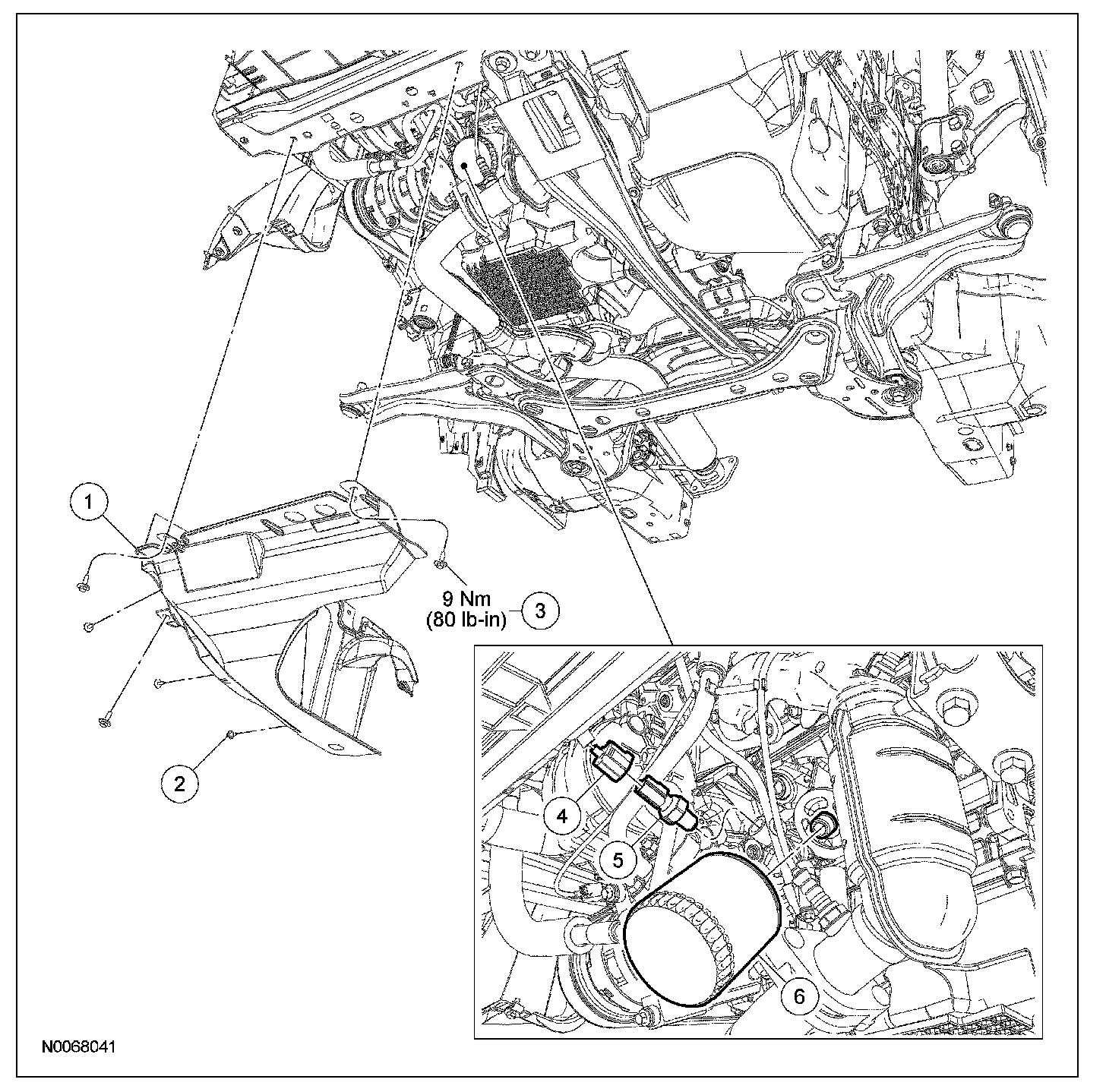

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

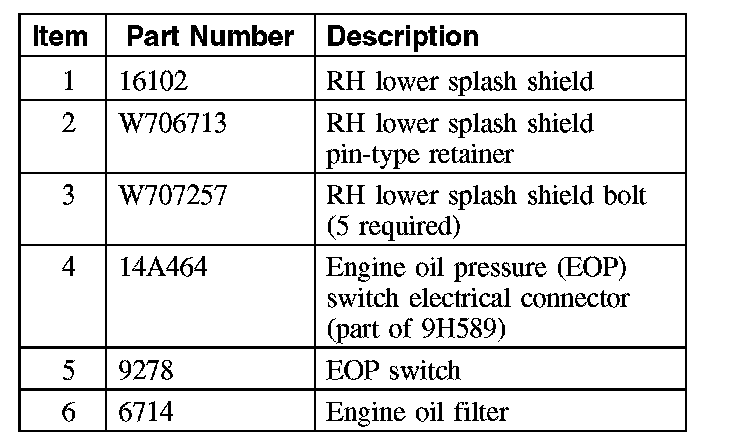

2. Remove the pin-type retainer, 5 bolts and the RH lower splash shield.
^ To install, tighten to 9 Nm (80 lb-in).

3. NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing.

Remove the engine oil filter.
^ To install, tighten to 5 Nm (44 lb-in) and then rotate an additional 180 degrees.
4. Disconnect the engine oil pressure (EOP) switch electrical connector.
5. Remove the EOP switch.
^ To install, tighten to 14 Nm (10 lb-ft).
6. To install, reverse the removal procedure.
^ Apply Thread Sealant with PTFE to the EOP switch threads.
