Test Q: Both Fog Lamps Are Inoperative
PINPOINT TEST Q: BOTH FOG LAMPS ARE INOPERATIVENormal Operation
The smart junction box (SJB) sends a reference signal to the headlamp switch through circuit CLF29 (BN) to monitor the fog lamp request. When the fog lamp switch is engaged, the voltage signal is routed to ground.
When the SJB detects the fog lamps on request, the SJB provides ground to the fog lamp relay coil (integral to the SJB). When the fog lamp relay is energized, voltage is routed through circuit CLF12 (BN/YE) to the fog lamps.
This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- Headlamp switch
- SJB
Q1-Q4:

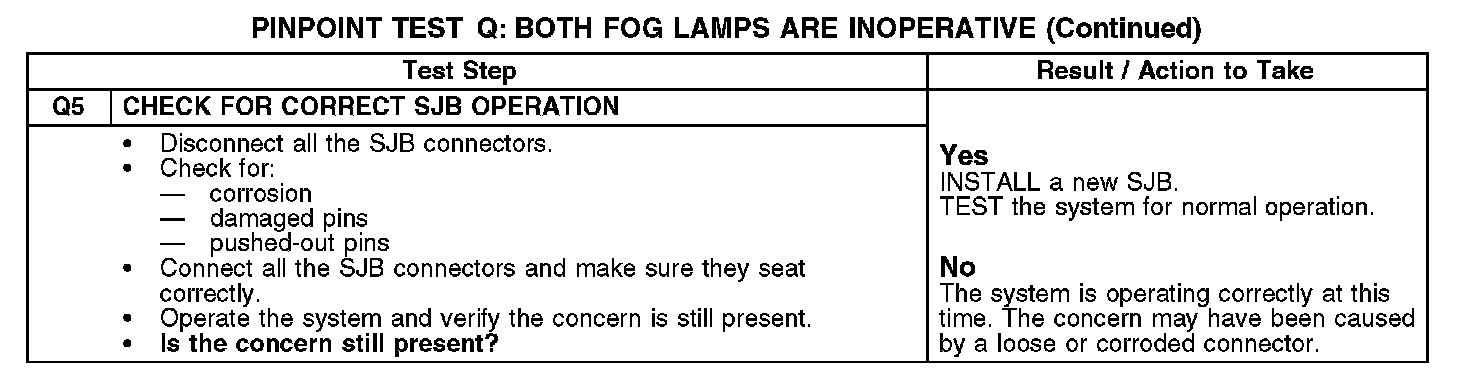

Q5:
