Diagnostic Trouble Code Tests and Associated Procedures

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DTC CHART

The DTCs can be retrieved from the RCM and the OCSM with a scan tool via the DLC.

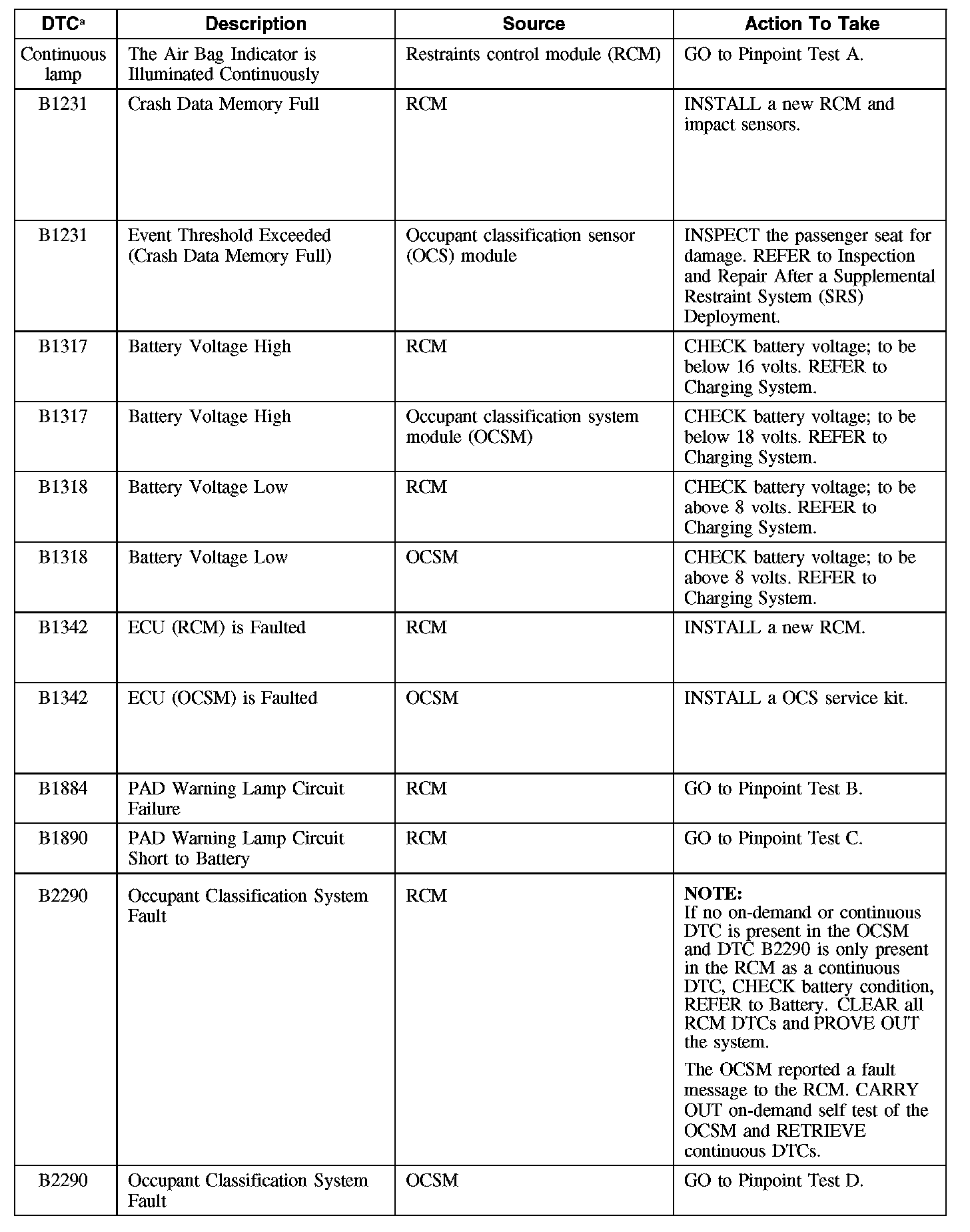

B1231-B2290:

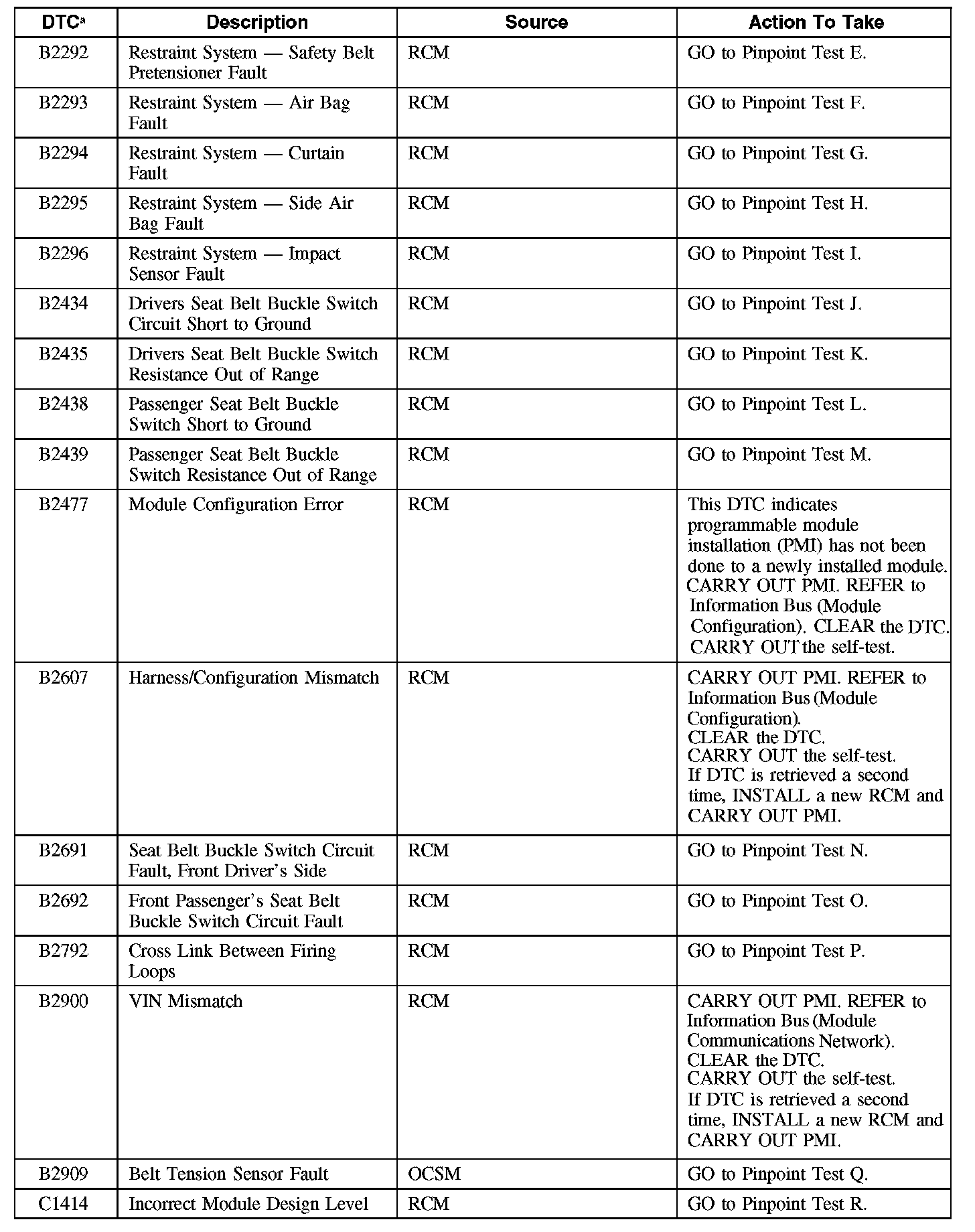

B2292-B2909 / C1414:

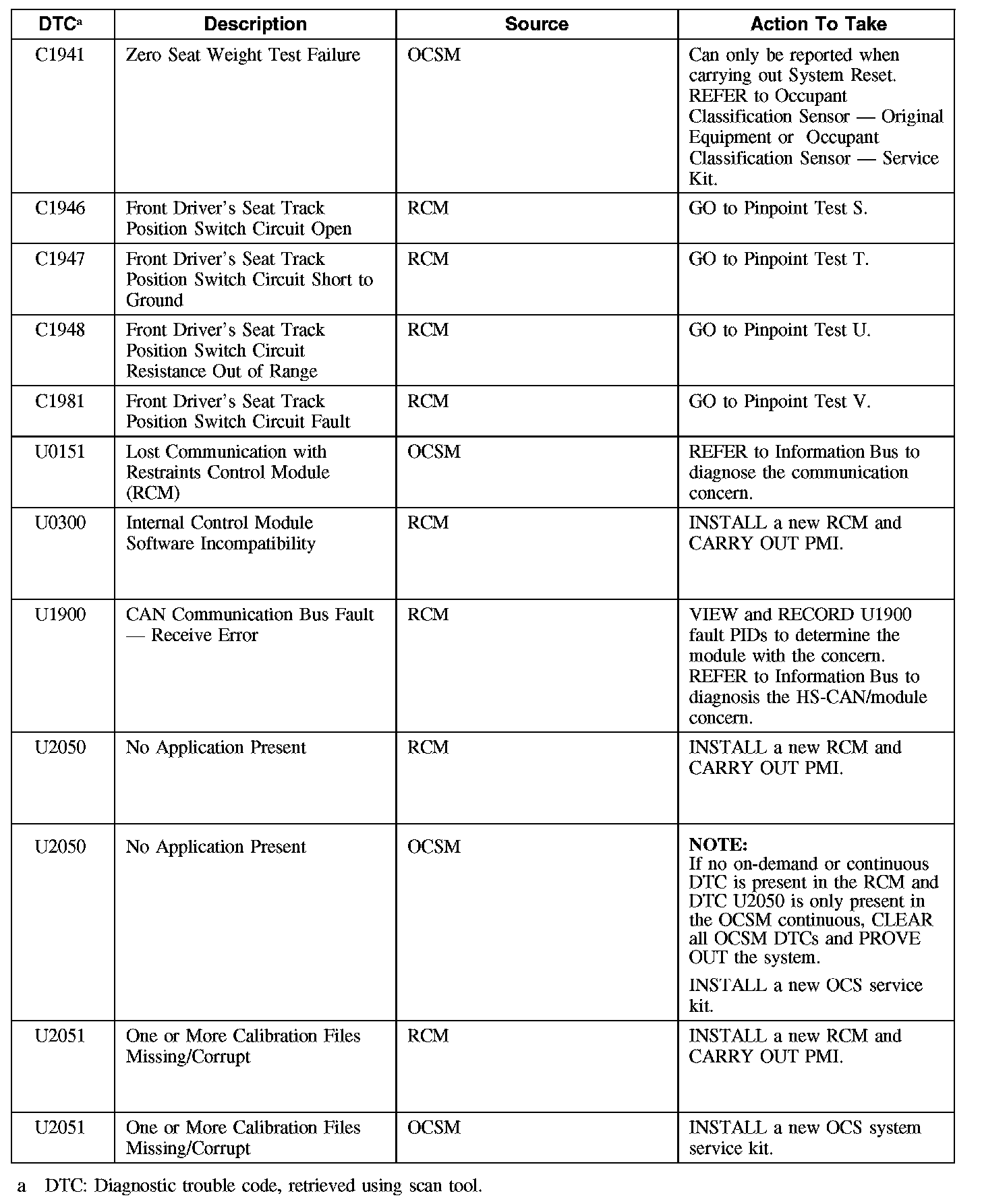

C1941-C1981 / U0151-U2051:
