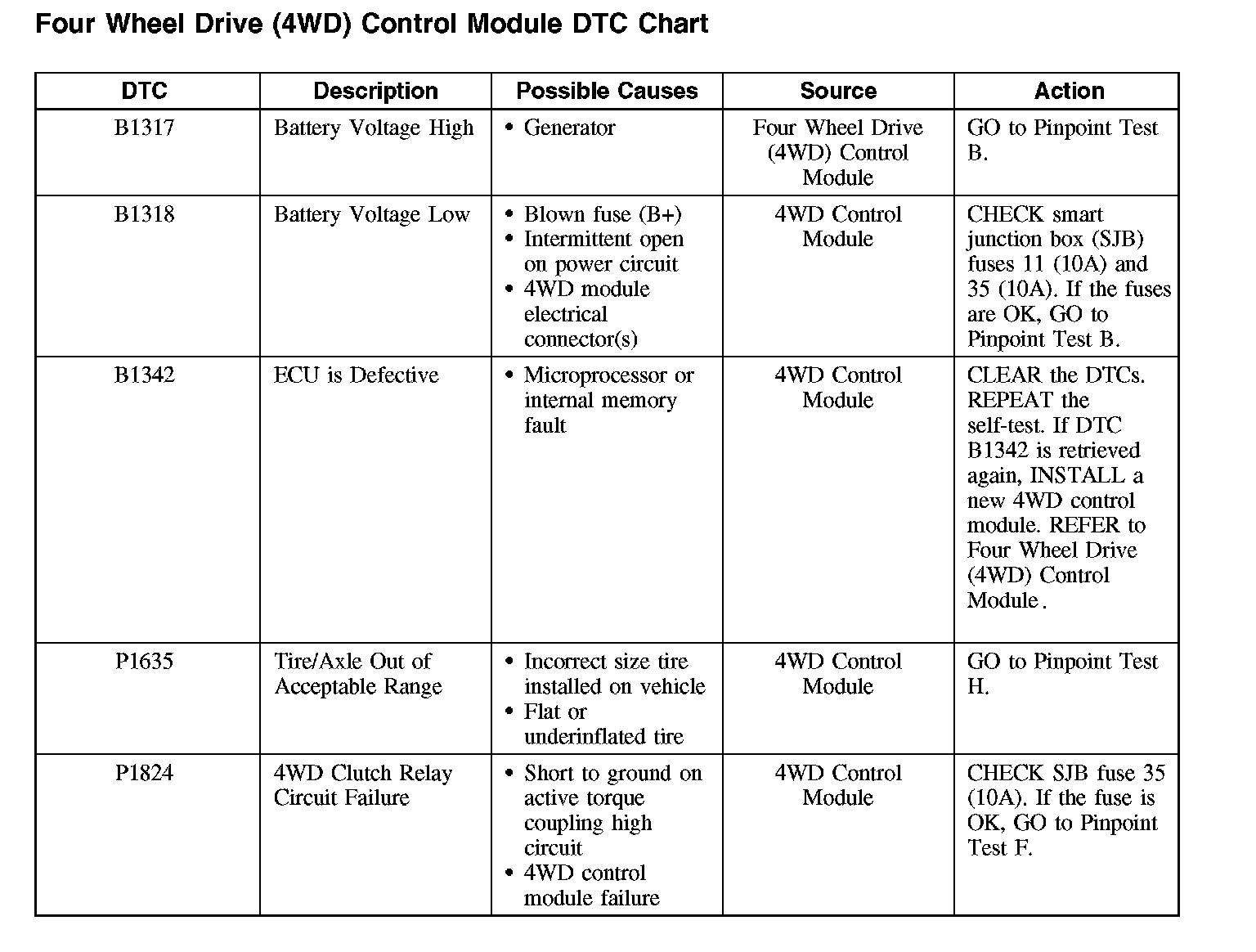

Four Wheel Drive (4WD) Control Module DTC Chart
B1317-B1342 / P1635-P1824:

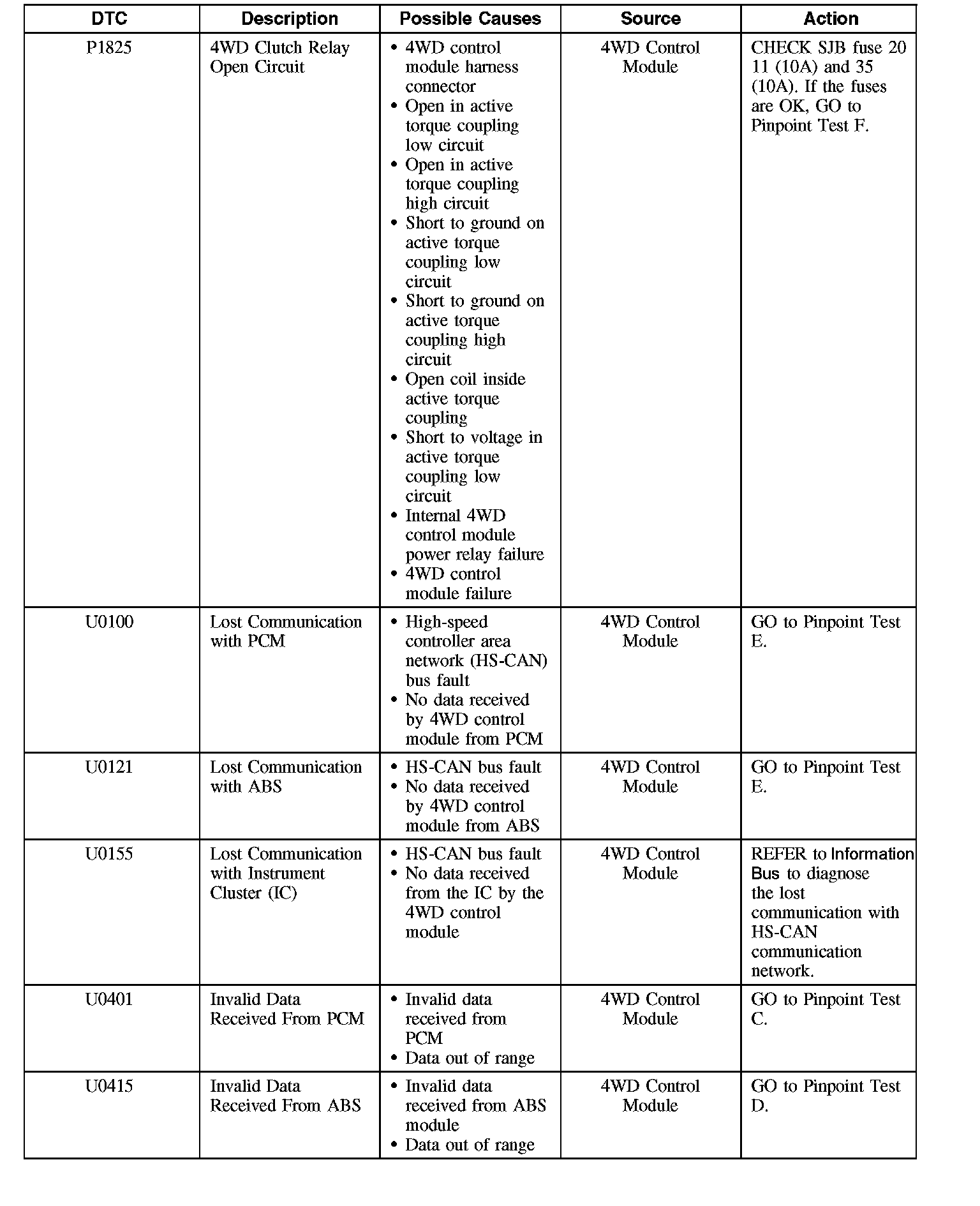

P1825 / U0100-U0415:

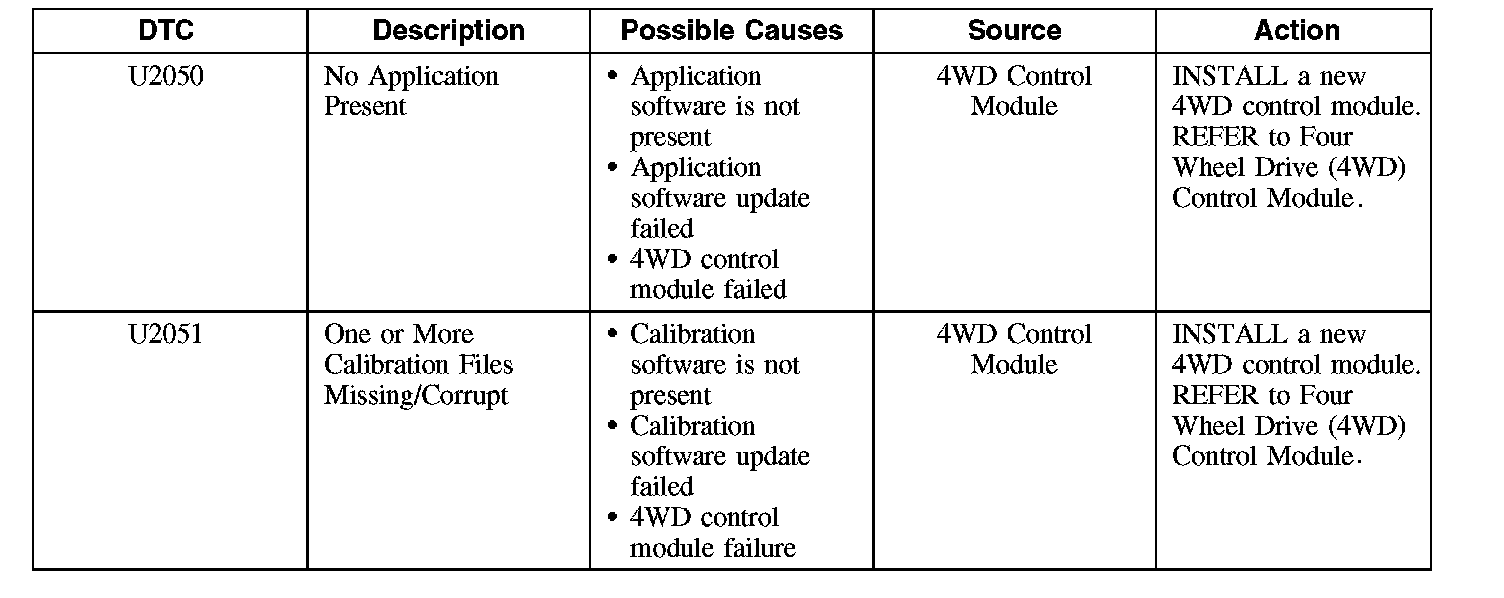

U2050-U2051:
