6R75 - Automatic Transmission

Forward/Overdrive Clutch Assembly - Disassembly





Disassembly
1. Remove the direct clutch outer shell retaining ring.





2. Remove the direct clutch hub.





3. Remove the forward clutch and sun shaft assembly.





4. NOTE: The bearing may stick in the forward clutch drum.

Remove the intermediate shaft bearing.





5. Remove the intermediate shaft assembly.

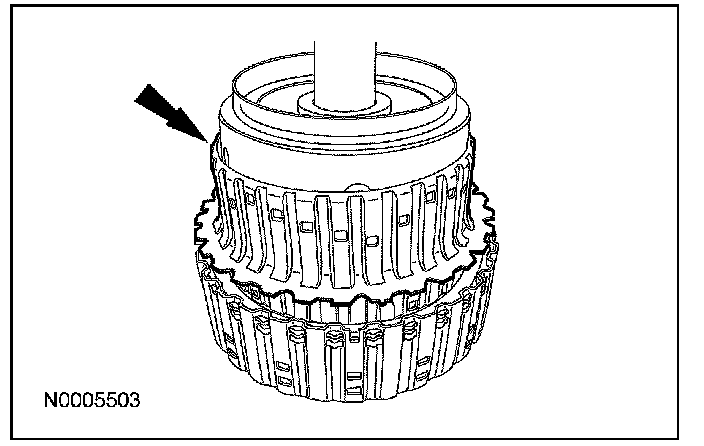

6. Remove the overdrive clutch pack from the forward clutch pack.
