Window Glass - Rear Door

WINDOW GLASS - REAR DOOR

Exploded View







Removal and Installation
1. Remove the rear door trim panel.

2. NOTE: LF shown, LR and RR are similar.

Unlock the tabs and remove the window control switch from the door trim panel.

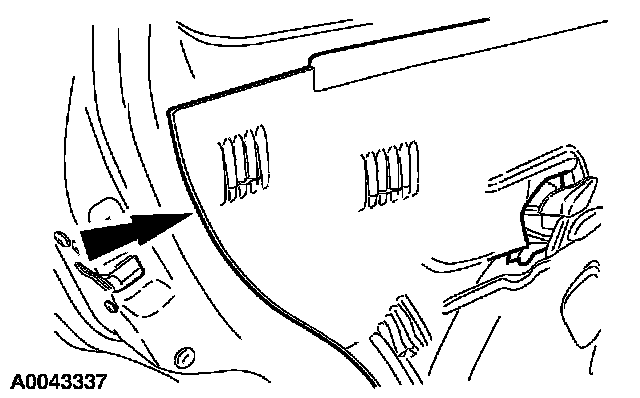

3. Position back the rear door weathershield.







4. Connect the window control switch.
5. Lower the window glass to access the window glass clamp bolts.
6. Remove the inside glass weatherstrip.







7. Remove the rear door glass channel bolt.
- To install, tighten to 11 Nm (8 lb-ft).







8. Loosen the window glass clamp bolts and remove the rear door window glass.
- To install, tighten to 11 Nm (8 lb-ft).

9. To install, reverse the removal procedure.
