Seat Cushion - Second Row, 20 Percent

SEAT CUSHION - SECOND ROW, 20 PERCENT

Part 1:

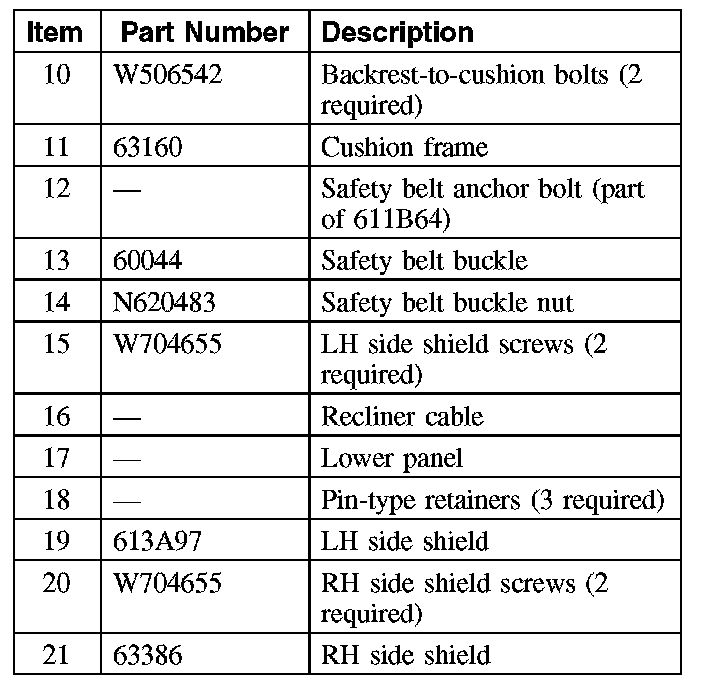

Part 2:

Disassembly and Assembly
1. Remove the 20 percent seat.
2. Remove the 20 percent seat backrest.
3. Remove the 2 screws and LH side shield.
4. Remove the nut and safety belt buckle.
- To install, align the anti-rotation tab.
- To install, tighten to 55 Nm (41 lb-ft).

5. Release the cushion trim cover front J-clip.
6. Remove the 2 riser-to-cushion frame bolts and cushion frame.
- To install, tighten to 30 Nm (22 lb-ft).

7. Release the hook-and-loop strip and remaining cushion J-clips.
8. Remove the cushion frame from the foam pad and trim cover.

9. CAUTION: Use care when separating the seat cushion trim cover from the hook-and-loop strip, or the hook-and-loop strip may be torn from the seat cushion foam.

Release the hook-and-loop strips and invert the cushion trim cover to the row of hog rings.

10. Remove the hog rings and cushion trim cover.
11. To assemble, reverse the disassembly procedure.
