Front Door: Service and Repair

DOOR

Removal and Installation







1. Disconnect the front door electrical connector at the A-pillar.

2. CAUTION:
- To minimize the possibility of cross threading, hand start all fasteners during the installation.
- To avoid damaging the door, this step requires an assistant.

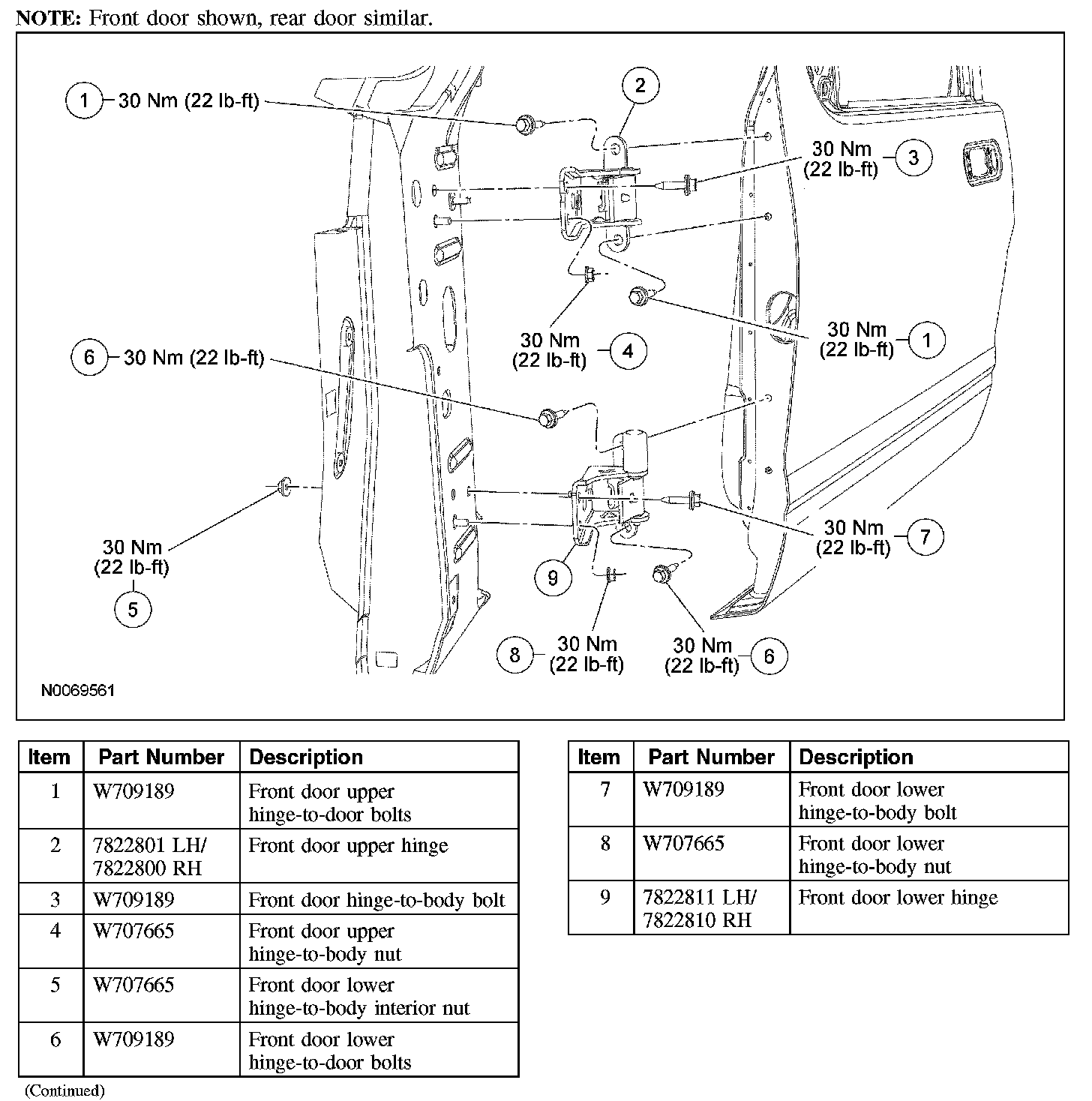

Make the position of each hinge and remove the hinge-to-door bolts.
- To install, tighten to 30 Nm (22 lb-ft).







3. Remove the front door.
