Test B: A Single Mirror Is Inoperative

PINPOINT TEST B: A SINGLE MIRROR IS INOPERATIVE

Normal Operation
The exterior mirror control switch uses circuit CPM23 (GY) as the common circuit for both exterior mirror up/down and right/left movement.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Exterior mirror control switch
- Exterior mirror motor
- Exterior mirror

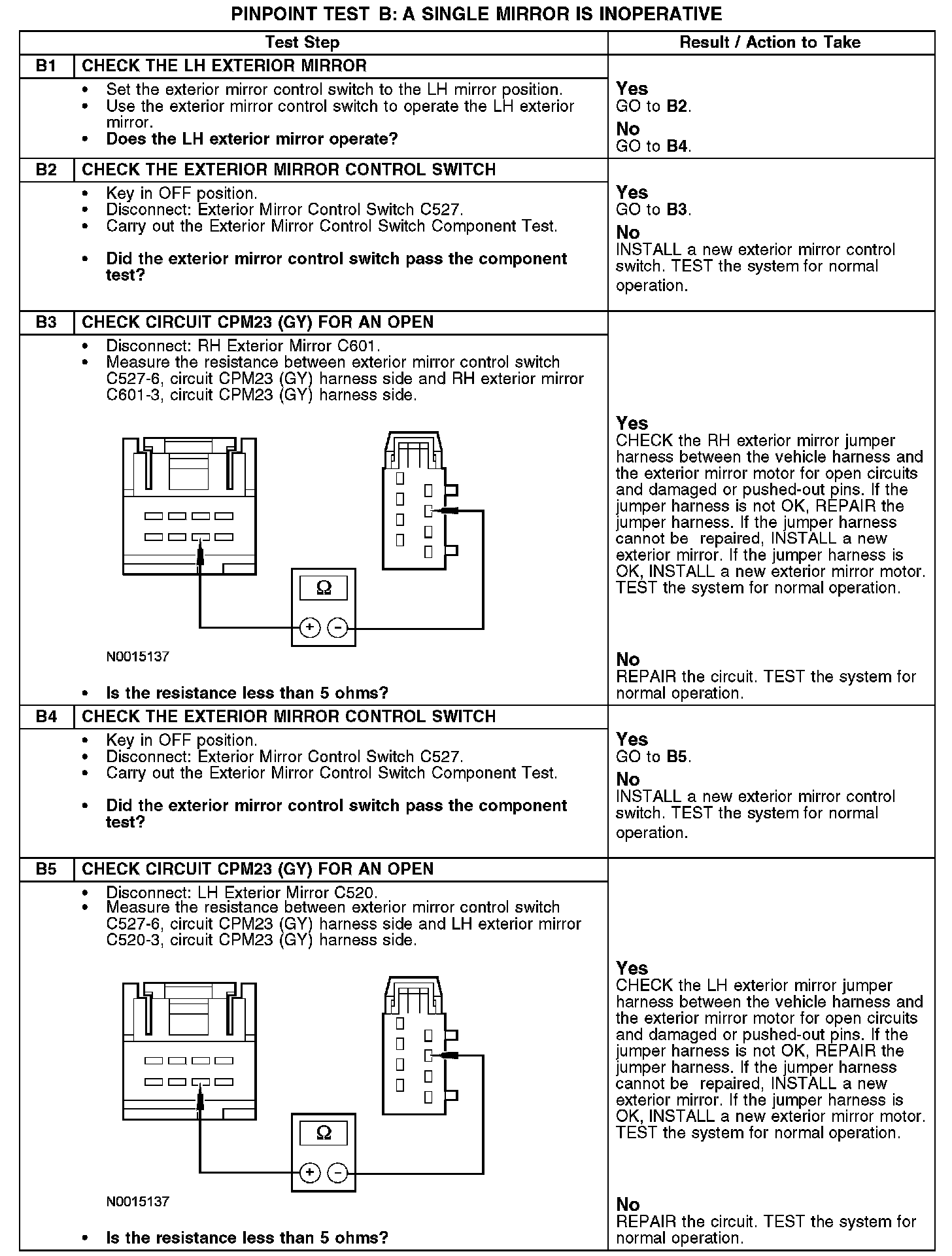

B1-B5:
