Seat Cushion - Front

SEAT CUSHION - FRONT

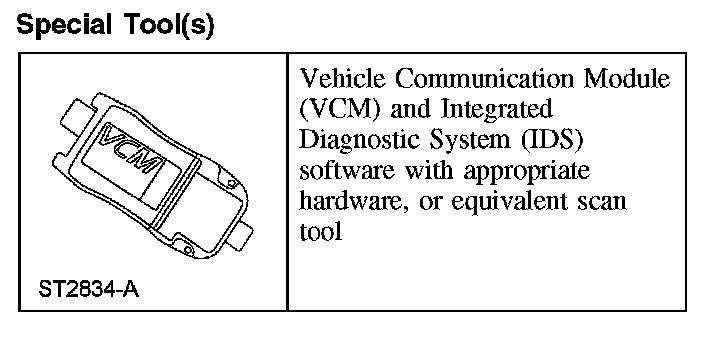

Special Tool(s)

Special Tool(s):

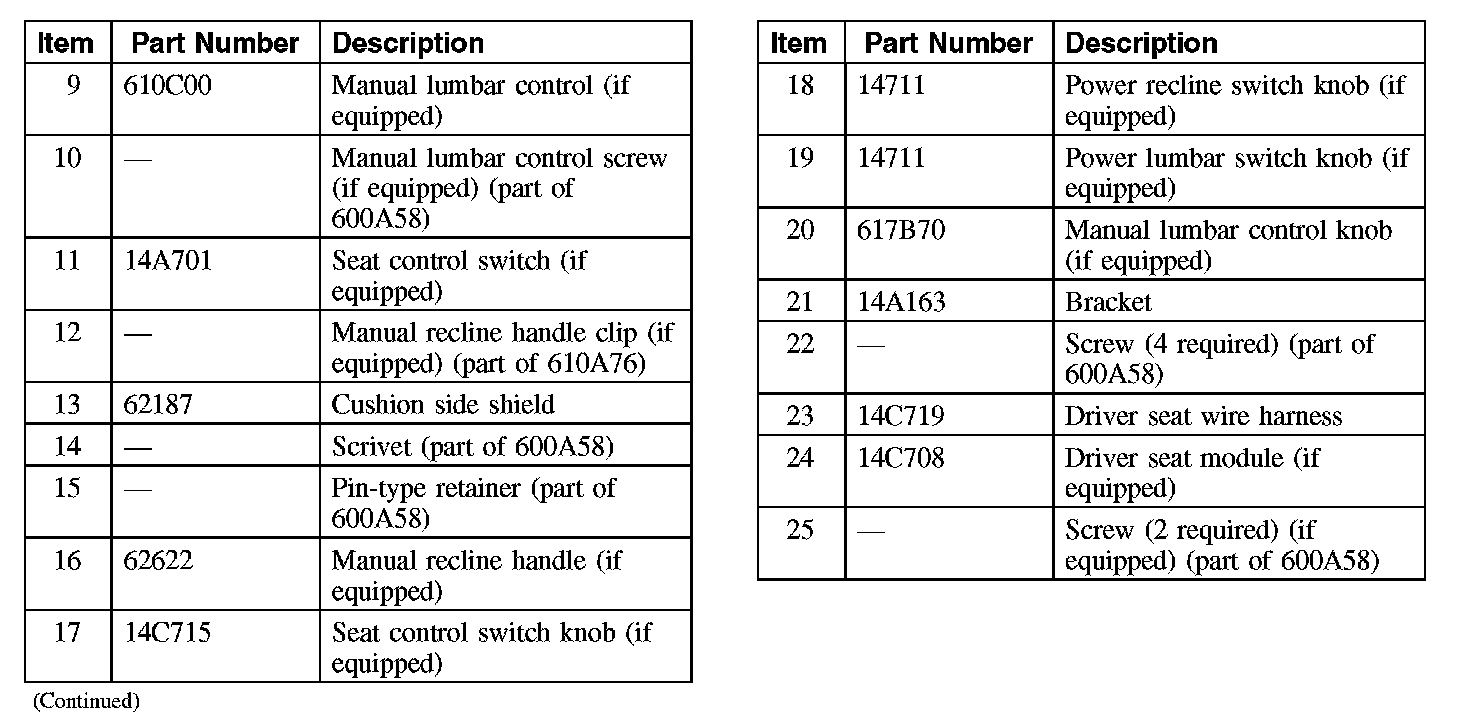

Driver Seat Cushion (Part 1):

Driver Seat Cushion (Part 2):

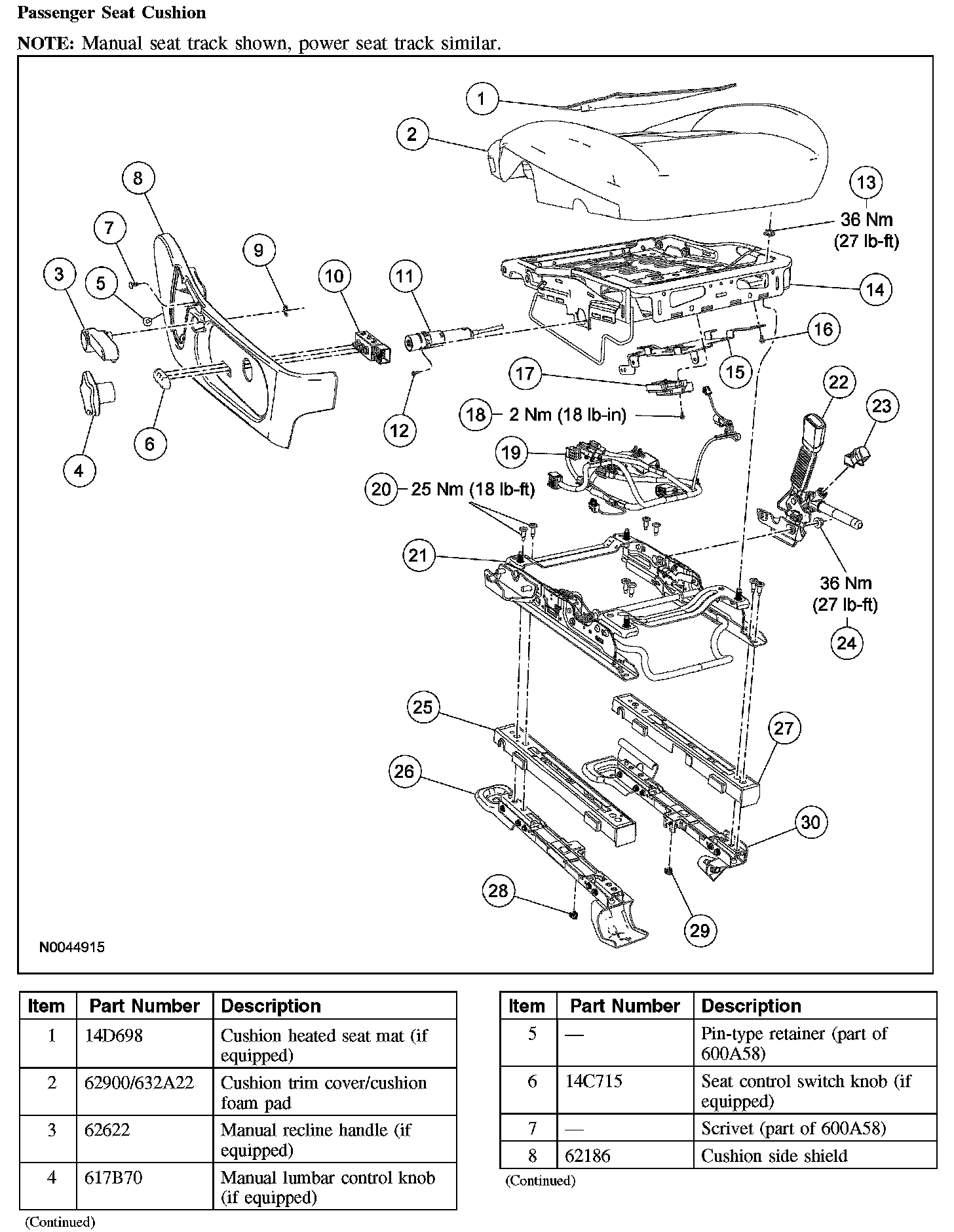

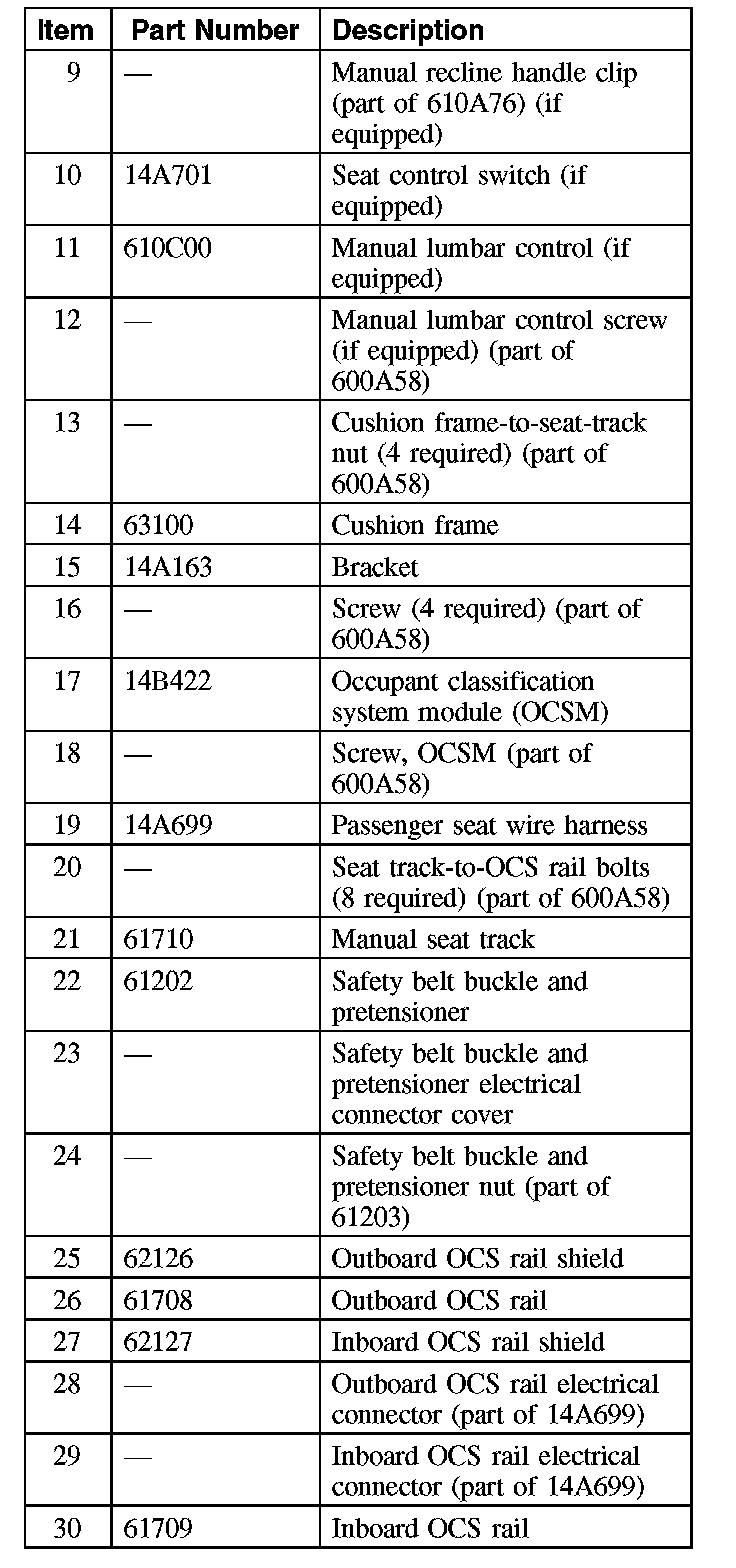

Passenger Seat Cushion (Part 1):

Passenger Seat Cushion (Part 2):

Disassembly and Assembly

WARNING:
- Never probe the electrical connectors on safety belt buckle/retractor pretensioners or adaptive load limiting retractors. Failure to follow this instruction may result in the accidental deployment of the safety belt pretensioners or adaptive load limiting retractors, which increases the risk of serious personal injury or death.
- Never probe the electrical connectors on air bag, safety canopy or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.

NOTE:
- The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

All seats
1. Remove the front seat.
2. Remove the seat track.
3. Remove the front seat backrest.

4. CAUTION: Use care when separating the seat back trim cover from the hook-and-loop strip, or the hook-and-loop strip can be torn from the backrest foam pad.

Release the hook-and-loop strips, remove the hog rings and separate the cushion trim cover from the cushion foam pad.

Seat with heat
5. If necessary, remove the cushion heated seat mat and route out the wire harness through the cushion foam pad opening.

All seats
6. To assemble, reverse the disassembly procedure.
7. Install the front seat backrest.
8. Install the seat track.
9. Install the front seat. If a passenger seat has been serviced, do not prove out the SRS at this time.

Passenger seat
10. Carry out the Occupant Classification Sensor (OCS) System Zero Seat Weight Test and prove out the SRS.
