Radiator: Service and Repair

Radiator




















Removal and Installation

All vehicles
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Drain the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding.

Vehicles equipped with a 4.6L (3V) engine
3. Remove the air cleaner outlet pipe. For additional information, refer to Fuel Delivery and Air Induction.

All vehicles
4. Remove the coolant expansion tank.

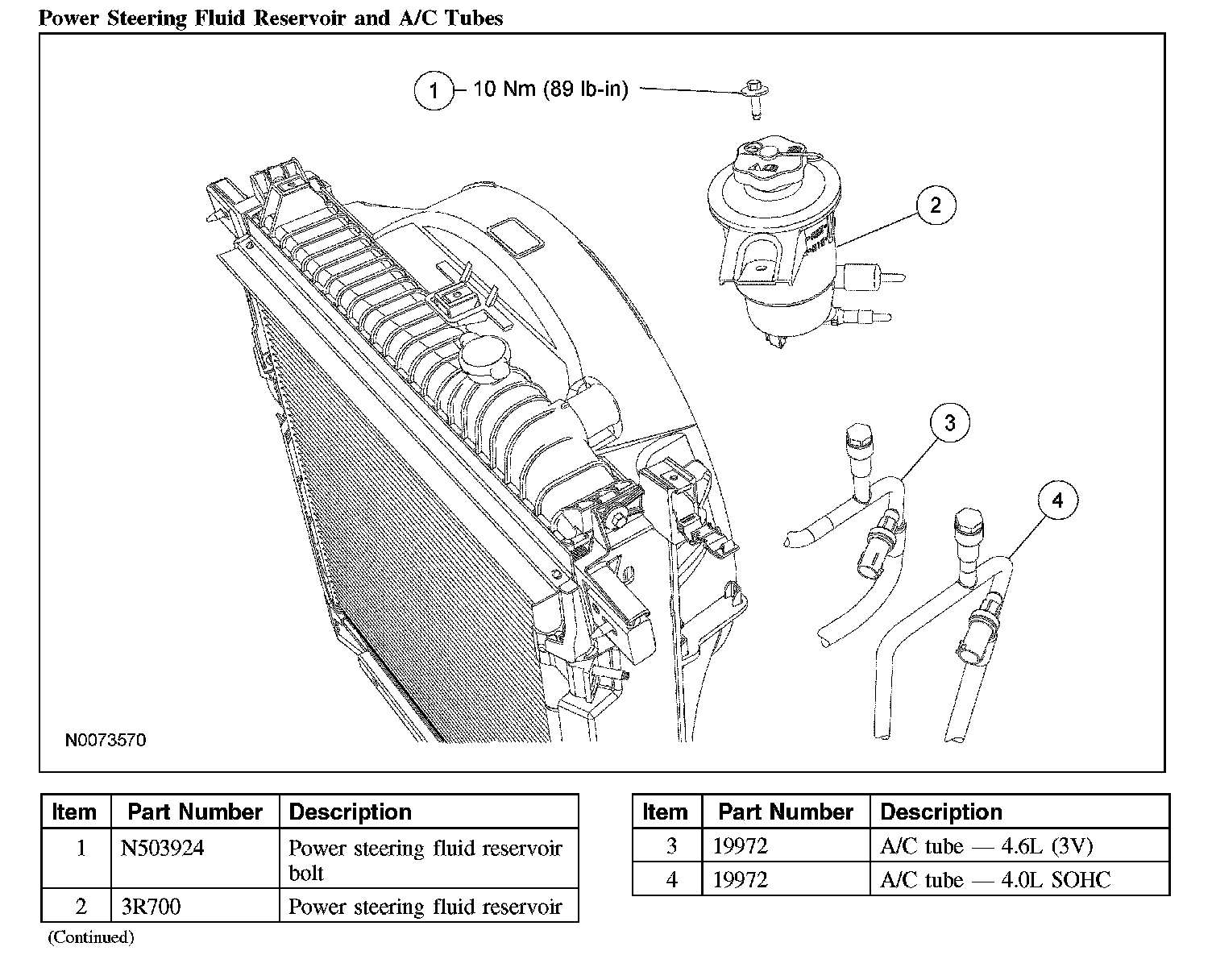

5. Remove the bolt and position the power steering fluid reservoir aside.
^ To install, tighten to 10 Nm (89 lb-in).

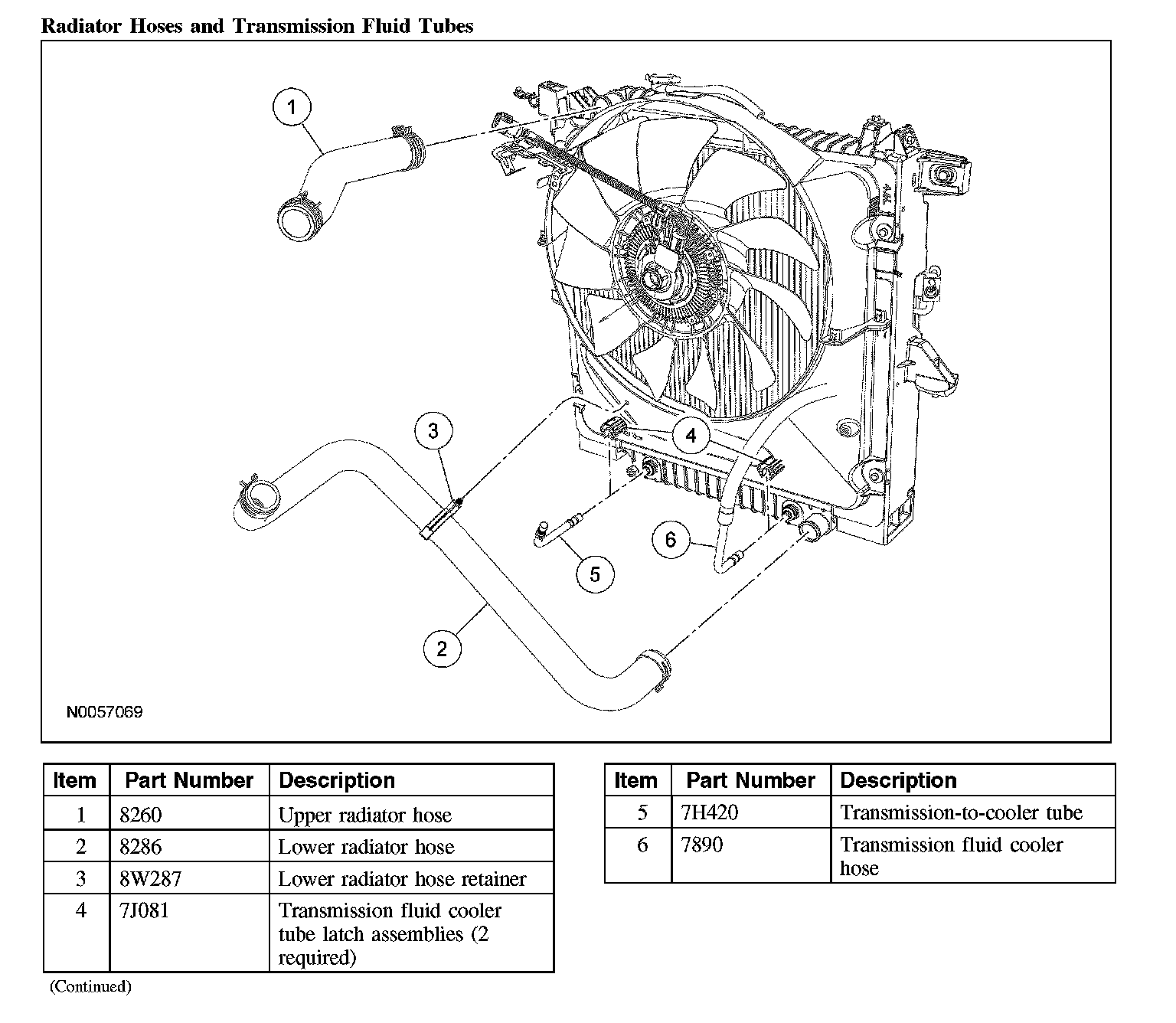

6. Release the clamp and disconnect the upper radiator hose.
7. Release the clamp and disconnect the lower radiator hose.
8. Detach the lower radiator hose retainer from the lower fan shroud.
9. Detach the transmission cooler hose retainer from the RH radiator support bracket.

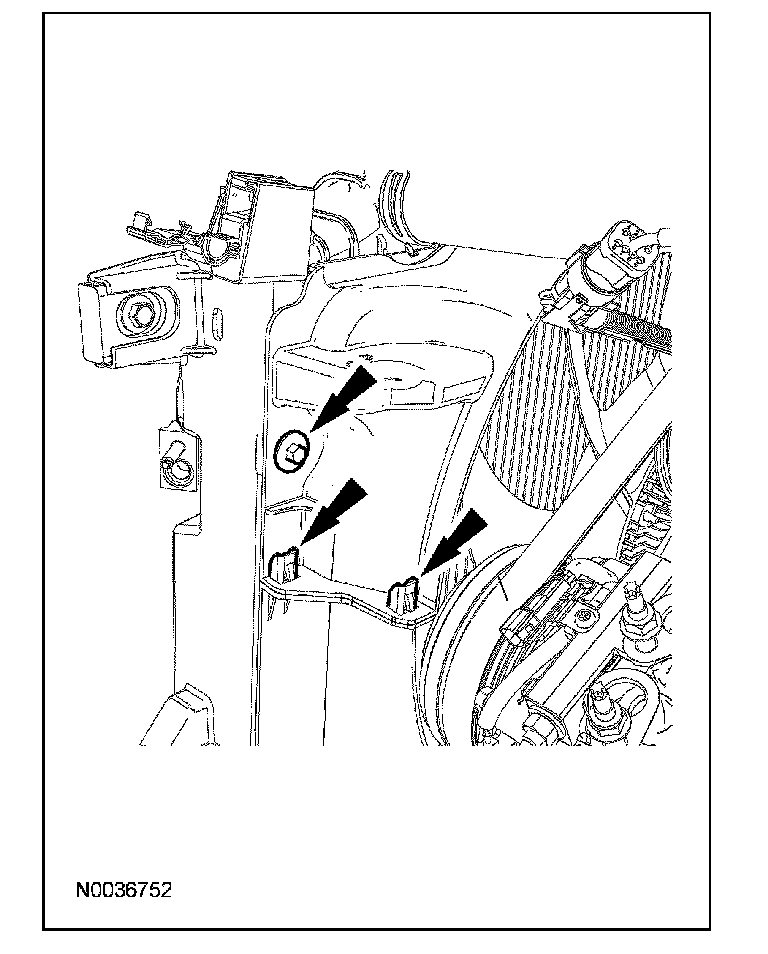

10. Remove the 4 lower radiator air deflector pushpins.

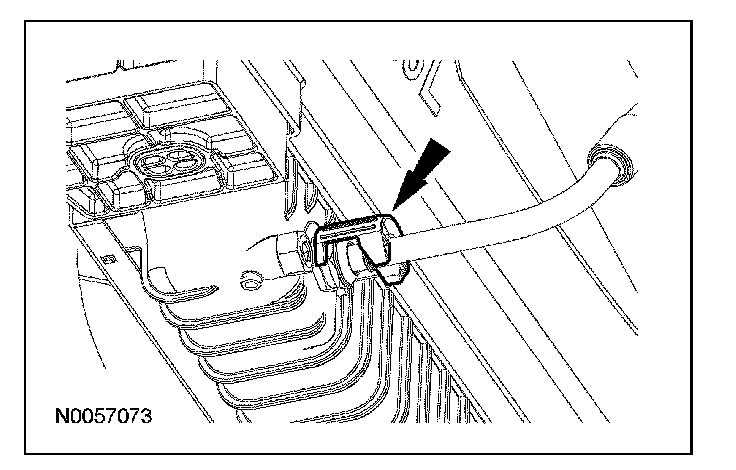

11. Remove the latch assemblies from the transmission cooler tubes.

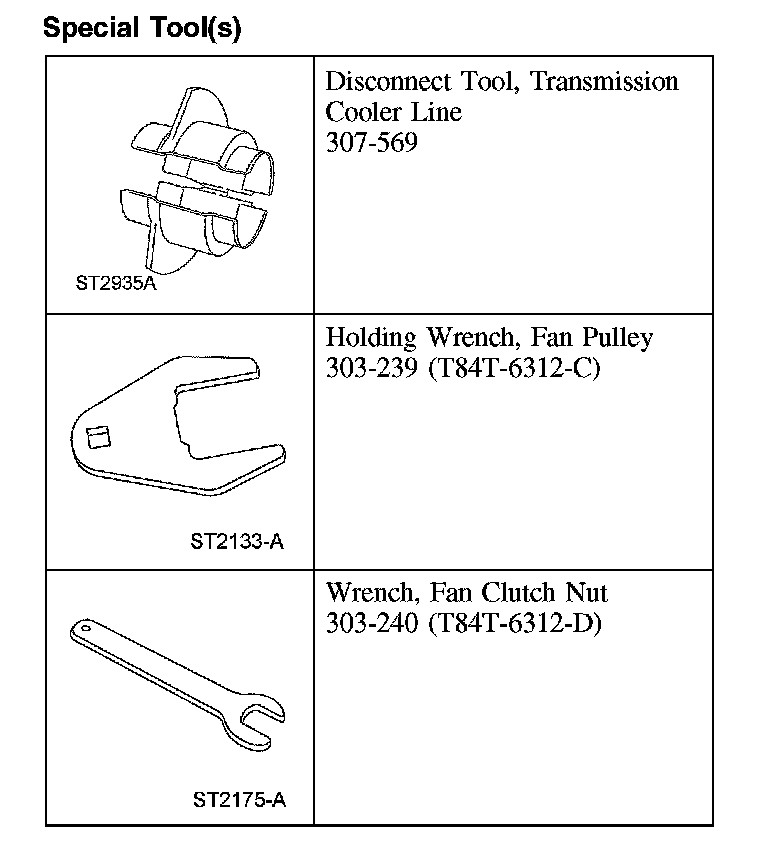

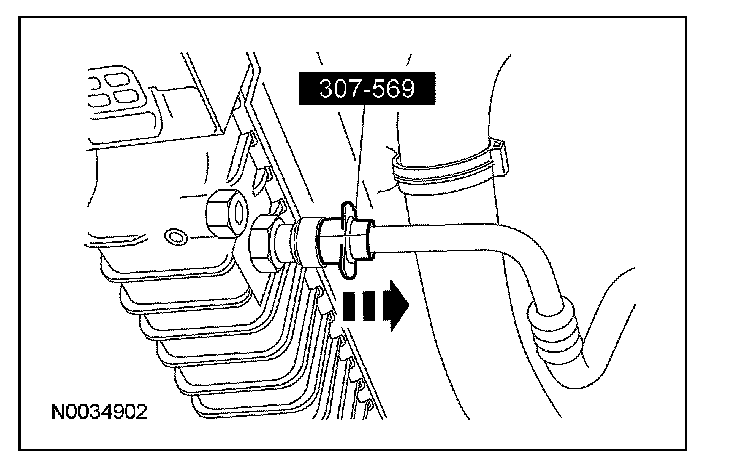

12. Using the special tool, disconnect the transmission cooler tubes.

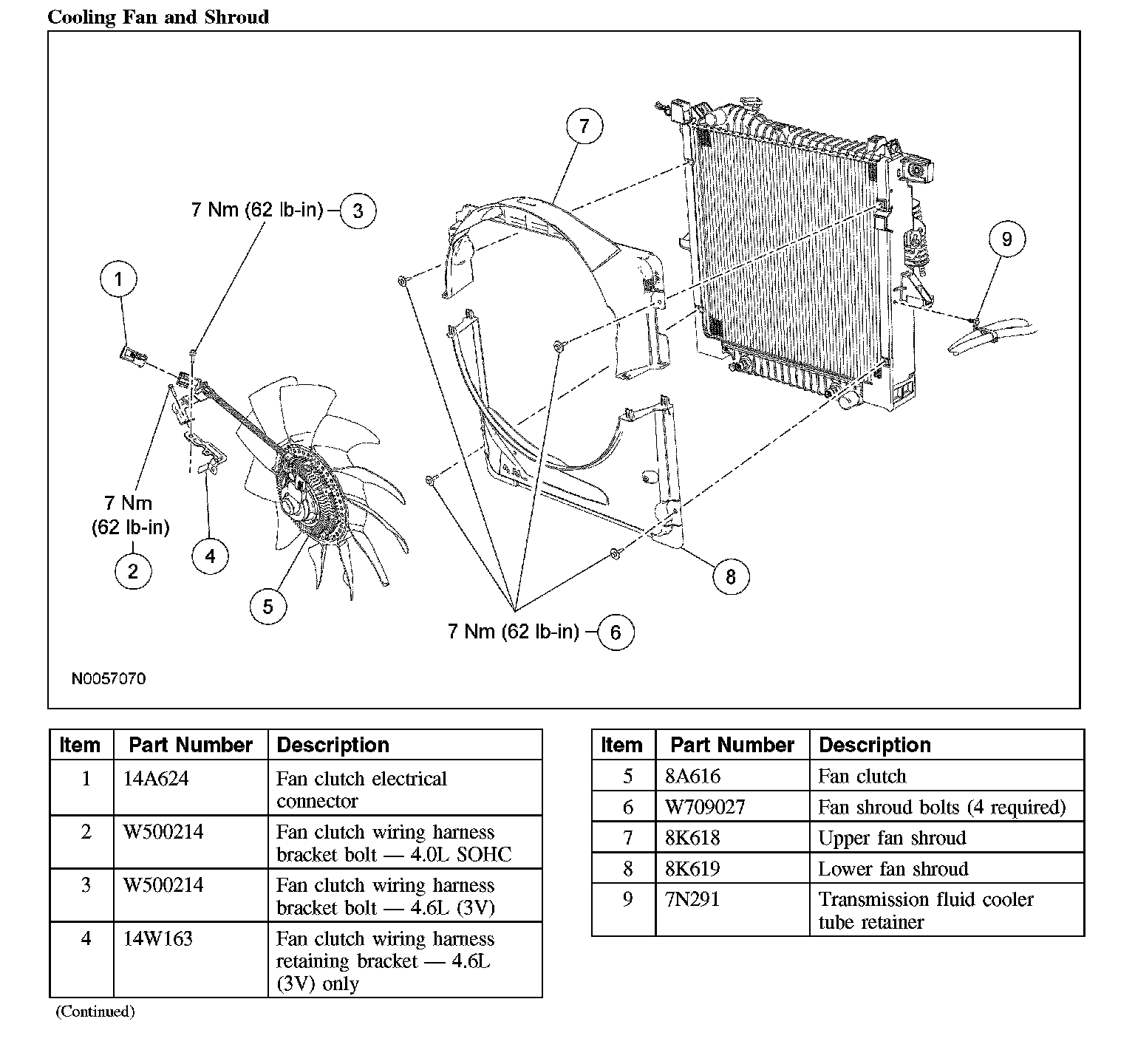

13. Remove the upper fan shroud bolts, then unclip the upper fan shroud from the lower fan shroud and remove the upper fan shroud.
^ To install, tighten to 7 Nm (62 lb-in).

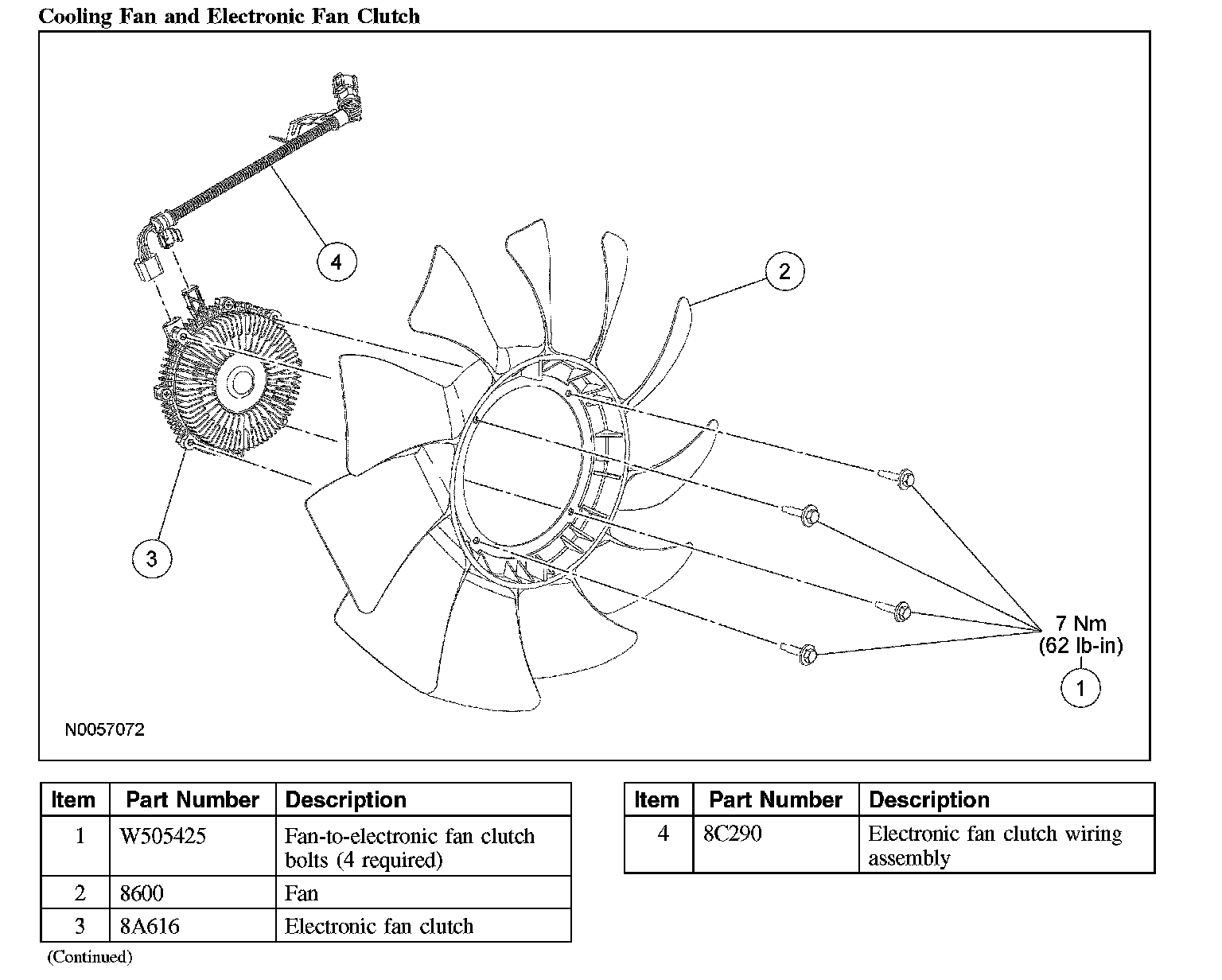

14. Disconnect the fan clutch electrical connector.
15. Remove the fan clutch wiring harness bracket bolt.
^ To install, tighten to 7 Nm (62 lb-in).

16. CAUTION: Do not side load the cooling fan clutch coil or the cooling fan clutch coil may be damaged.

NOTE: 4.6L (3V) engine shown, 4.0L SOHC engine similar.

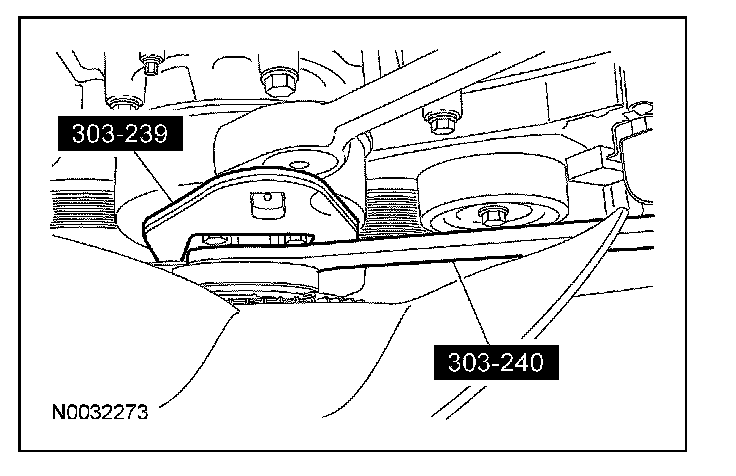

Using the special tools, remove the cooling fan.
^ To install, tighten to 55 Nm (41 lb-ft).





17. Remove the bolts and the lower fan shroud.
18. Detach the A/C tube from the retainer on the radiator support bracket.
19. Remove the radiator support bracket-to-radiator support bracket bolts.
^ To install, tighten to 15 Nm (11 lb-ft).
20. Remove the radiator top seal.

21. NOTE: Do not remove the A/C condenser seals.

Deflect the A/C condenser seals and remove the A/C condenser-to-radiator support bracket bolts.
^ Position the A/C condenser aside.
^ To install, tighten to 12 Nm (9 lb-ft).
22. Remove the radiator and the radiator support brackets as an assembly.
23. Remove the bolts and separate the radiator support brackets and the radiator.
^ To install, tighten to 12 Nm (9 lb-ft).
24. To install, reverse the removal procedure.
