Oil Pump: Service and Repair

Oil Pump

Engine Lubrication Components - Exploded View:

1. Remove the cylinder block cradle.
2. Remove the bolts and the oil pump.
^ To install, tighten to 19 Nm (14 lb-ft).
3. To install, reverse the removal procedure.

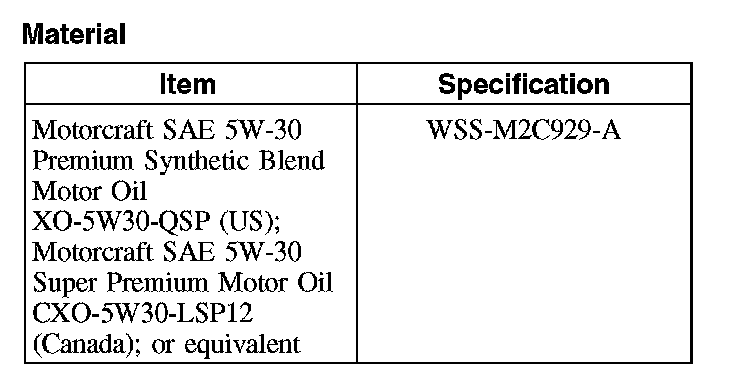

^ Lubricate the oil pump with clean engine oil.
