Home >> Ford >> 2008 >> Explorer 4WD V6-4.0L >> Repair and Diagnosis >> Lighting and Horns >> Cargo Lamp >> Diagrams >> Cargo Lamp Assembly

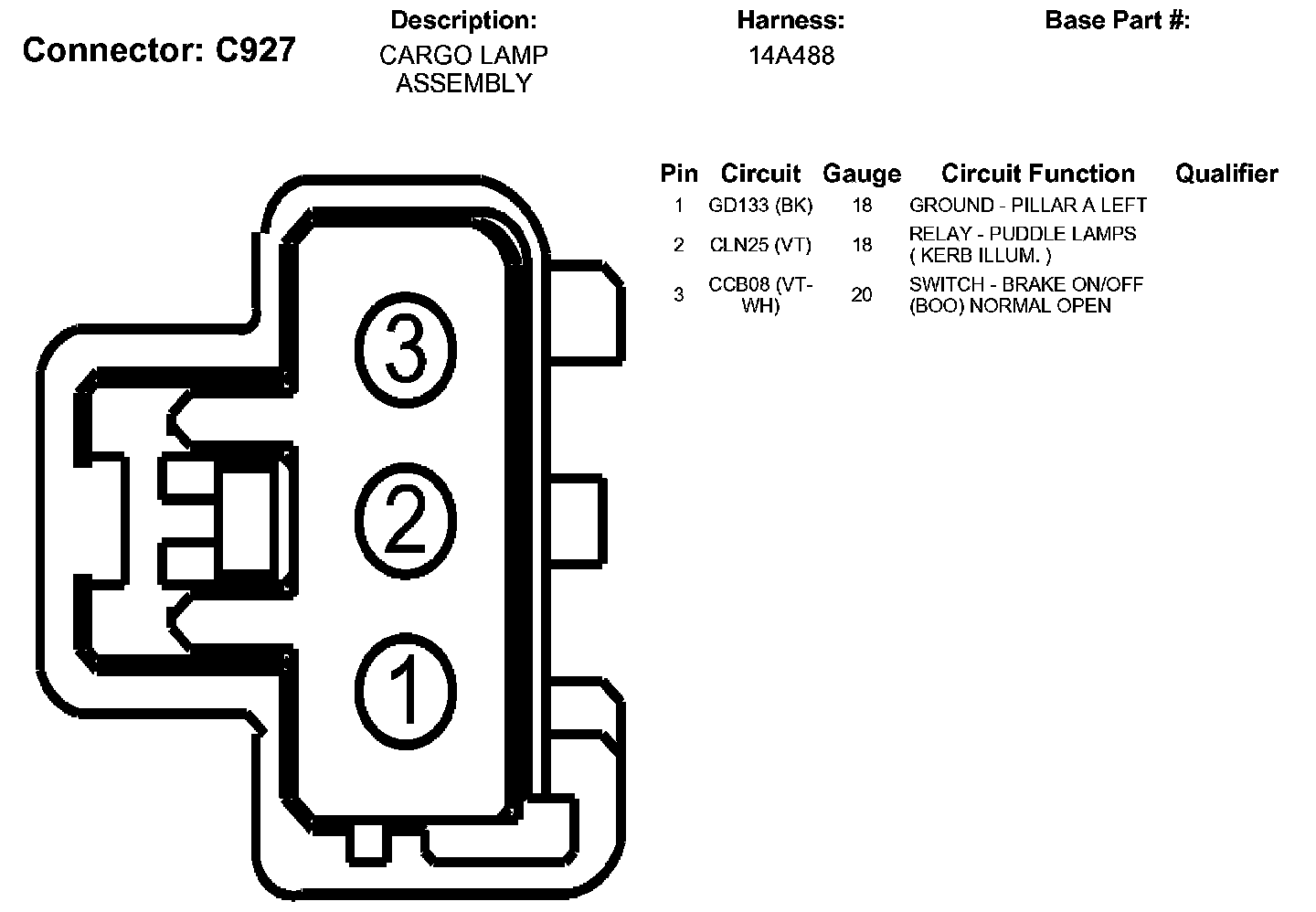

Cargo Lamp Assembly

C927:
