Tests AB: DTC C1981 - Front Driver's Seat Track Position Switch Circuit Fault

PINPOINT TEST AB: DTC C1981 - FRONT DRIVER'S SEAT TRACK POSITION SWITCH CIRCUIT FAULT

Normal Operation
The restraints control module (RCM) monitors the driver seat track position sensor circuits. If the RCM detects a short to battery, it will store DTC C1981 in memory and send a message to the instrument cluster (IC) module to illuminate the air bag warning indicator.

- DTC C1981 Front Driver's Seat Track Position Switch Circuit Fault - If the RCM detects a short to battery on the driver seat track position sensor circuit, it will set this DTC.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- RCM

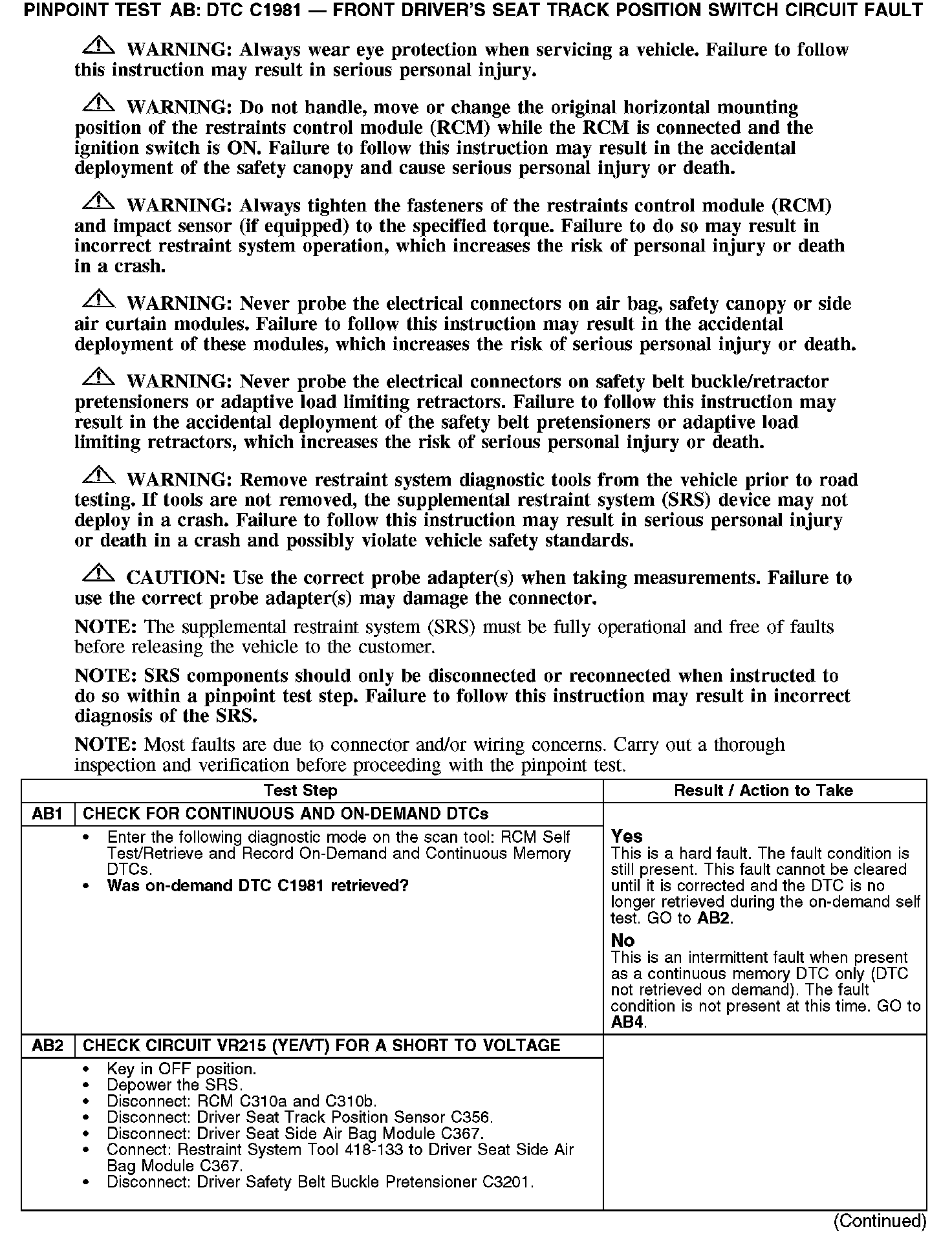

AB1-AB2:

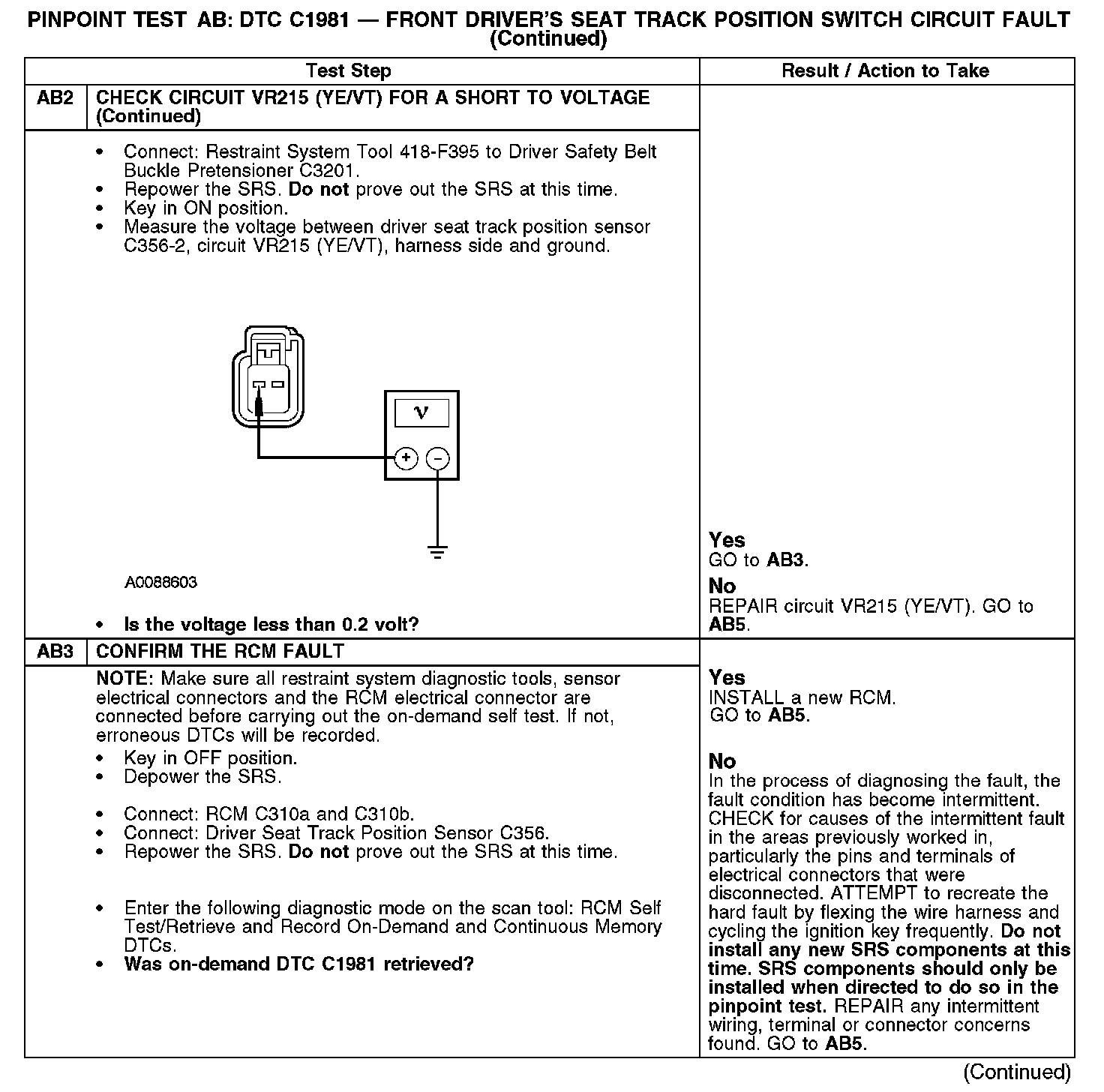

AB2-AB3:

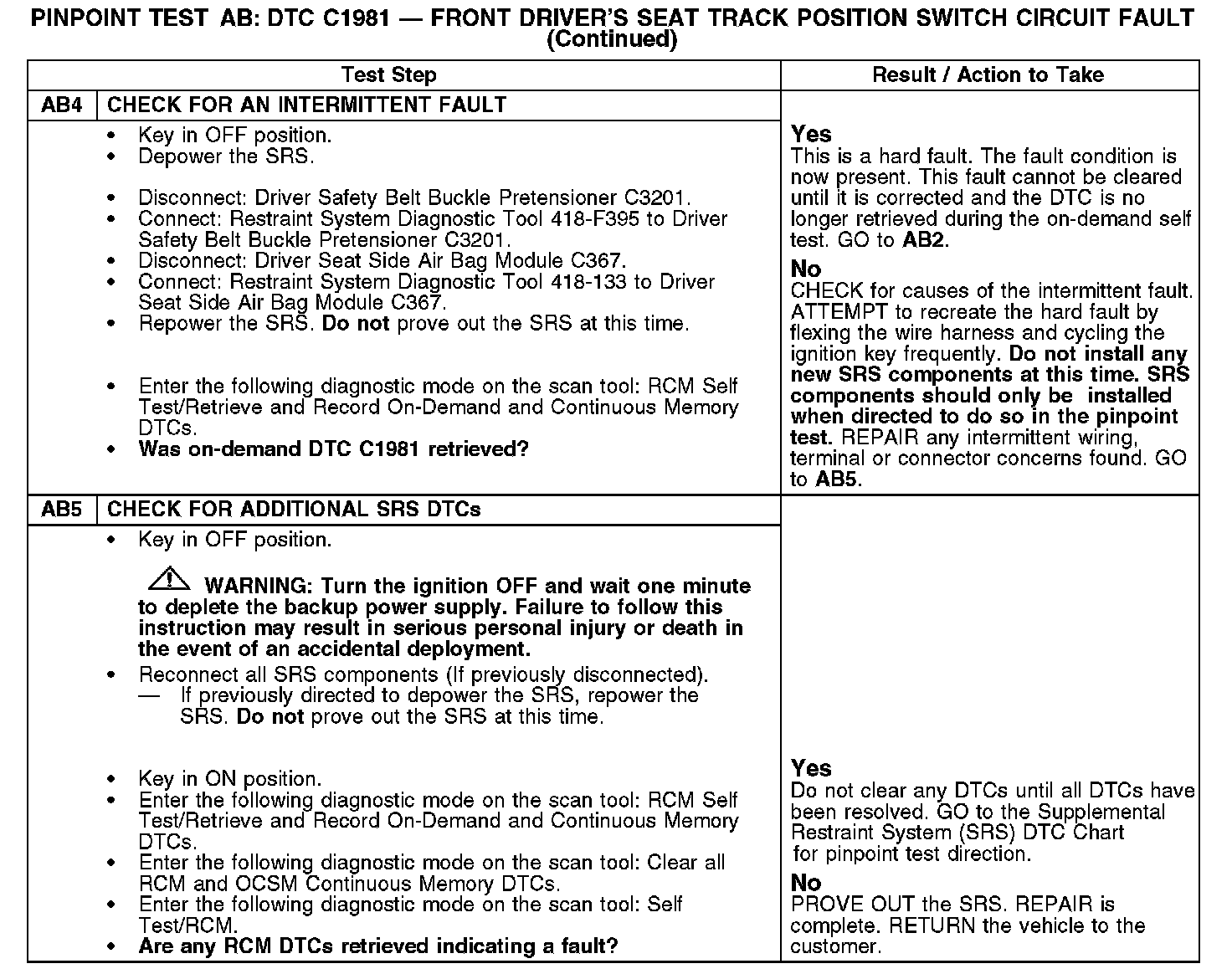

AB4-AB5:
