6R60 - Automatic Transaxle/Transmission
6R60 - Automatic Transaxle/Transmission
Transmission Connector Layouts

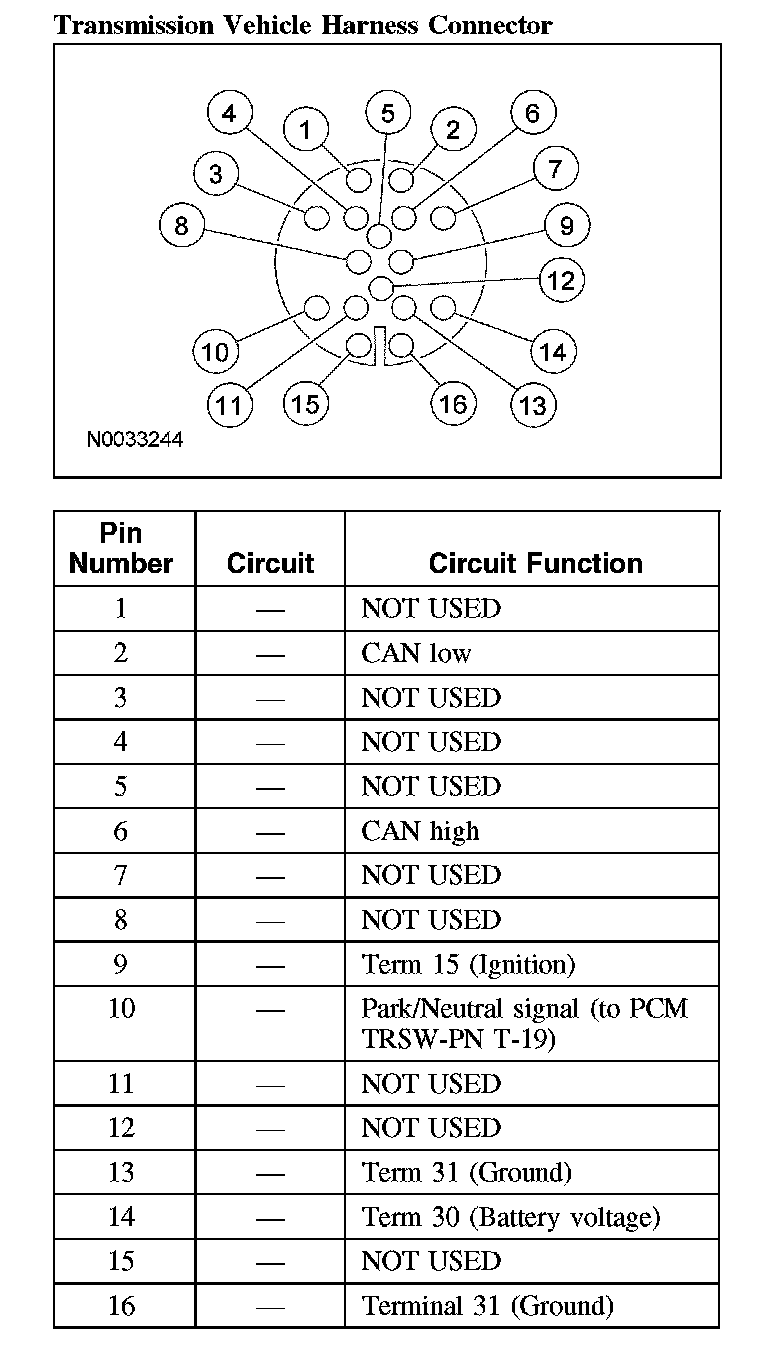

Transmission Vehicle Harness Connector
Transmission Vehicle Harness Connector:
