Brake Caliper Anchor Plate, Front

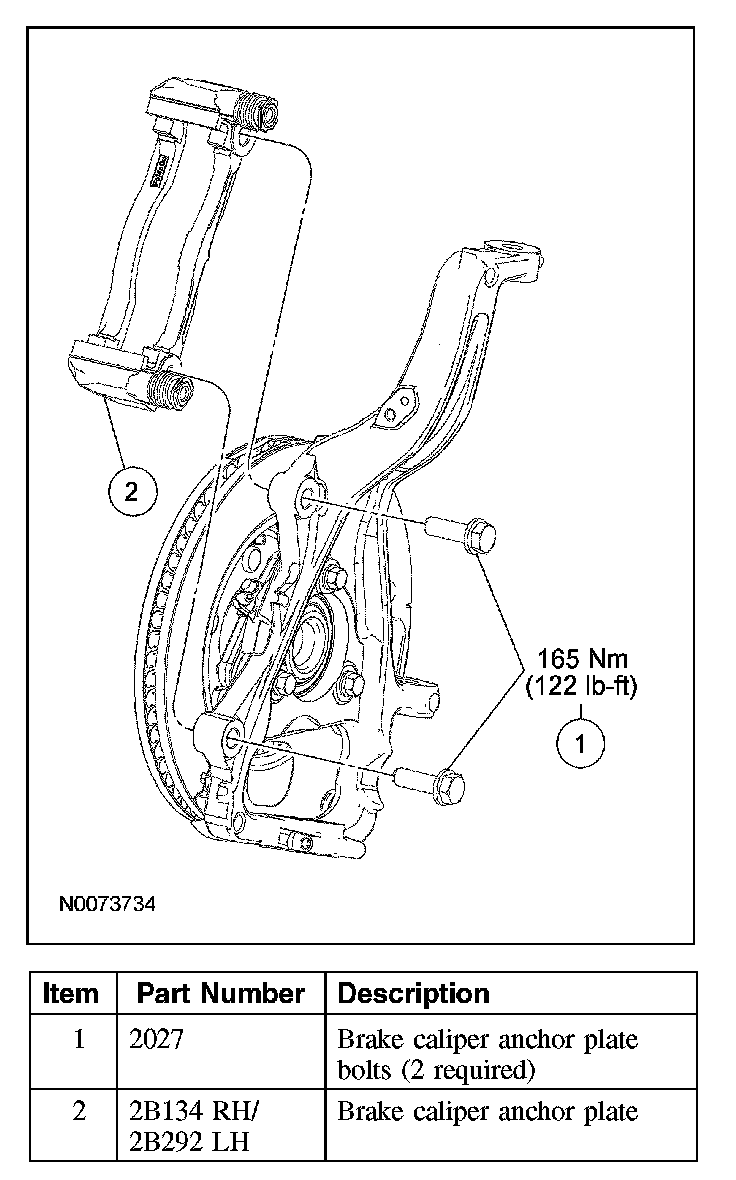

Brake Caliper Anchor Plate

Removal and Installation





1. Remove the brake pads.
2. Remove and discard the 2 brake caliper anchor plate bolts and remove the brake caliper anchor plate.
^ To install, tighten to 165 Nm (122 lb-ft).
3. To install, reverse the removal procedure.
