Drive Belt: Diagrams
Component Locations - 4.6L (3V)

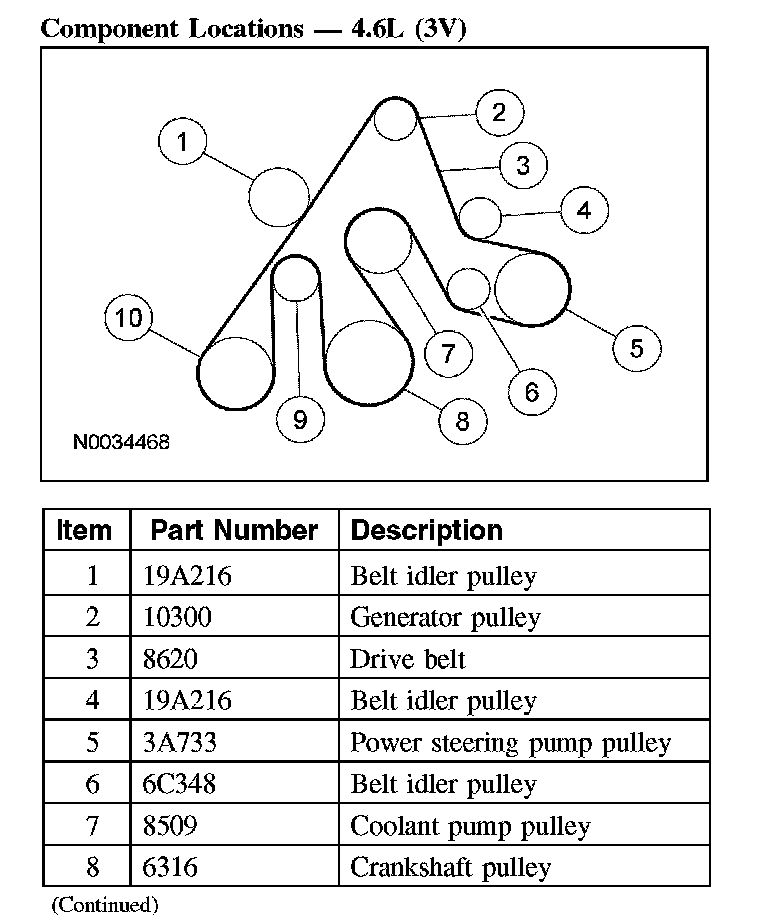

Component Locations - 4.6L (3V) (Part 1):

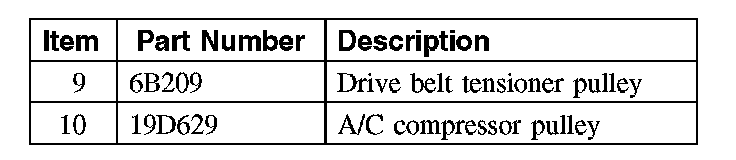

Component Locations - 4.6L (3V) (Part 2):
