Drive Belt: Service and Repair

Accessory Drive Belt - 4.6L (3V)

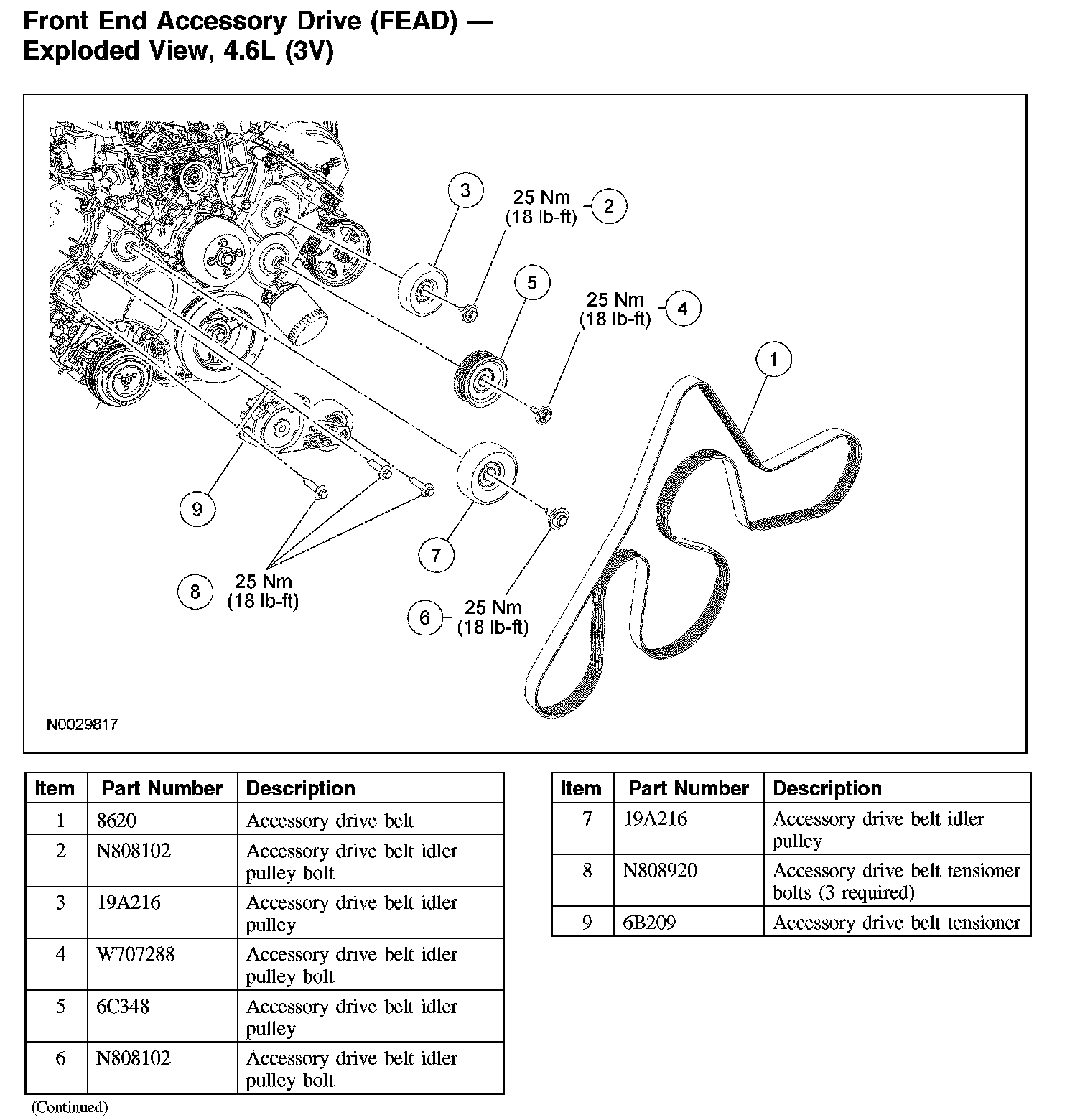

Front End Accessory Drive (FEAD) - Exploded View, 4.6L (3V):

Removal and Installation
1. Remove the air cleaner outlet pipe. For additional information, refer to Fuel Delivery and Air Induction.

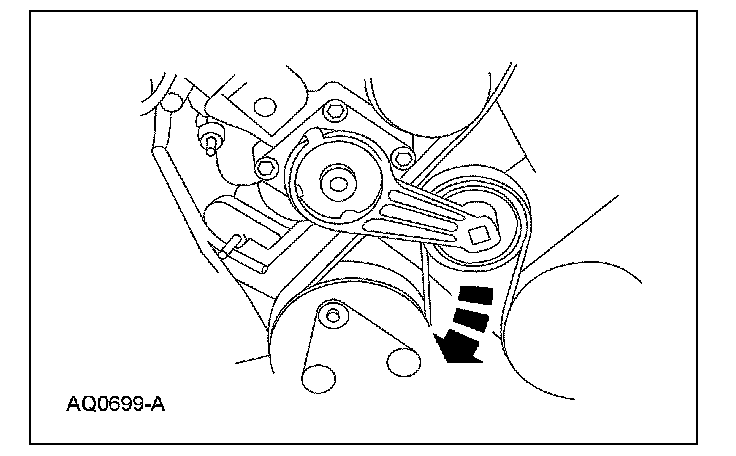

2. Rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt.

3. To install, reverse the removal procedure.
