Flex Plate: Service and Repair

Flexplate

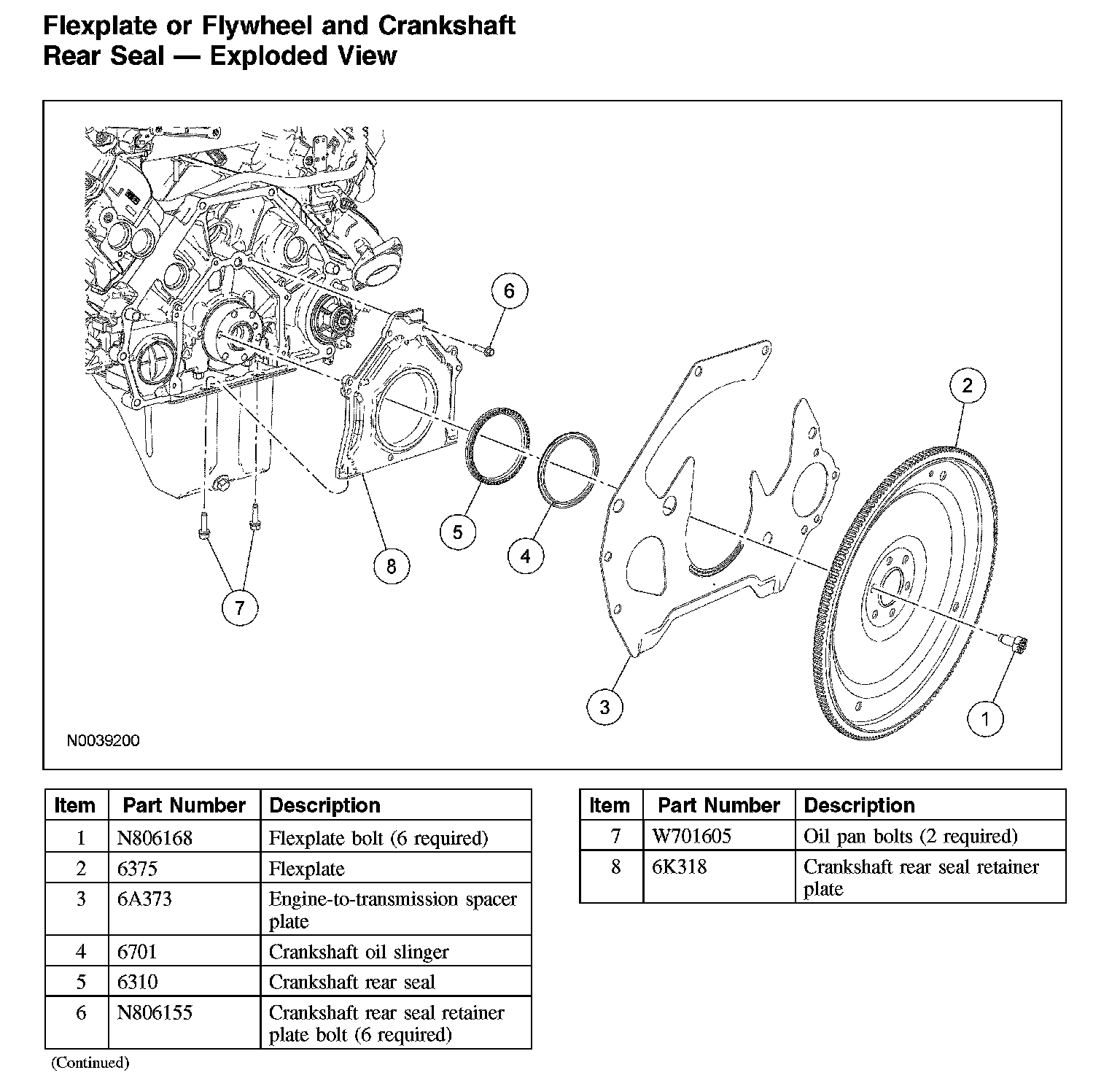

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View:

Removal and Installation
1. Remove the transmission.
2. Remove the 6 bolts and the flexplate.
^ To install, tighten to 80 Nm (59 lb-ft) in the sequence shown.

3. To install, reverse the removal procedure.
