Cowl Moulding / Trim: Service and Repair

COWL PANEL GRILLE

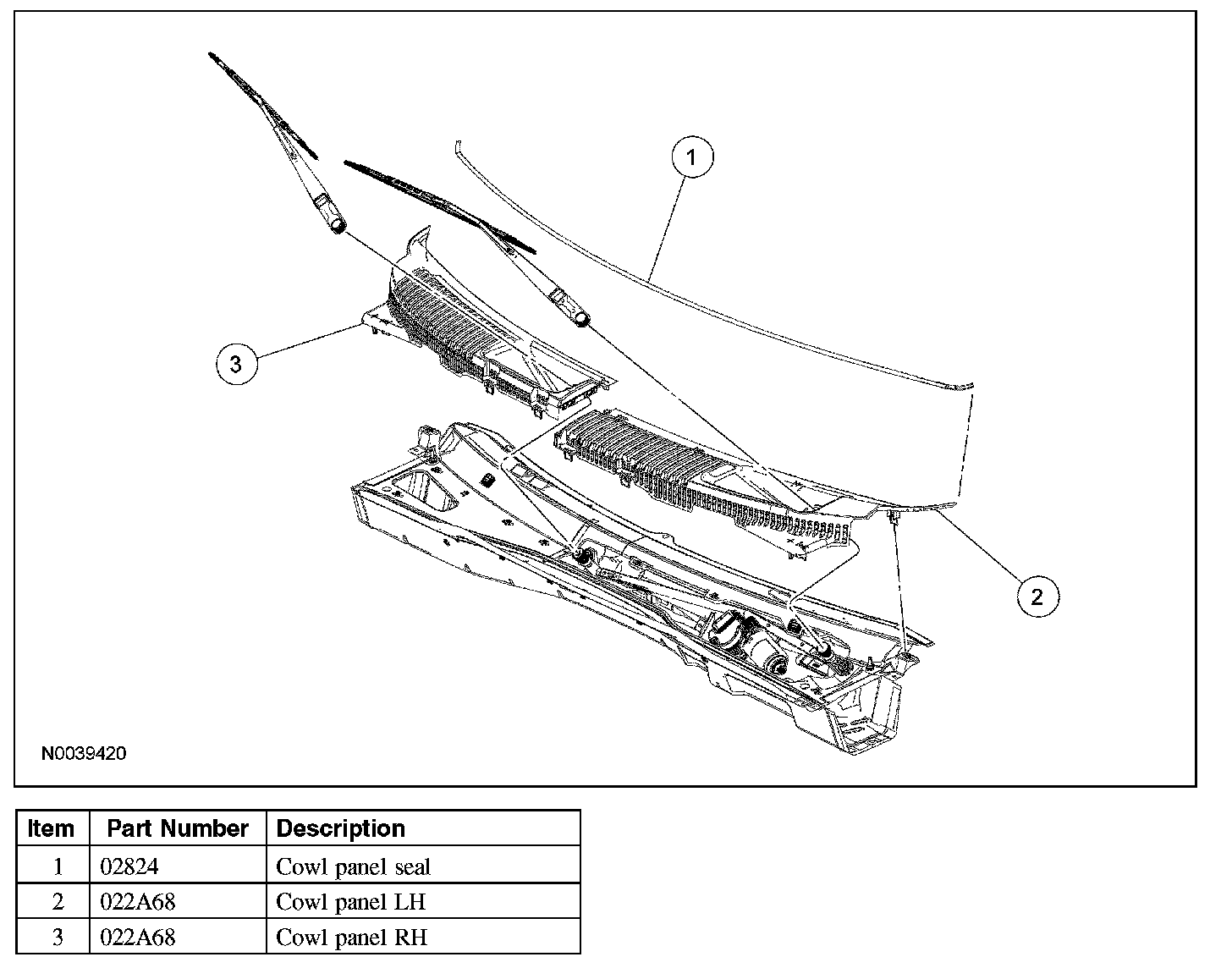

Exploded View

Explorer/Explorer Sport Trac:

Mountaineer:

Removal and Installation
1. Remove the wiper pivot arms.

CAUTION: To avoid breaking the retaining clips on the cowl panel, do not pull up on the rear of the cowl panel.

2. Pry up on the front of the cowl panel to release it from the retaining clips.
3. Remove the cowl panel grille.
4. Separate the left cowl panel from the right cowl panel by releasing the retaining clips.
5. To install, reverse the removal procedure.
